Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP trim bezel.
  2. Pull out the lamp switch, 4WD shift buttons, cargo lamp and air deflector louver assembly in order to disconnect the electrical connectors.

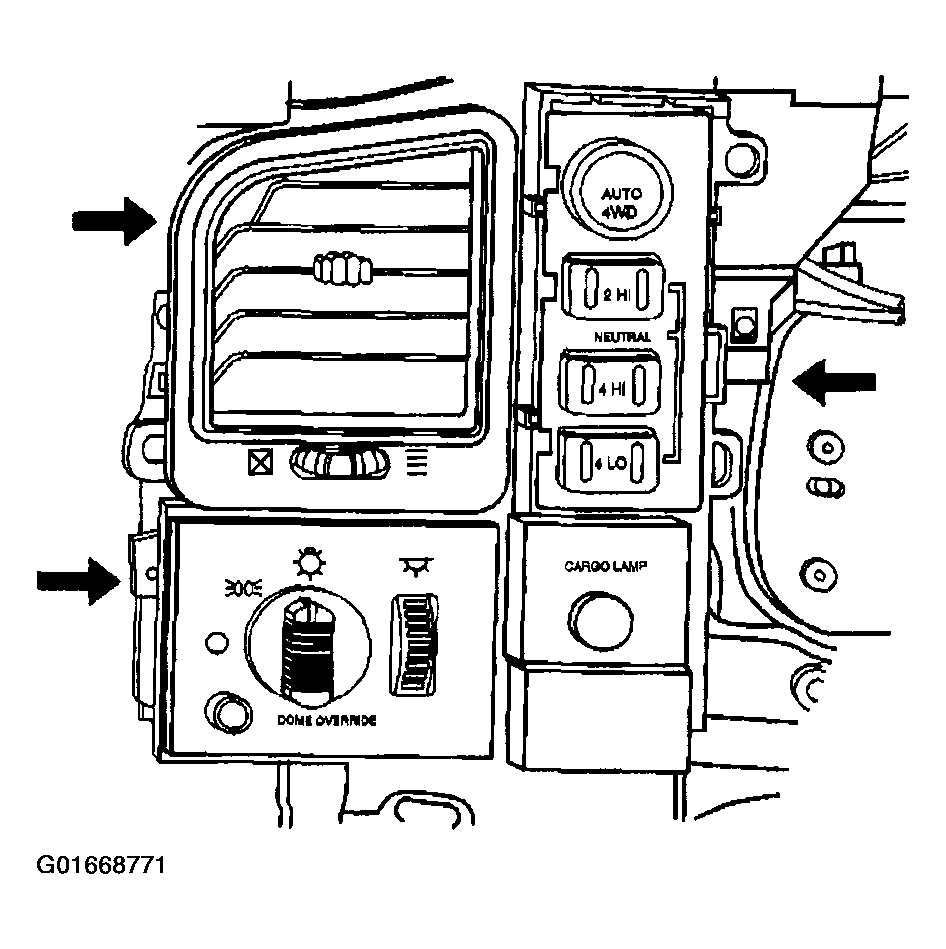

    3. Fig 1: Lamp Switch
    G01668771Courtesy of GENERAL MOTORS CORP.
  3. Disconnect all the electrical connectors from the lamp switch, cargo lamp and 4WD shift buttons assembly.
  4. Remove the lamp switch, 4WD shift buttons, cargo lamp and air deflector louver assembly from the vehicle.
  5. Remove the electrical harness retainer from the IP support beam.
  6. Disconnect the 2 electrical connectors from the transfer case shift control module.
  7. Move the electrical harness to the left side in order to make room to turn the transfer case shift control module.
  8. Rotate the transfer case shift control module about 45 degrees counter clockwise while pulling out at the same time until the module is approximately 90 degrees from the original position.
  9. Pull out the module from the vehicle.
    Fig 2: Transfer Case Shift Control Module
    G01668773Courtesy of GENERAL MOTORS CORP.
