Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
  3. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT .
  4. Remove the motor/encoder electrical connectors.

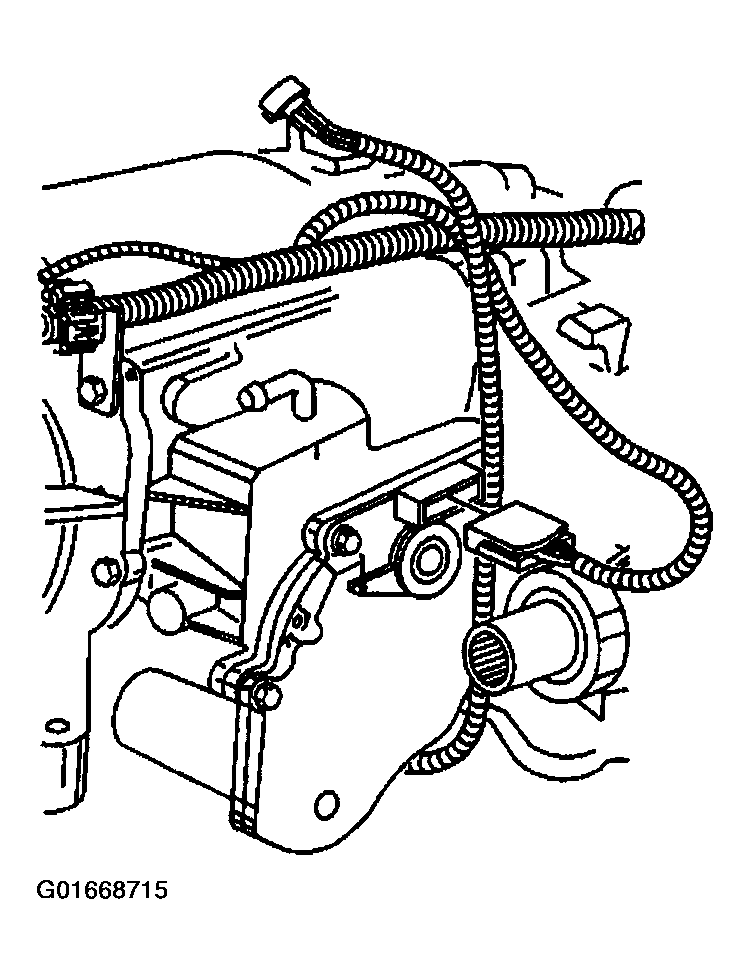

    Fig 1: Locating Motor/Encoder Electrical Connectors
    G01668715Courtesy of GENERAL MOTORS CORP.
  5. Remove the motor/encoder mounting bolts.
  6. Remove the motor/encoder assembly.
  7. Remove the motor/encoder gasket.

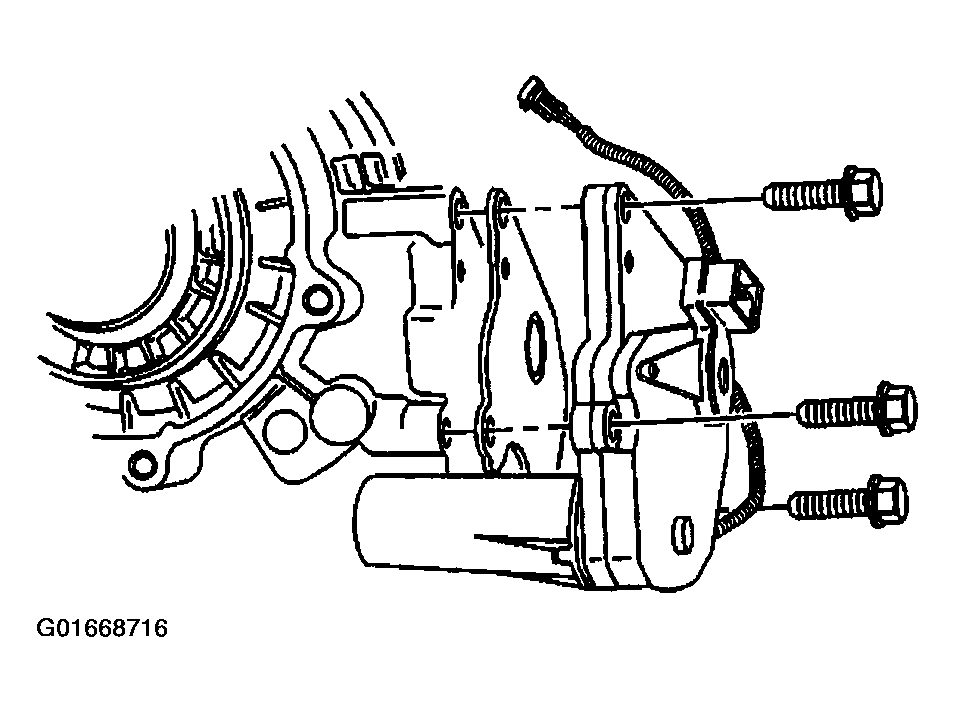

    Fig 2: Locating Motor/Encoder
    G01668716Courtesy of GENERAL MOTORS CORP.
