Transfer Case Control Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

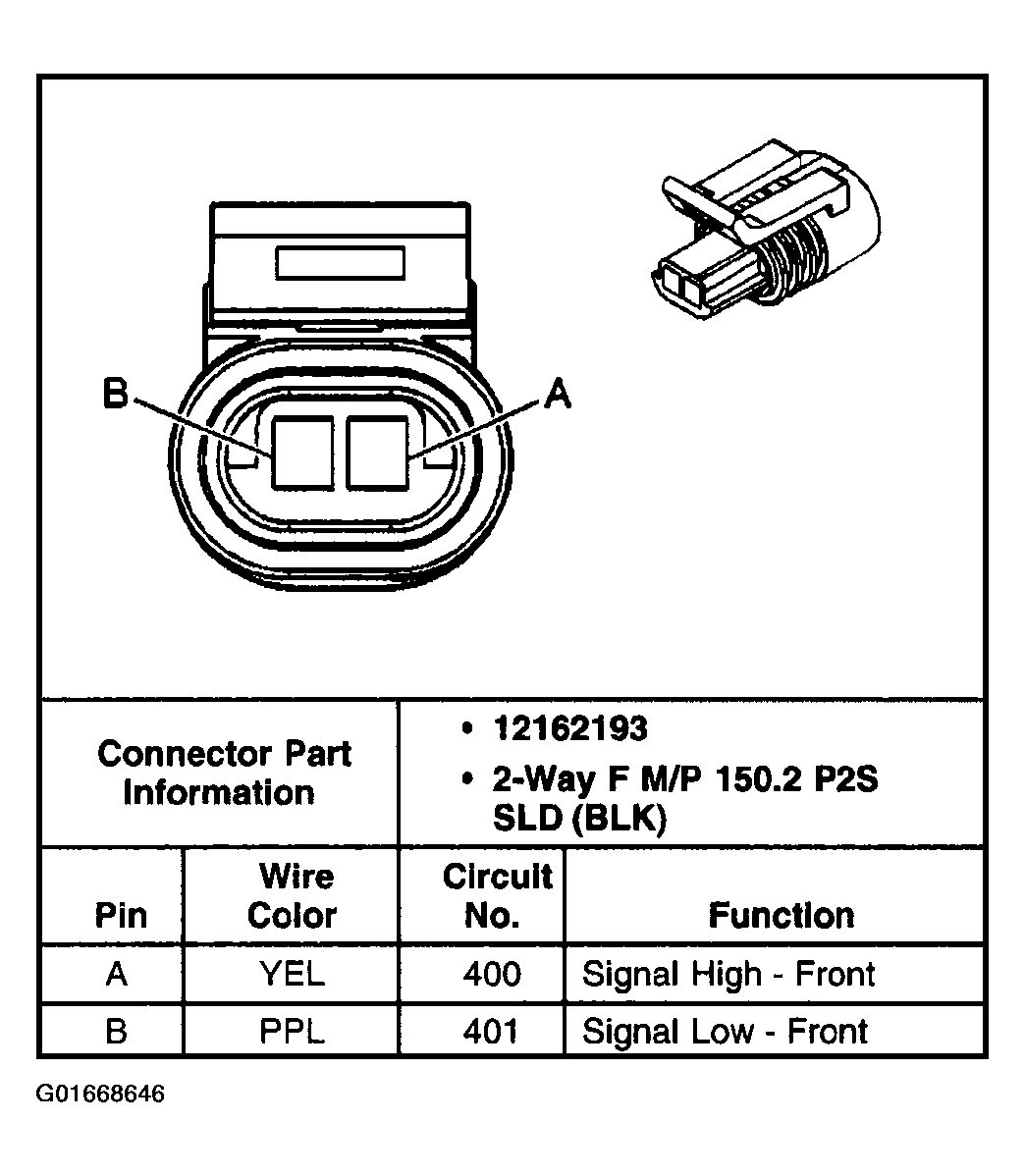

Fig 1: Identifying Propshaft Speed Sensor - Front Connector Terminals

G01668646

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Propshaft Speed Sensor - Rear Connector Terminals

G01668647

Courtesy of GENERAL MOTORS CORP.

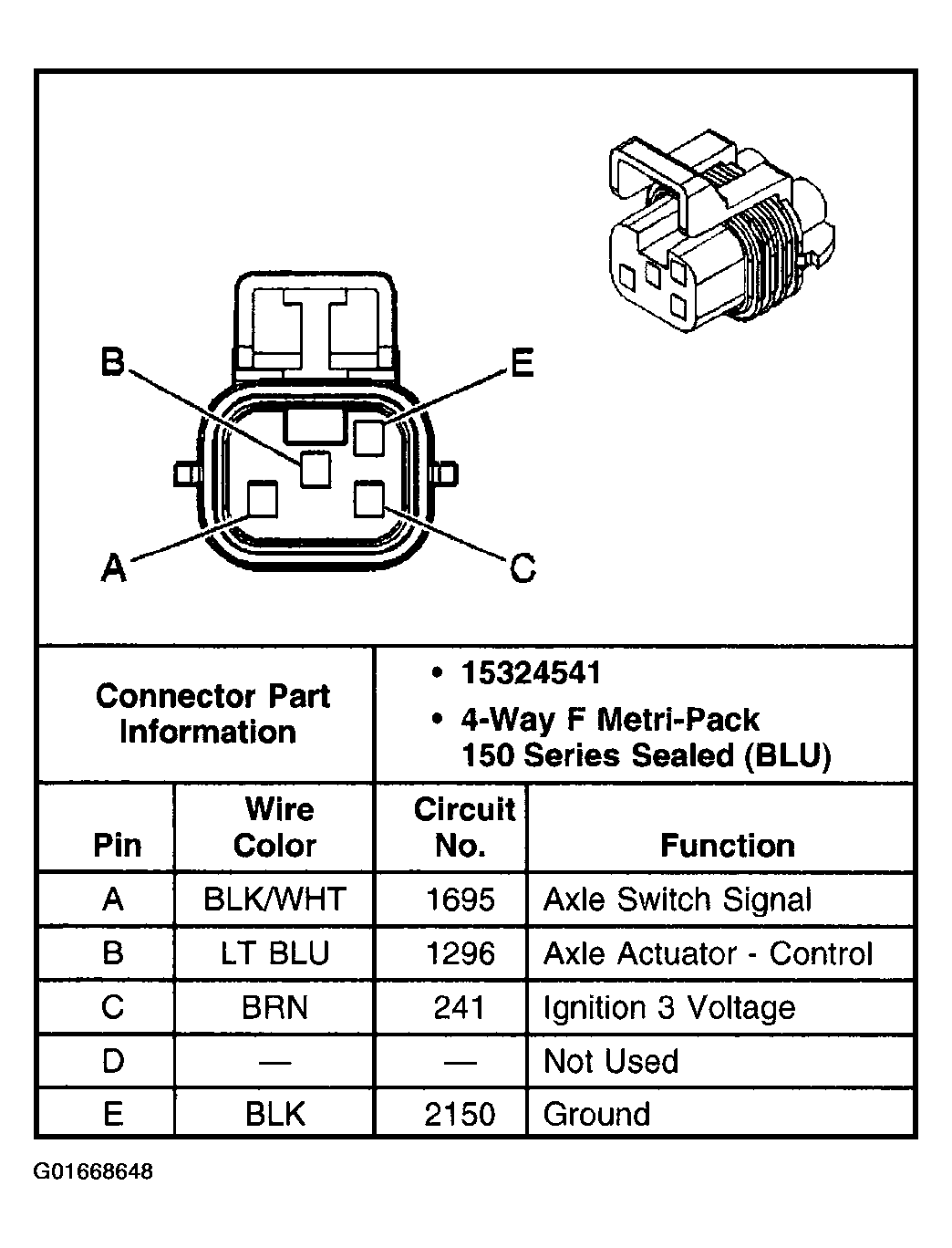

Fig 3: Identifying Front Axle Actuator Connector Terminals

G01668648

Courtesy of GENERAL MOTORS CORP.

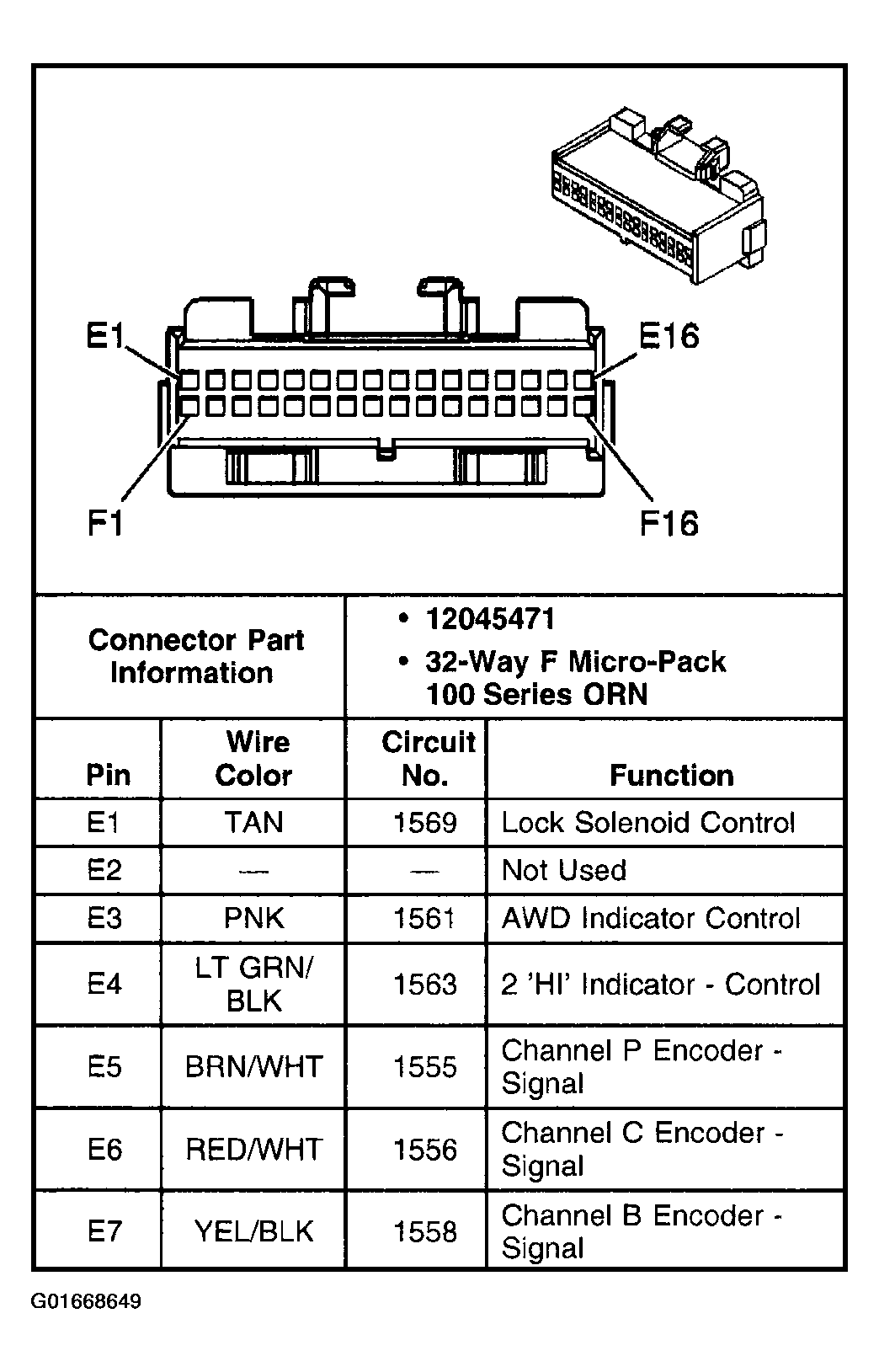

Fig 4: Identifying Transfer Case Shift Control Module - C1 Connector Terminals (1 Of 2)

G01668649

Courtesy of GENERAL MOTORS CORP.

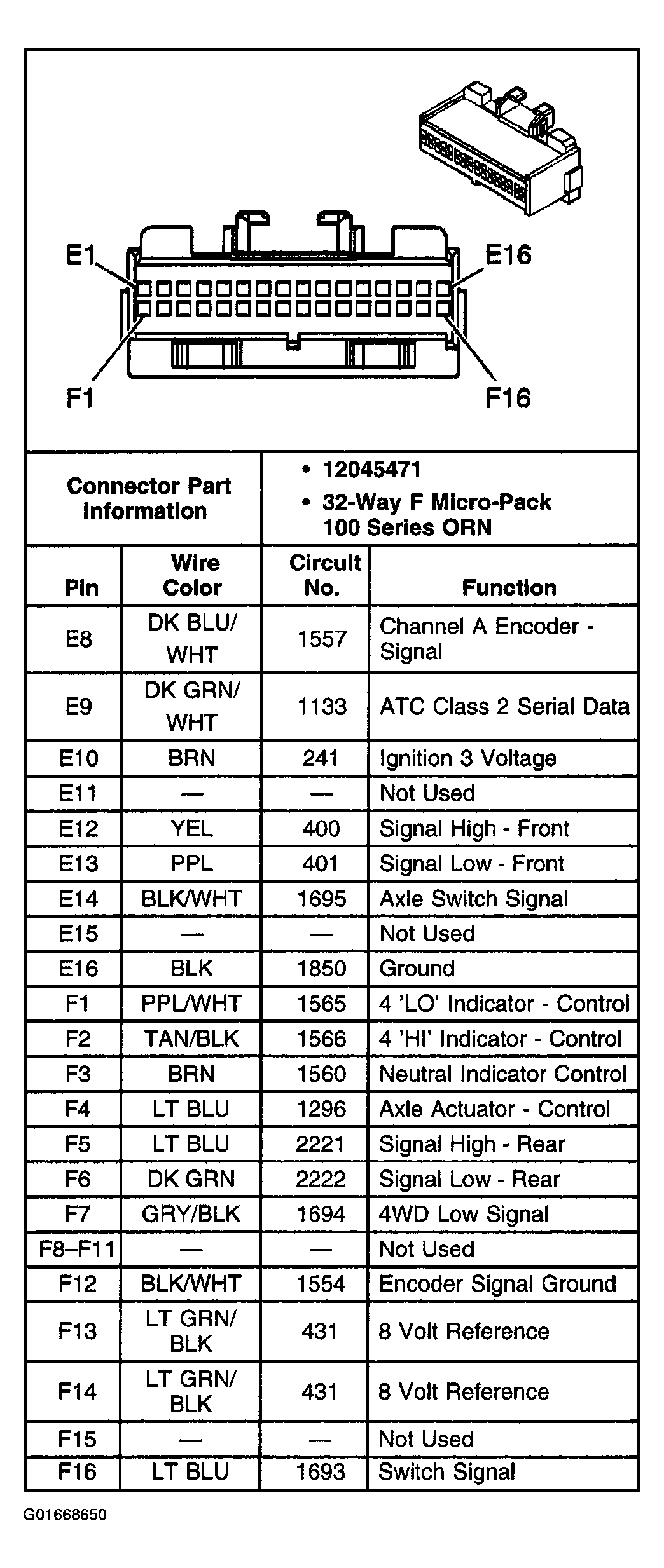

Fig 5: Identifying Transfer Case Shift Control Module - C1 Connector Terminals (2 Of 2)

G01668650

Courtesy of GENERAL MOTORS CORP.

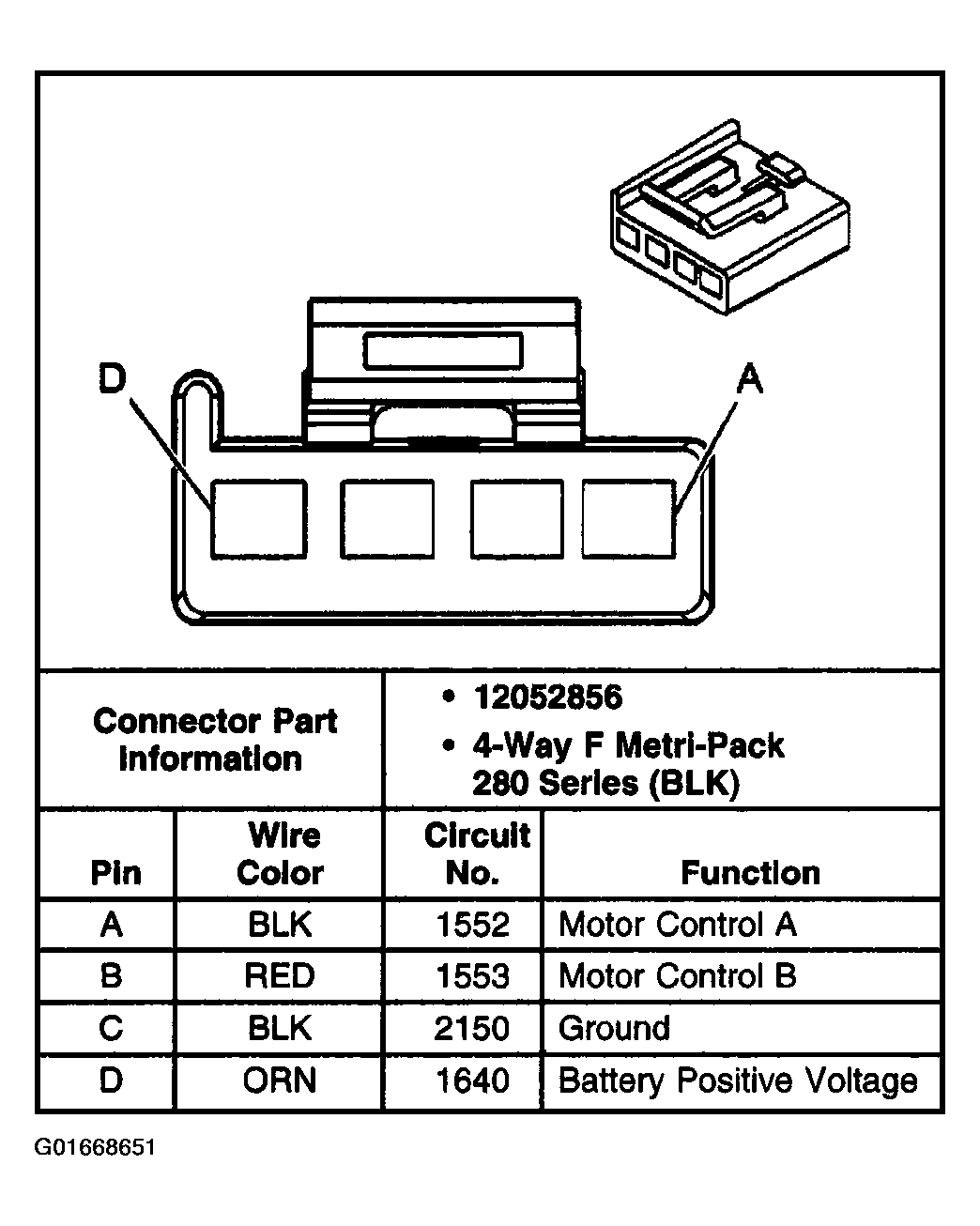

Fig 6: Identifying Transfer Case Shift Control Module - C2 Connector Terminals

G01668651

Courtesy of GENERAL MOTORS CORP.

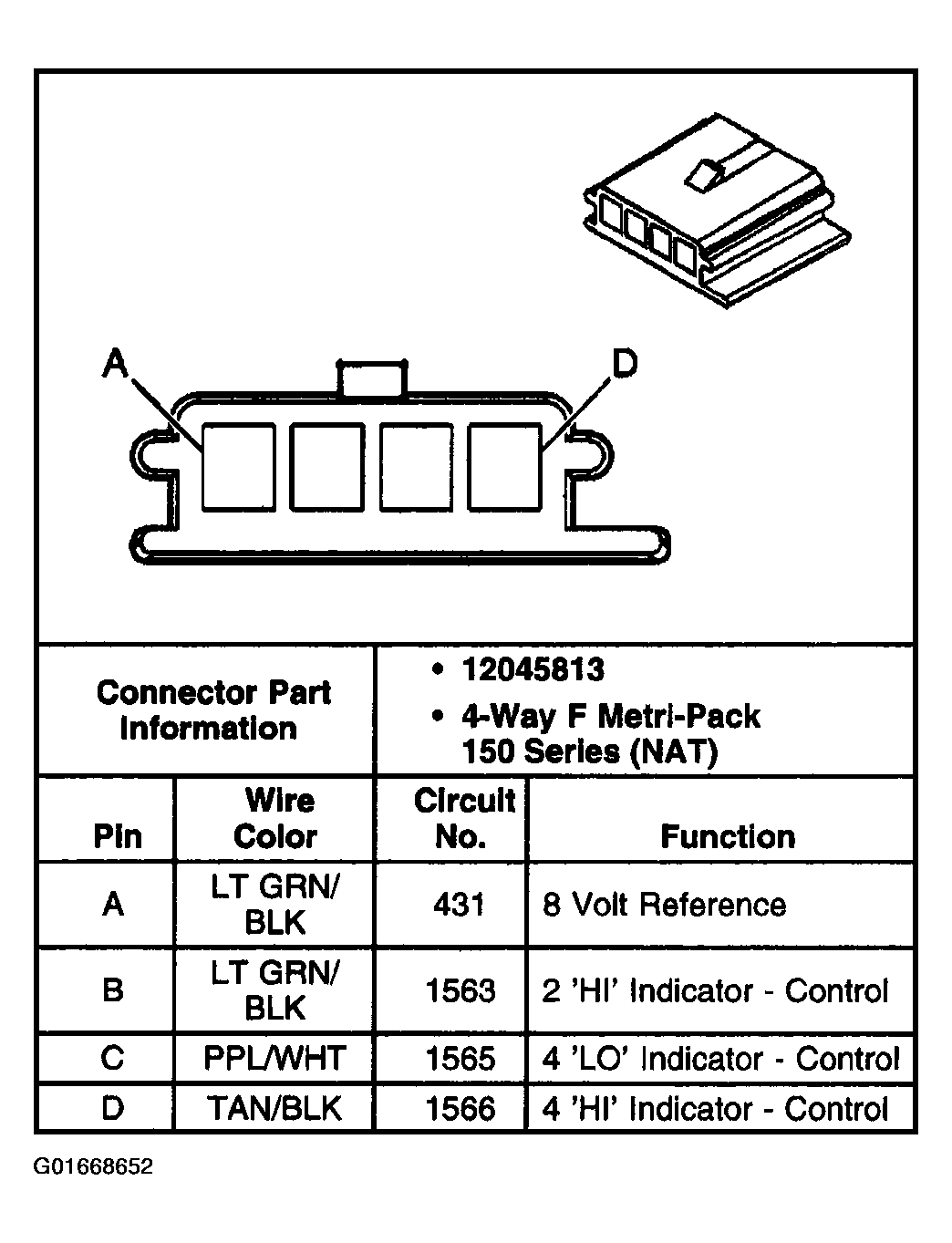

Fig 7: Identifying Transfer Case Shift Control Switch - C1 Connector Terminals

G01668652

Courtesy of GENERAL MOTORS CORP.

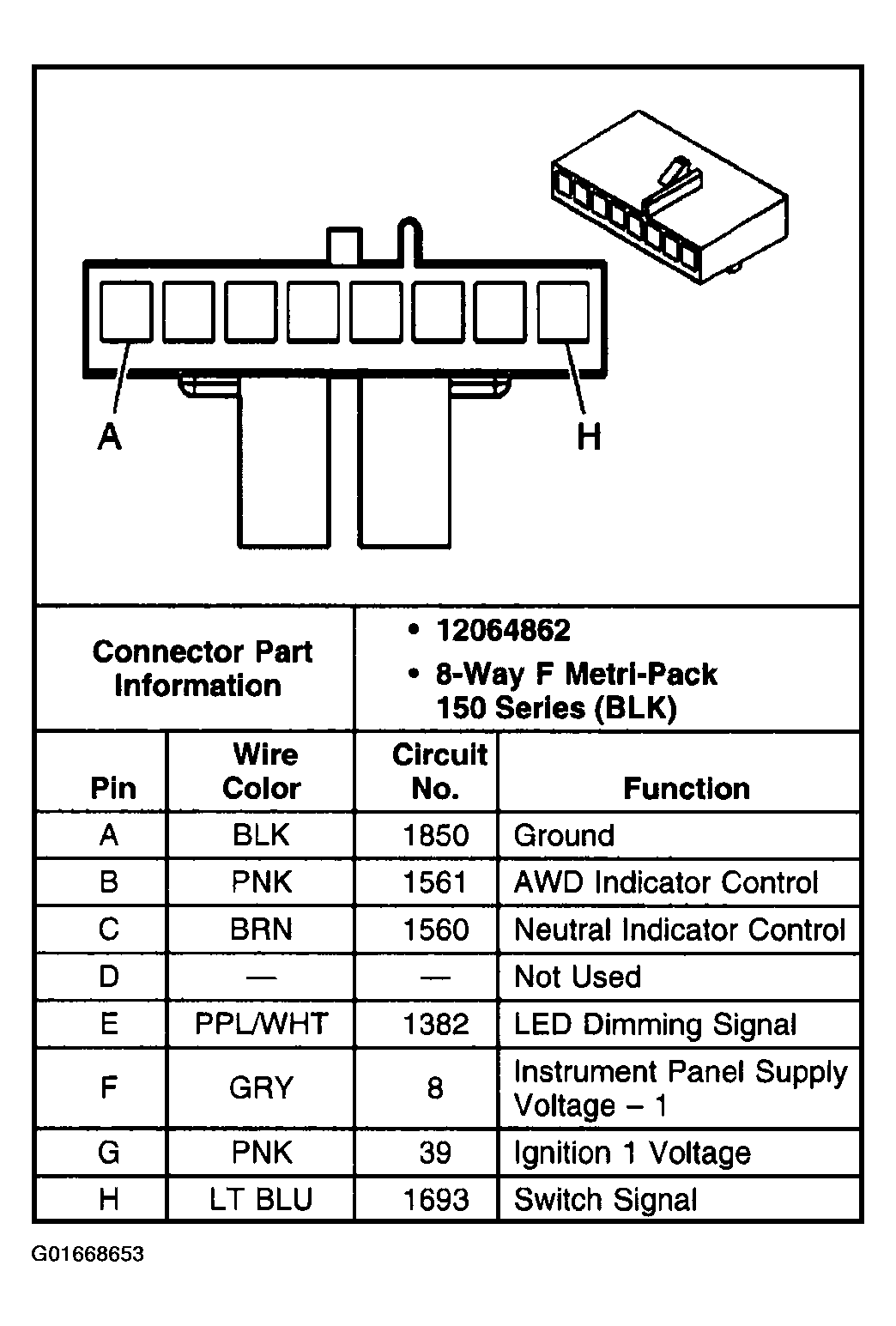

Fig 8: Identifying Transfer Case Shift Control Switch - C2 Connector Terminals

G01668653

Courtesy of GENERAL MOTORS CORP.

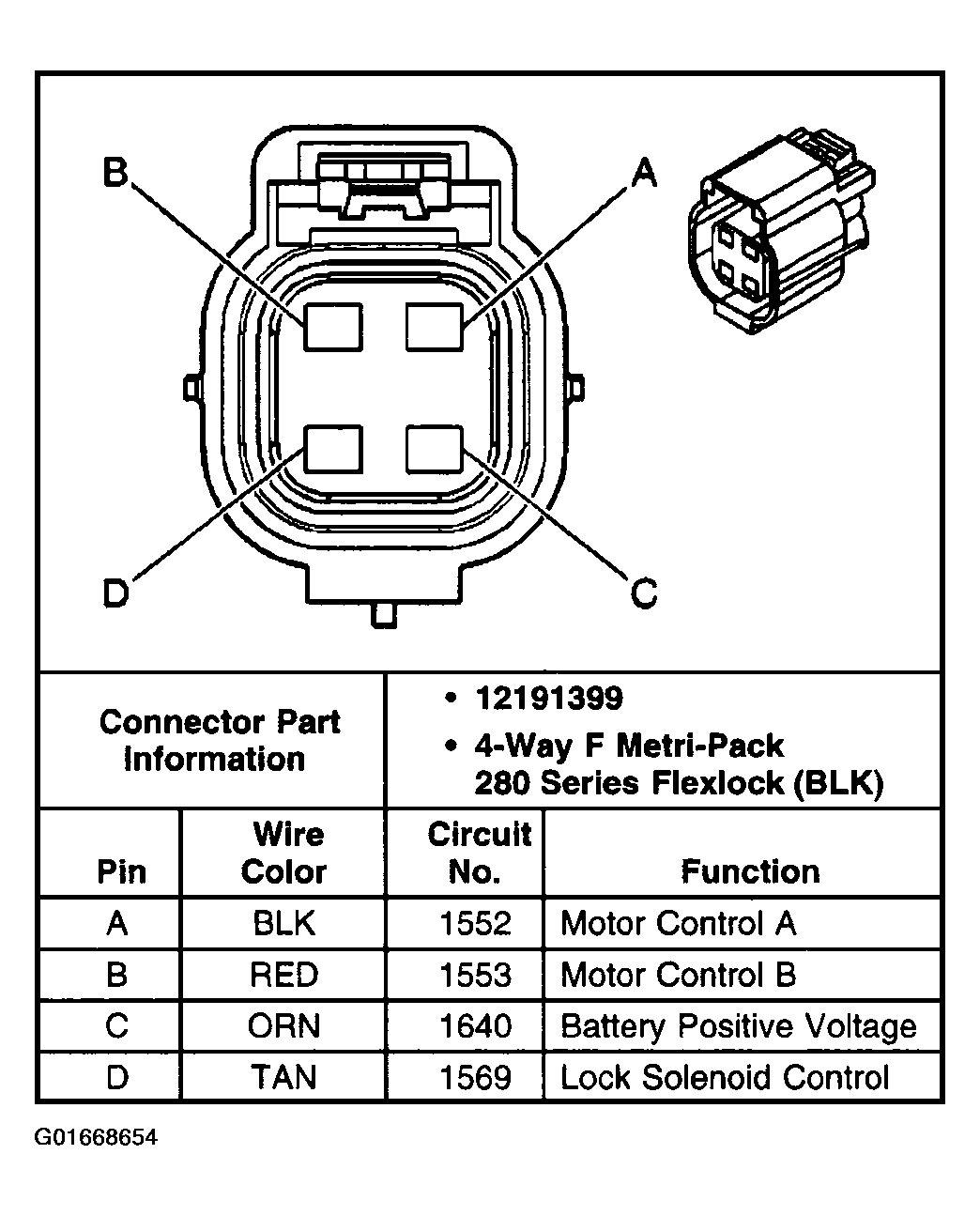

Fig 9: Identifying Transfer Case - C1 (Encoder Motor) Connector Terminals

G01668654

Courtesy of GENERAL MOTORS CORP.

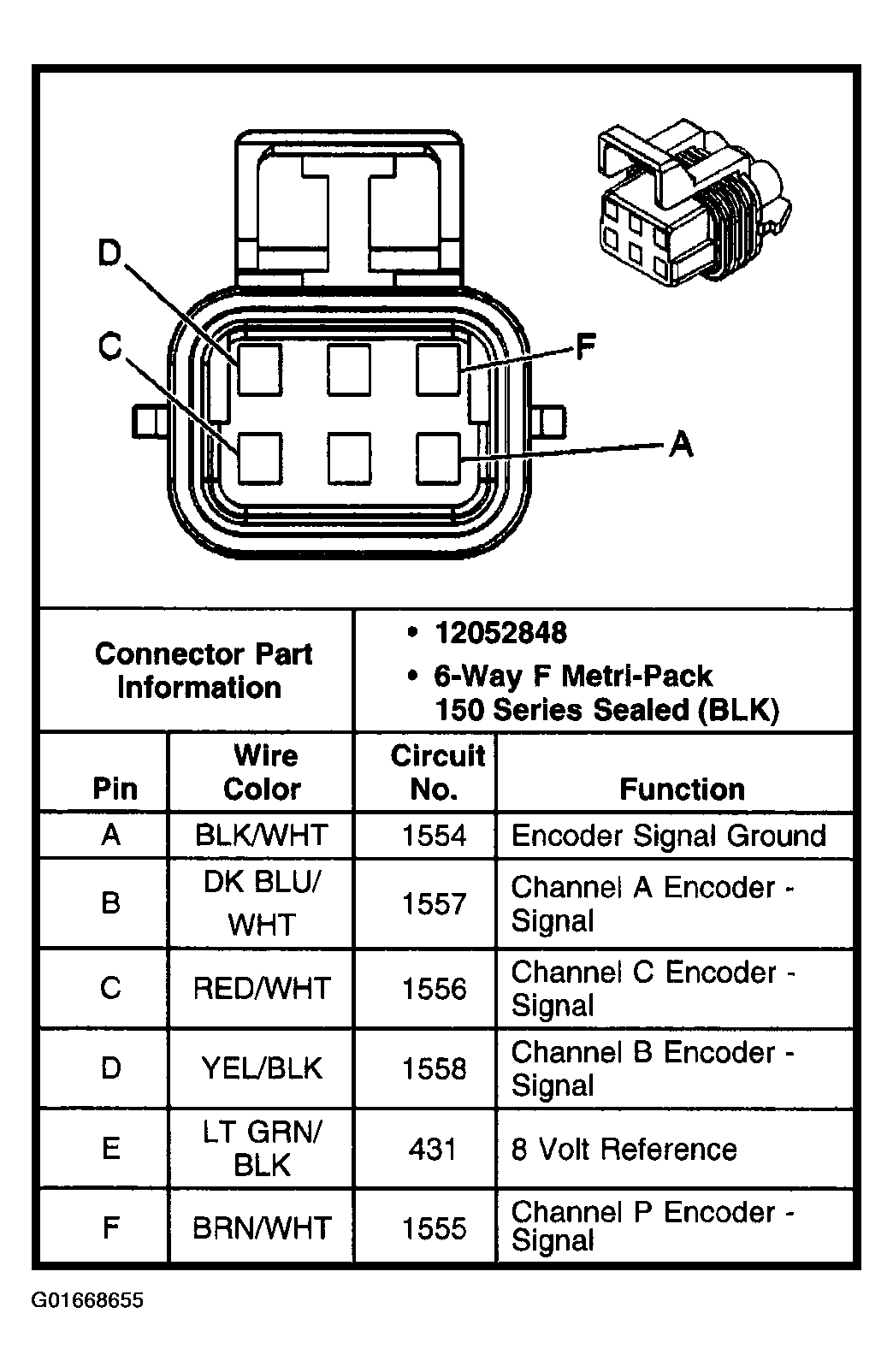

Fig 10: Identifying Transfer Case - C2 (Encoder Motor) Connector Terminals

G01668655

Courtesy of GENERAL MOTORS CORP.
