Removal Procedure

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, 2002 Chevrolet Cab & Chassis Silverado, and 2001 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the propeller shaft. Refer to Propeller Shaft Replacement - Two Piece .
  3. Remove the center bearing by doing the following:

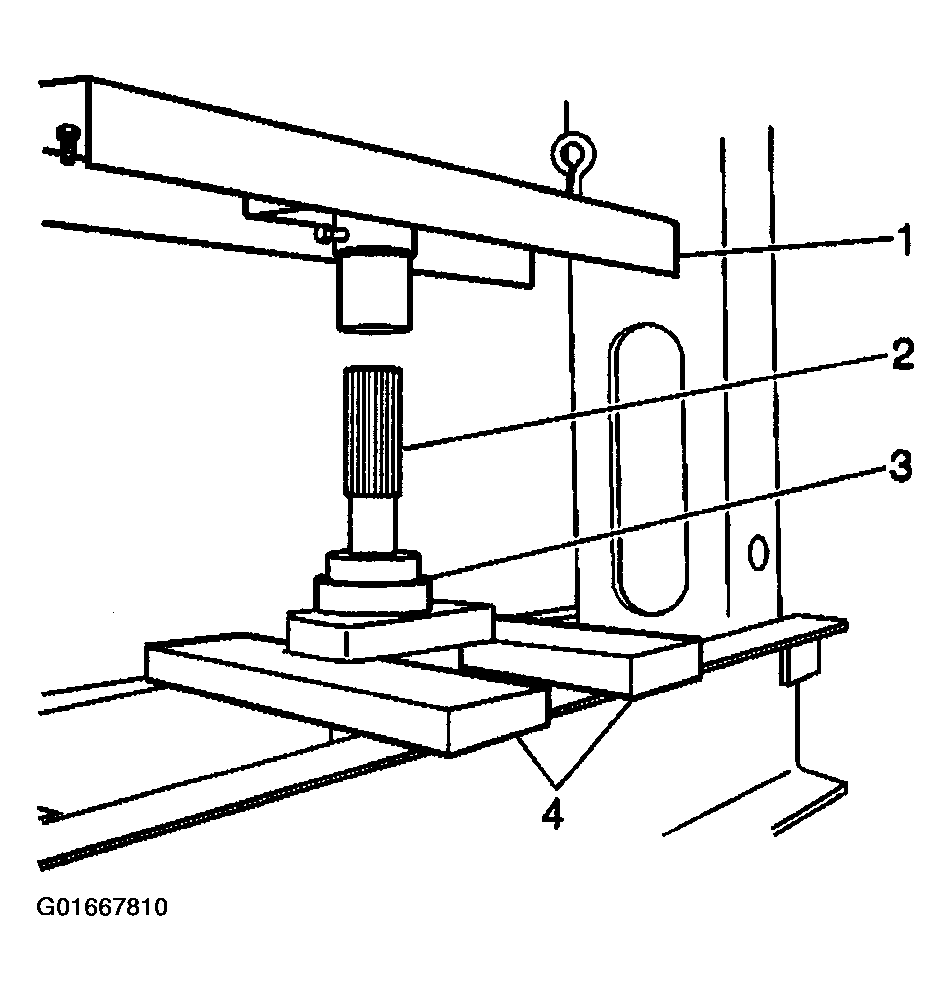

    1. 3.1 Stand the propeller shaft (2) on end in the press (1) with the center bearing (3) supported by the press bars (4).
    2. 3.2 Press the propeller shaft (2) down and off the center bearing (3).
    4. Fig 1: Pressing Propeller Shaft Off The Center Bearing
    G01667810Courtesy of GENERAL MOTORS CORP.
