Driveline Disassembled Views

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, 2002 Chevrolet Cab & Chassis Silverado, and 2001 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

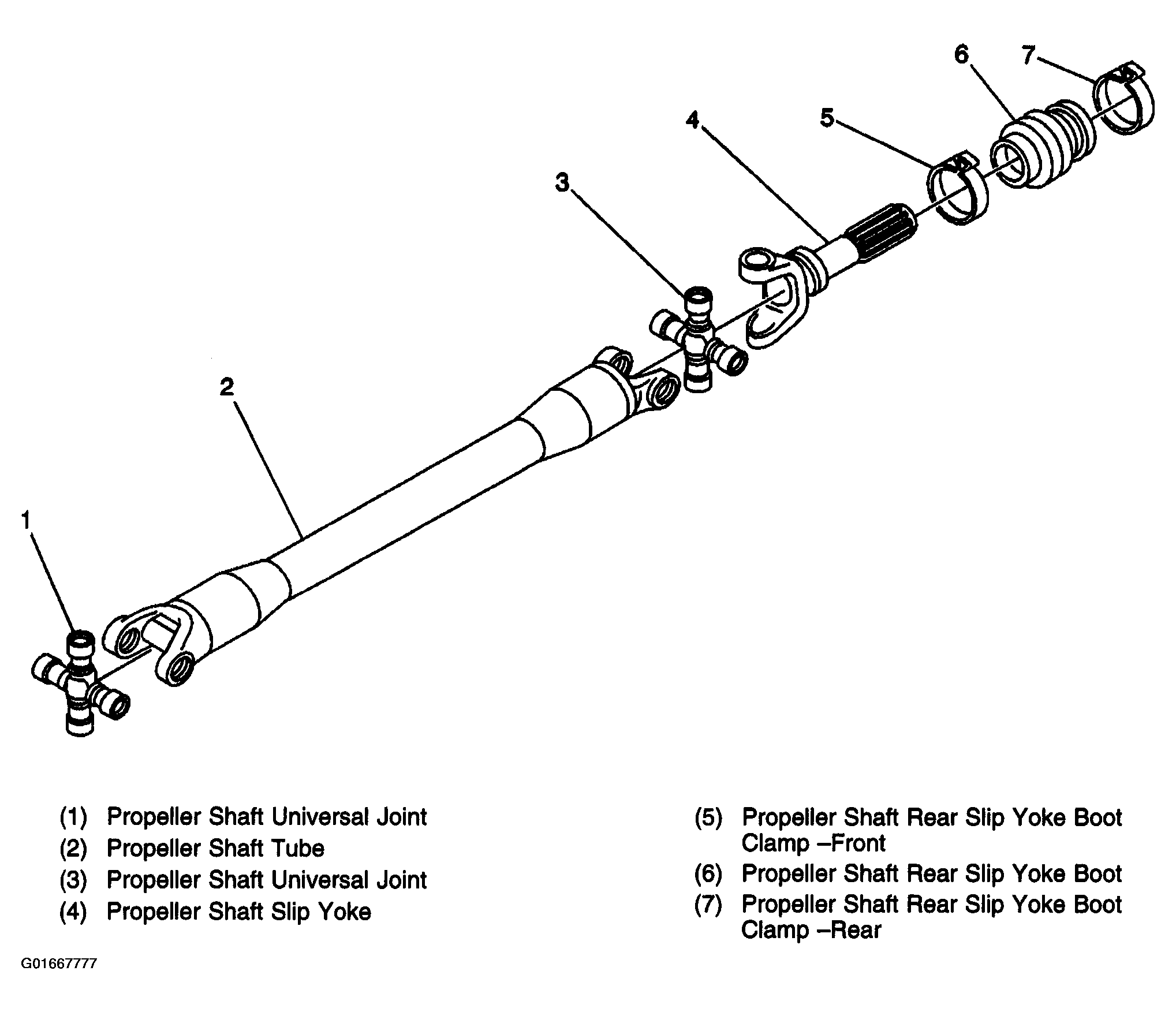

Fig 1: Front Propeller Shaft Components
G01667777Courtesy of GENERAL MOTORS CORP.

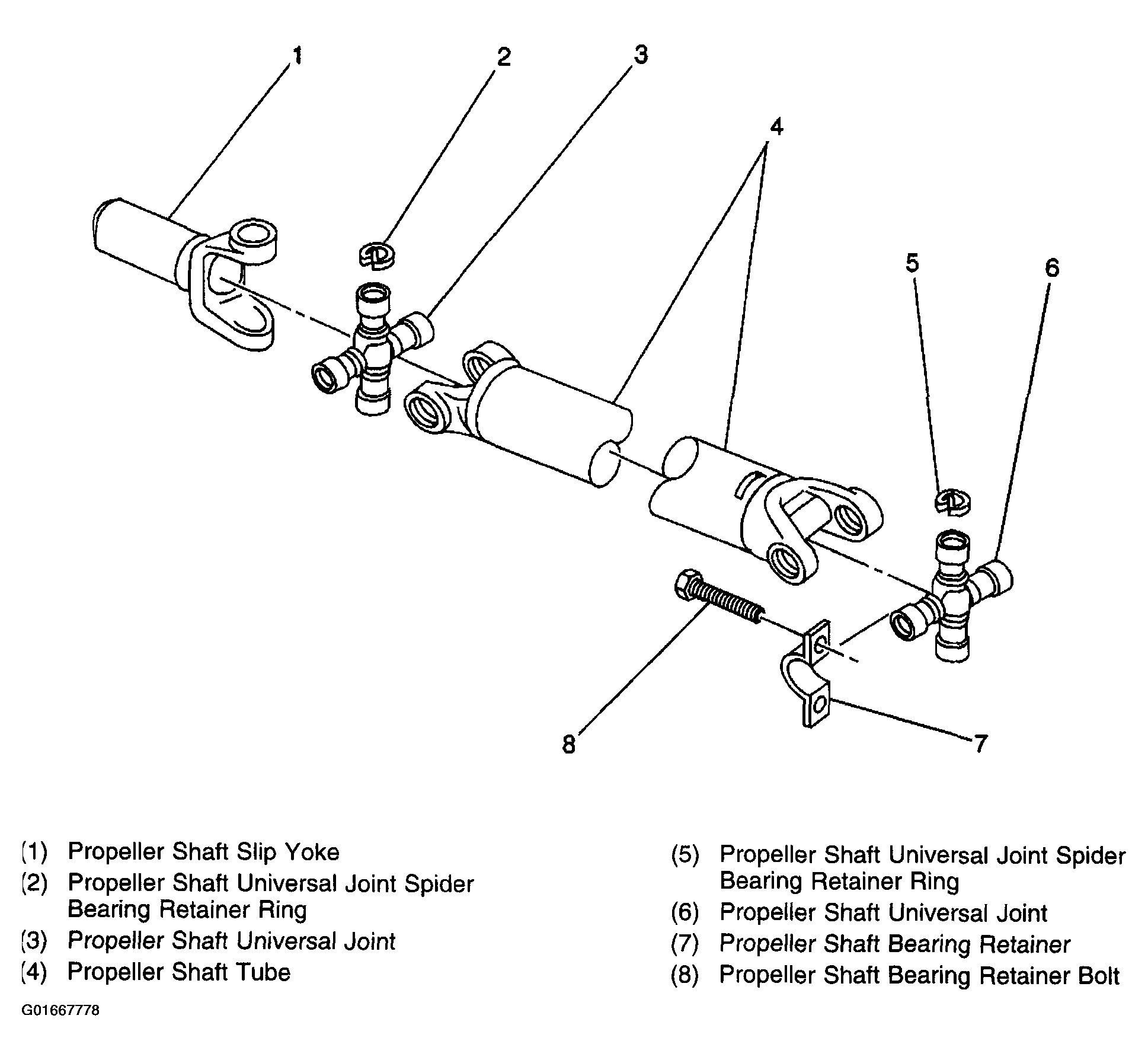

Fig 2: One-Piece Propeller Shaft Components
G01667778Courtesy of GENERAL MOTORS CORP.

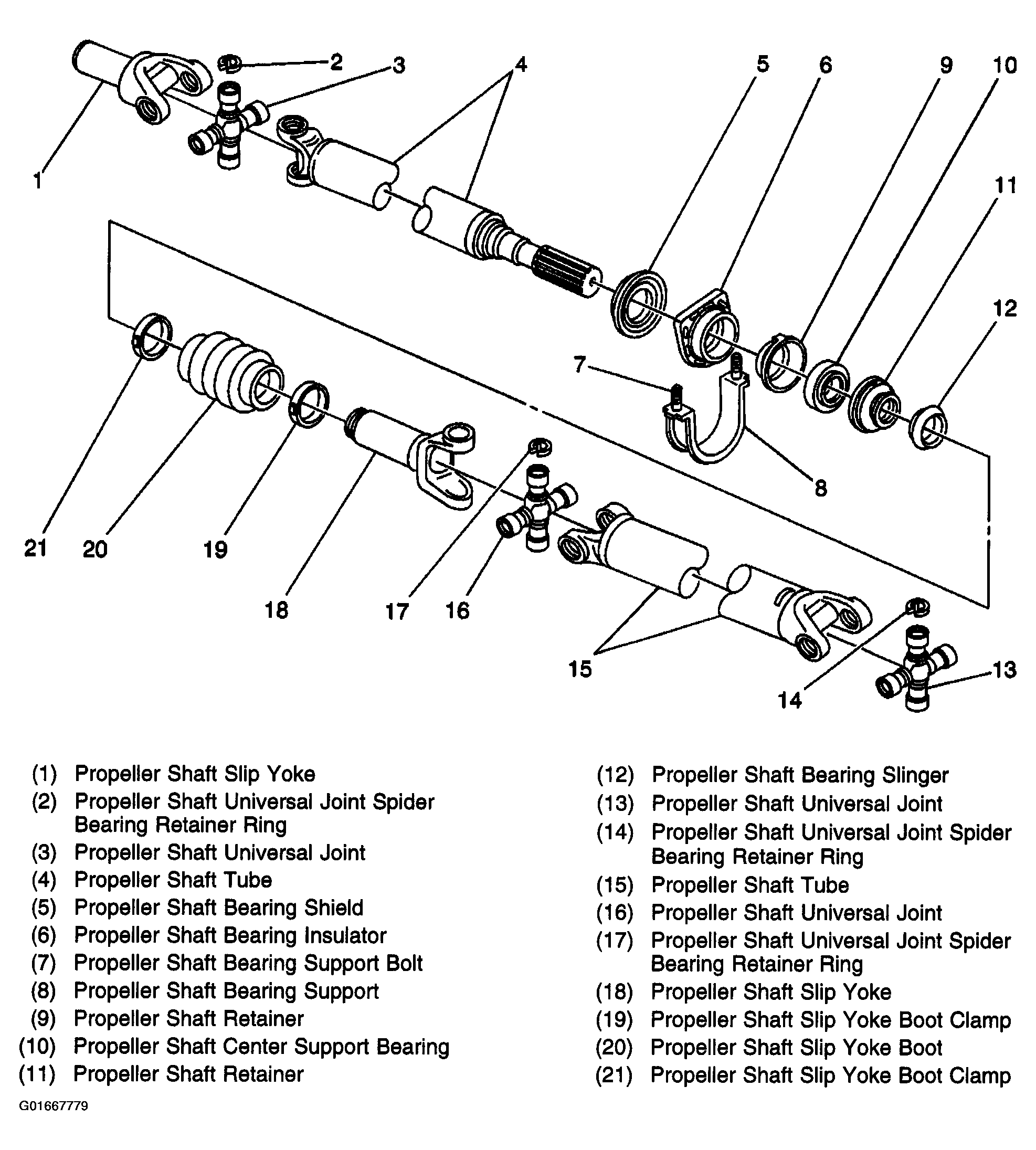

Fig 3: Two-Piece Propeller Shaft Components
G01667779Courtesy of GENERAL MOTORS CORP.
