Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side end panel.
  2. Remove the knee bolster.
  3. Disconnect all the wiring connectors from the fuse block.
  4. Remove all the fuses.
  5. Remove the turn signal relay from the back of the fuse block.
  6. From behind the fuse block, remove the retaining bolt.

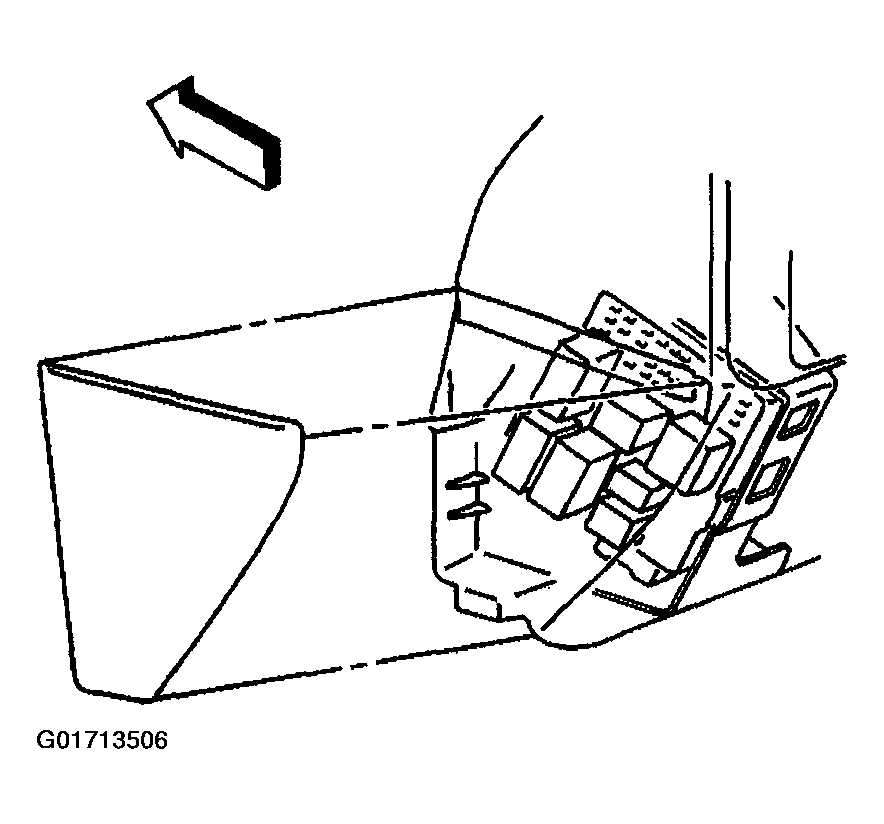

    Fig 1: Instrument Panel Electrical Center (Left Side)
    G01713506Courtesy of GENERAL MOTORS CORP.
  7. Insert a screw driver between the fuse block and the wire harness block to separate.
  8. Push on the retainers in order to remove the fuse block.
  9. Remove the fuse block from the vehicle.
