Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover retaining nut.
  2. Remove the cover by pushing in the tabs.
  3. Remove the harness from the front of the junction block.

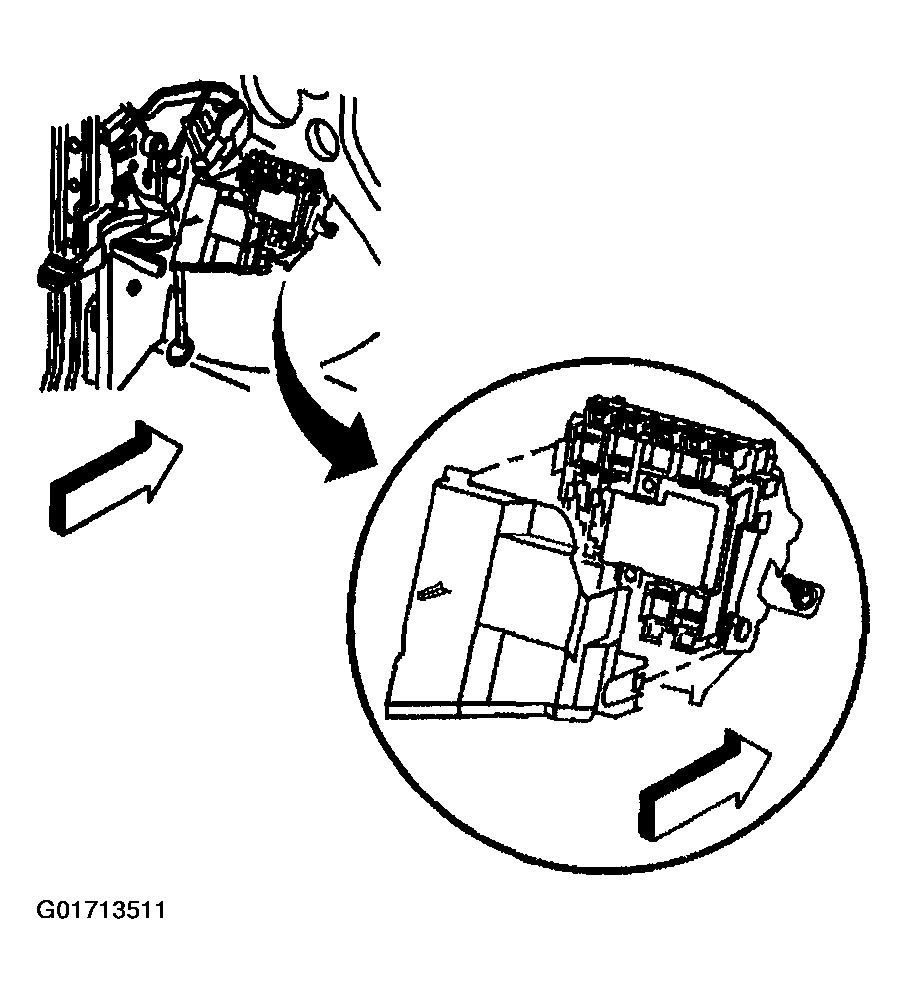

    Fig 1: Junction Block
    G01713511Courtesy of GENERAL MOTORS CORP.
  4. Remove the junction block from the bracket by pressing to release the tabs.
  5. Remove the junction block in order to gain access to the rear of the block to remove the retaining bolts.
  6. Remove the retaining bolts.
  7. Separate the wire harness block from the junction block by inserting a screw driver in between.
  8. Remove the junction block from the vehicle.

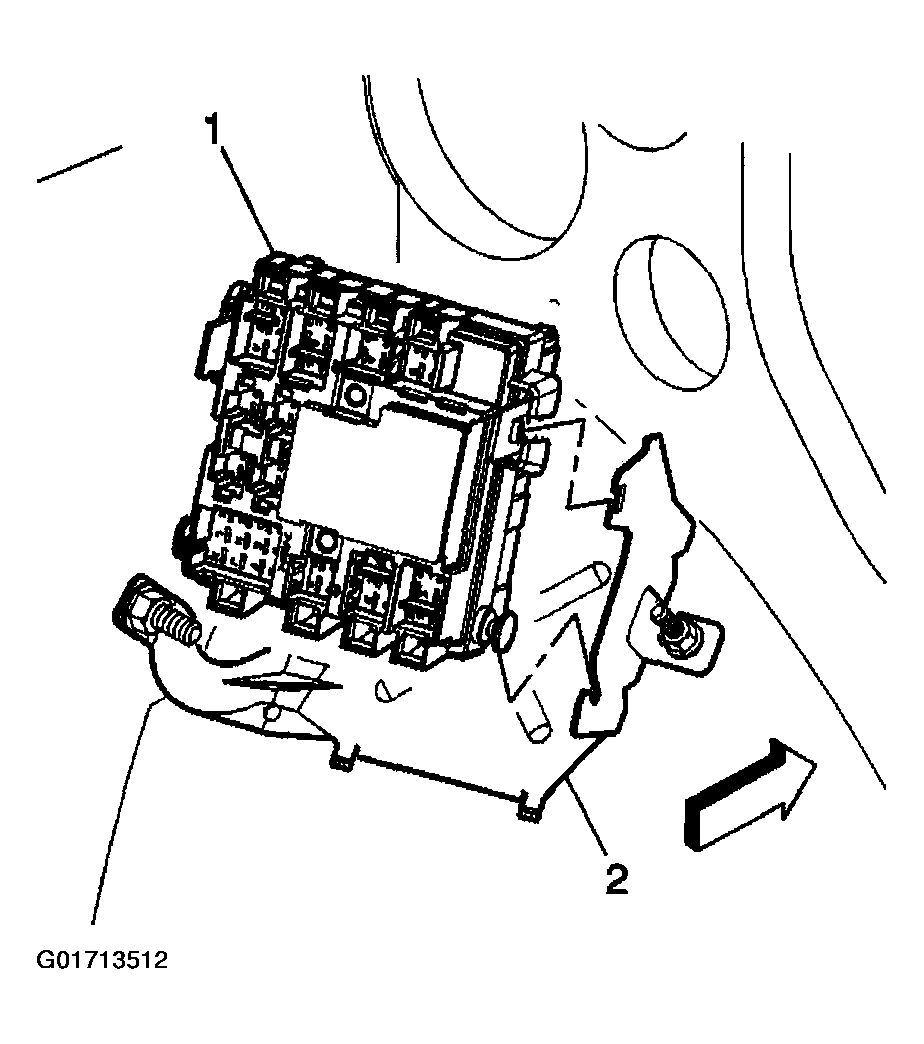

    Fig 2: Removing Junction Block From Vehicle
    G01713512Courtesy of GENERAL MOTORS CORP.
