Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the relay (2) in the same position as removed.
  2. Install the electrical center cover.

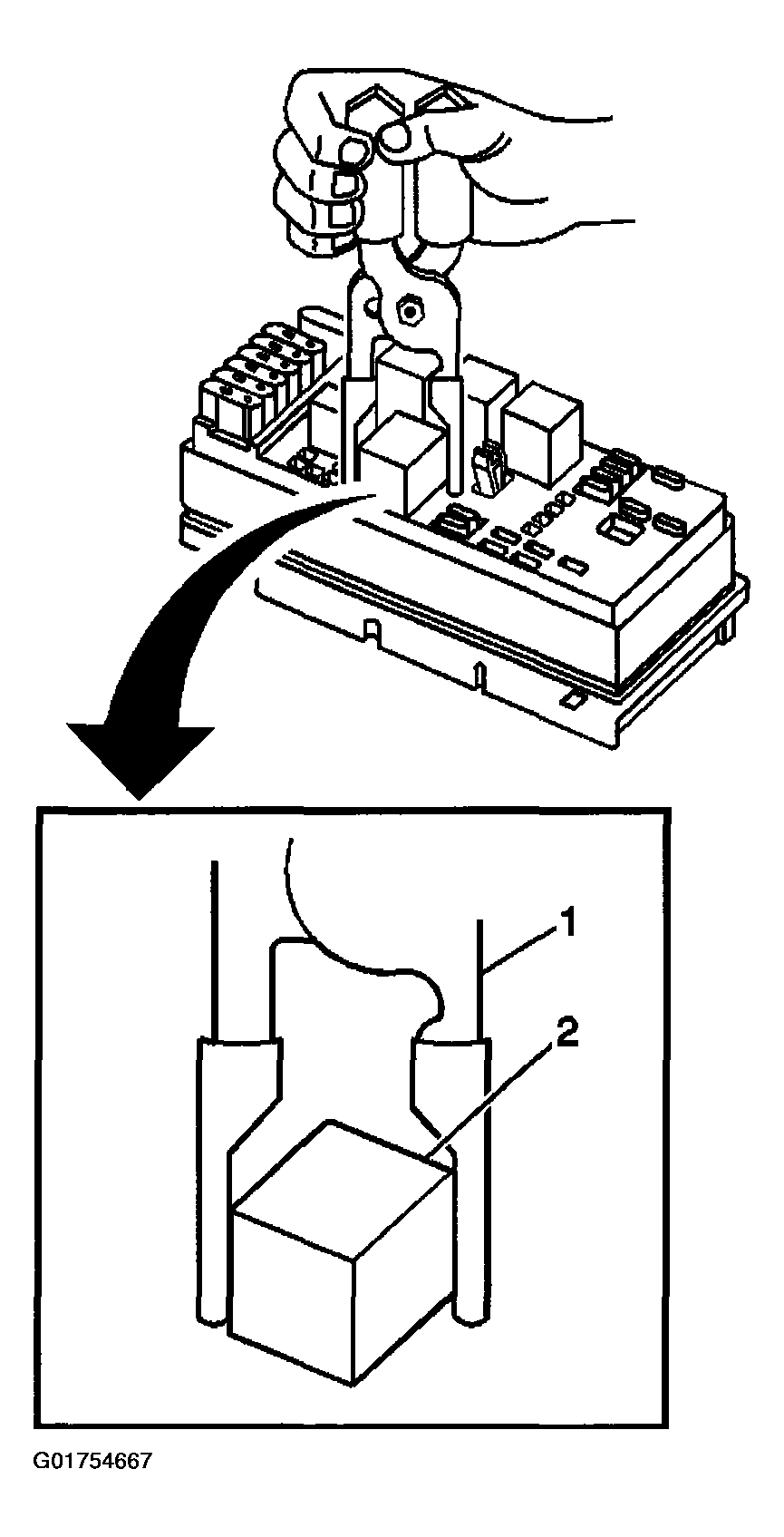

    Fig 1: Identifying Installation Of Relay
    G01754667Courtesy of GENERAL MOTORS CORP.
