Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the relay (1) to the wire harness connector (2).

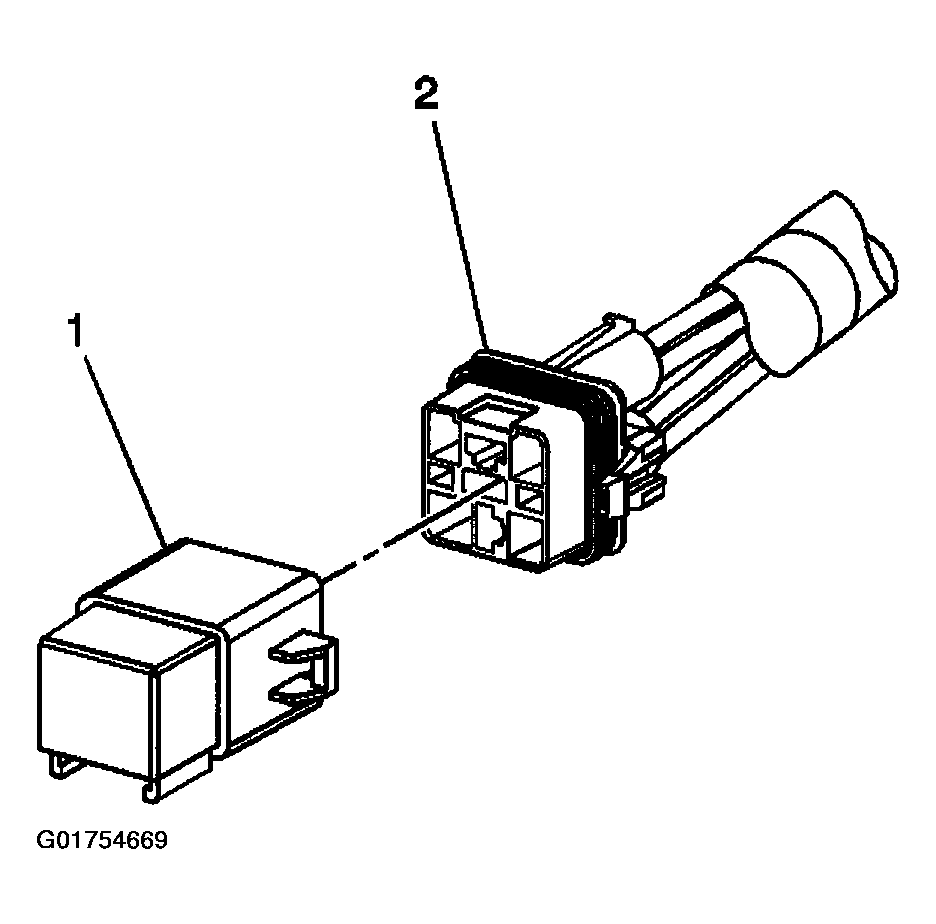

    2. Fig 1: Identifying Wire Harness Mounted Relay
    G01754669Courtesy of GENERAL MOTORS CORP.
  2. Install any connector position assurance (CPA) devices or secondary locks.
  3. Install the relay using any fasteners or tape that originally held the relay in place.
