Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wires to the fuse block. Refer to INSTRUMENT PANEL FUSE BLOCK .

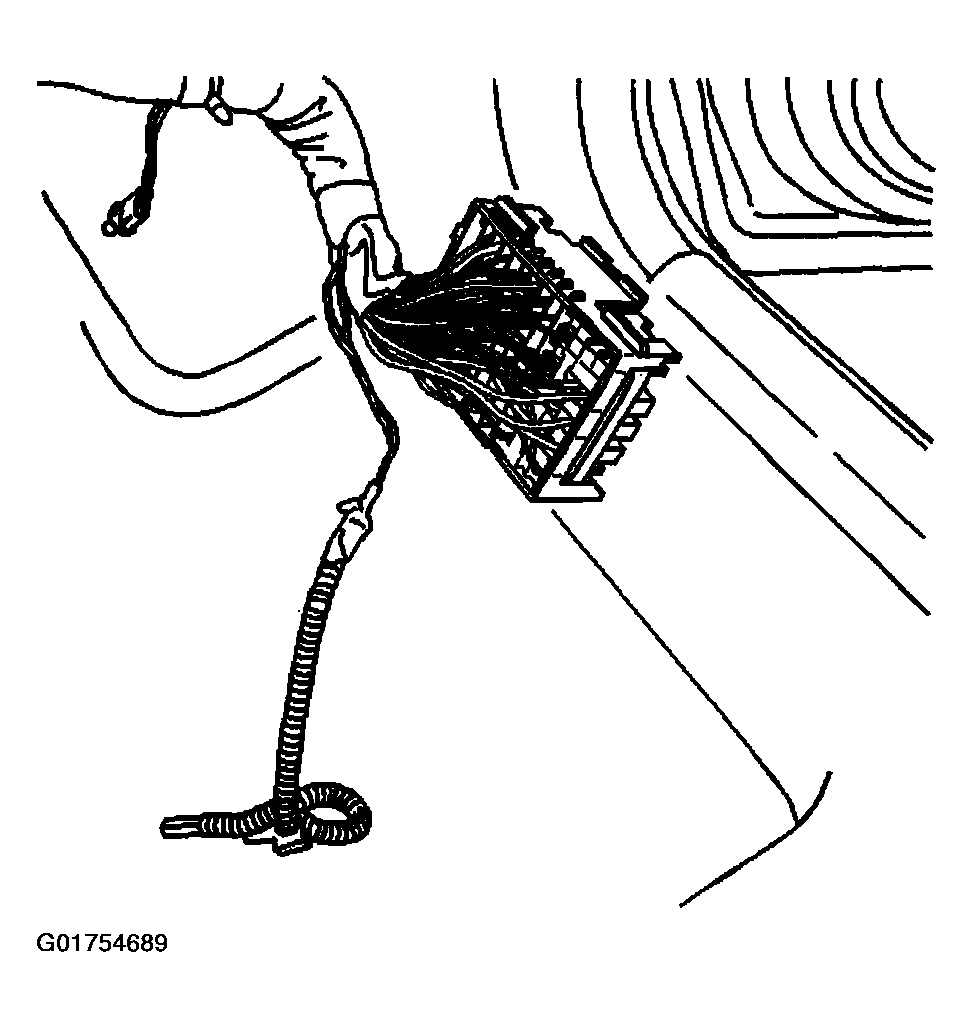

    2. Fig 1: Identifying Back Side Of I/P Fuse Block
    G01754689Courtesy of GENERAL MOTORS CORP.
  2. Install the fuses and the relays to the fuse block. Refer to INSTRUMENT PANEL FUSE BLOCK .
  3. Position the fuse block to the I/P. Install the fuse block to the fuse block bracket on the body wiring harness.

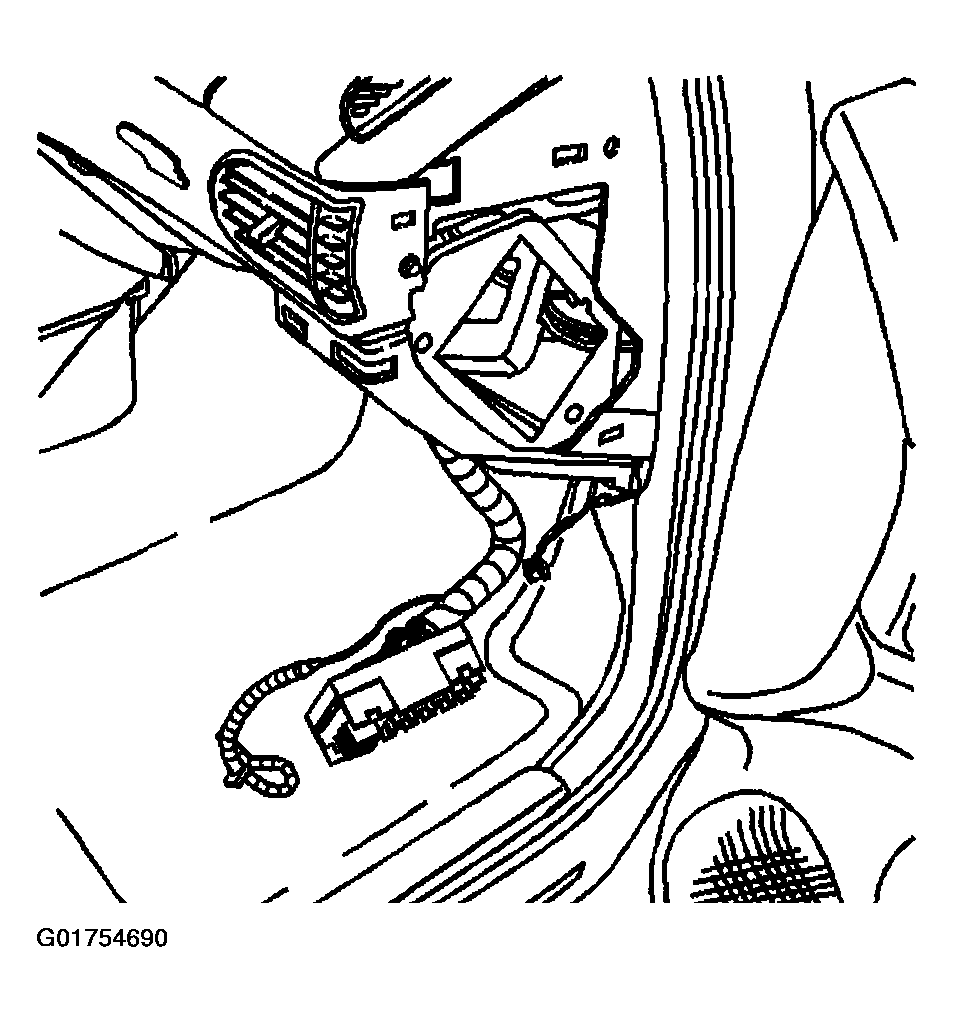

    Fig 2: Positioning Fuse Block To I/P
    G01754690Courtesy of GENERAL MOTORS CORP.
  4. Install the wiring harness retainer (1) to the passenger knee bolster bracket (2).

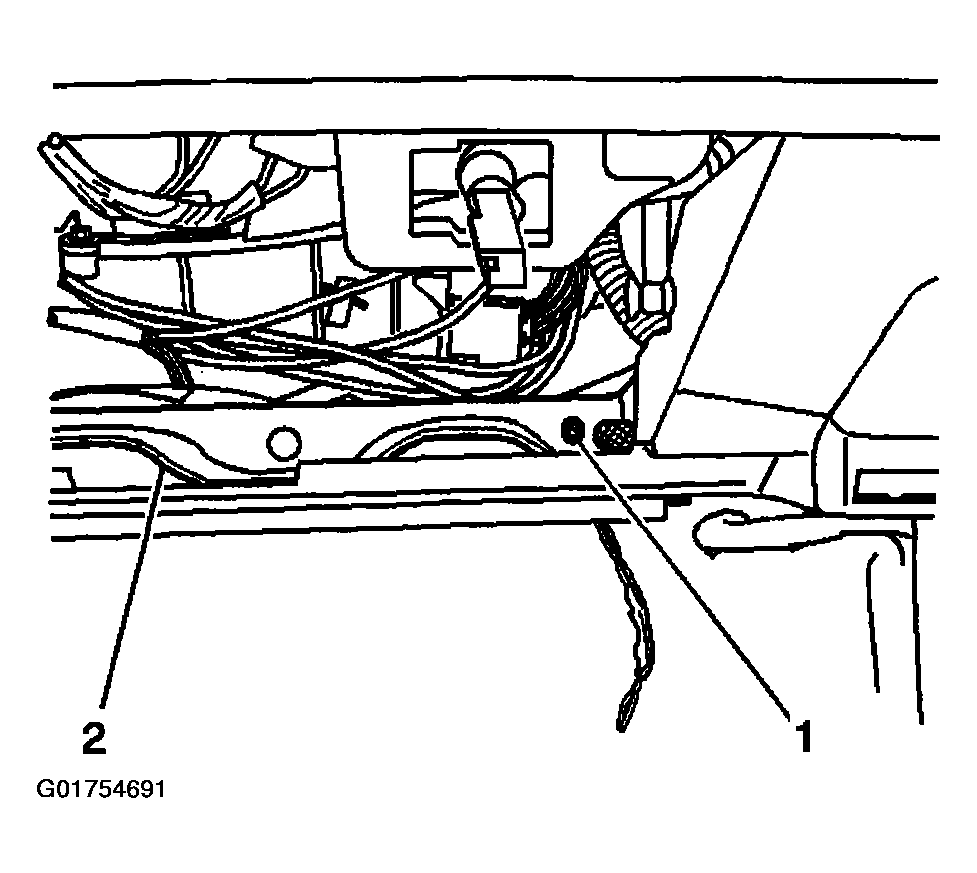

    Fig 3: Identifying Passenger Knee Bolster Bracket Wiring Harness Retainer
    G01754691Courtesy of GENERAL MOTORS CORP.
  5. Install the lamp harness retainer (1) to the passenger knee bolster bracket (2).

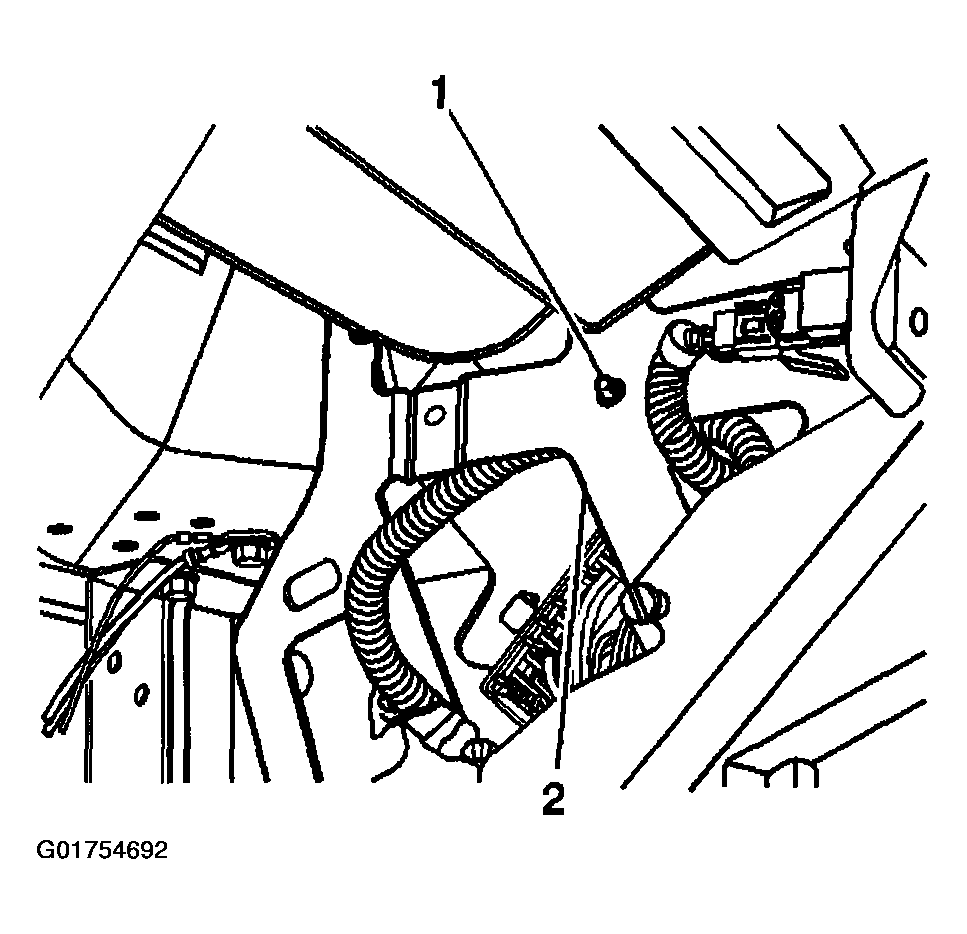

    Fig 4: Identifying Passenger Knee Bolster Bracket Lamp Harness Retainer
    G01754692Courtesy of GENERAL MOTORS CORP.
  6. Install the I/P compartment. Refer to COMPARTMENT REPLACEMENT - I/P .
  7. Install the right I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  8. Install the access hole cover to the I/P fuse block.

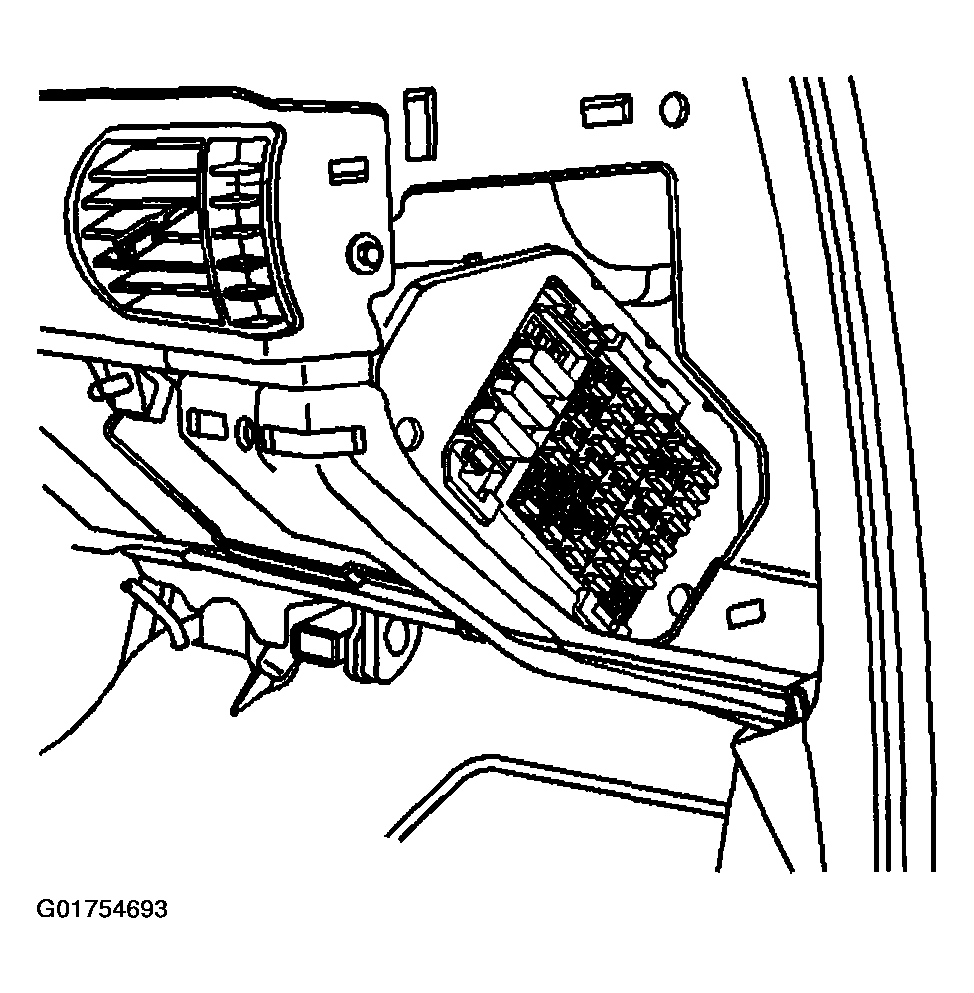

    9. Fig 5: Identifying Instrument Panel (I/P) Fuse Block With Access Hole Cover Removed
    G01754693Courtesy of GENERAL MOTORS CORP.
  9. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
