Suspension Controls Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

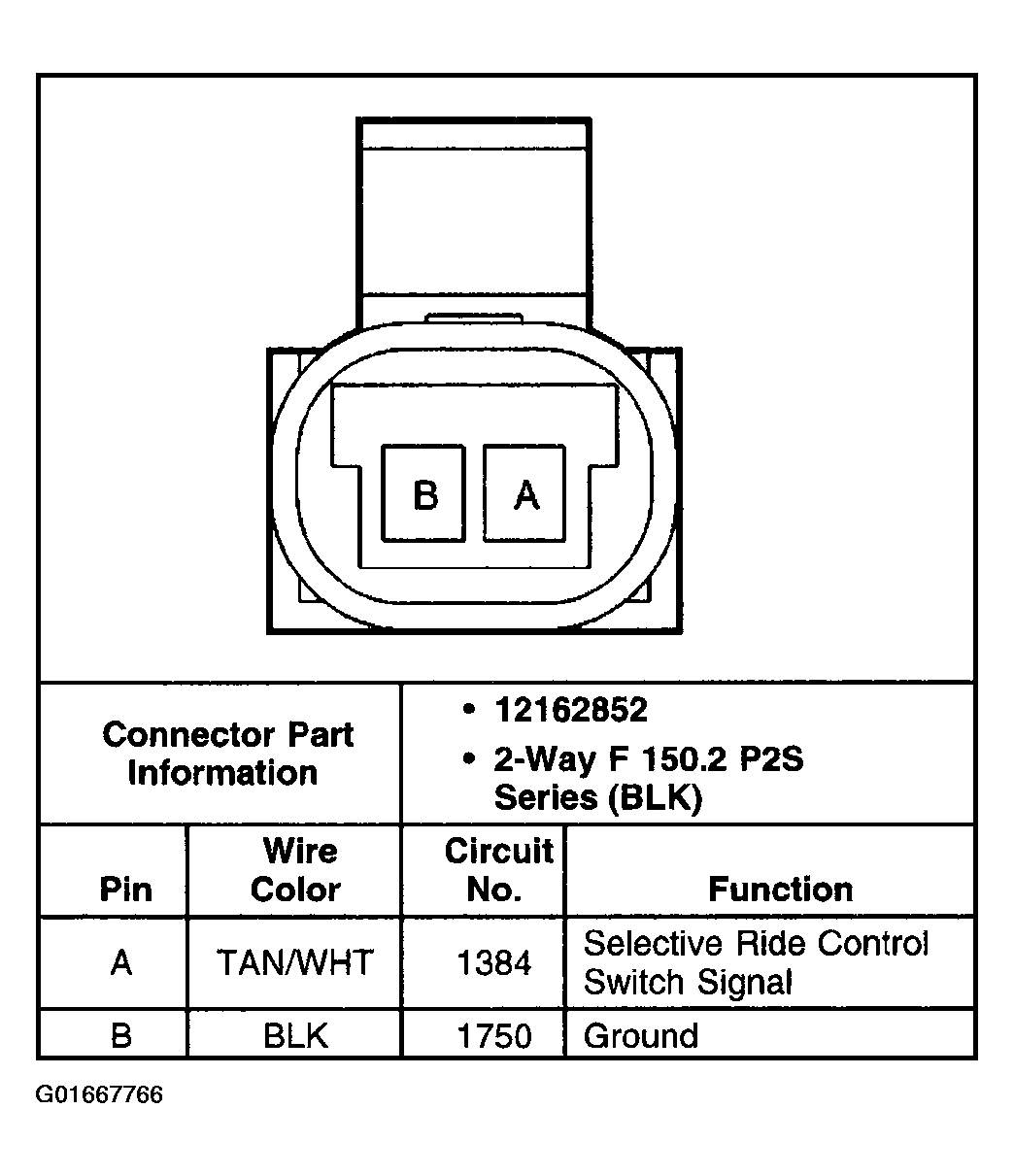

Fig 1: Identifying Selectable Ride Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

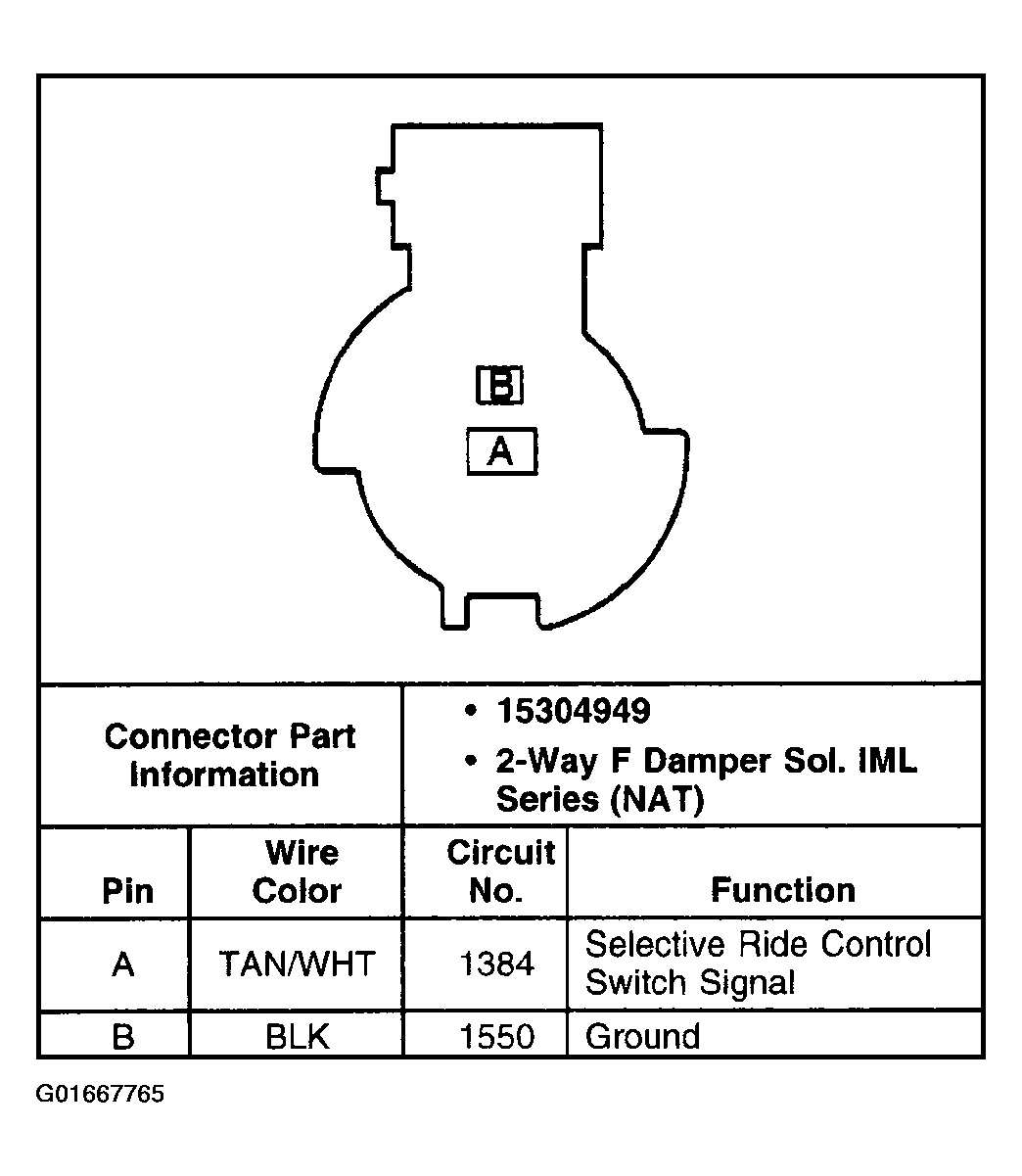

Fig 2: Identifying Shock Absorber Solenoid Valves - LF & RF Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Shock Absorber Solenoid Valves - LR & RR Connector Terminals

Courtesy of GENERAL MOTORS CORP.
