Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Pull the weatherstrip (1) from the rear compartment lid pinch-weld flange (2).
  3. Lift the weatherstrip (1) over the top of the lid.

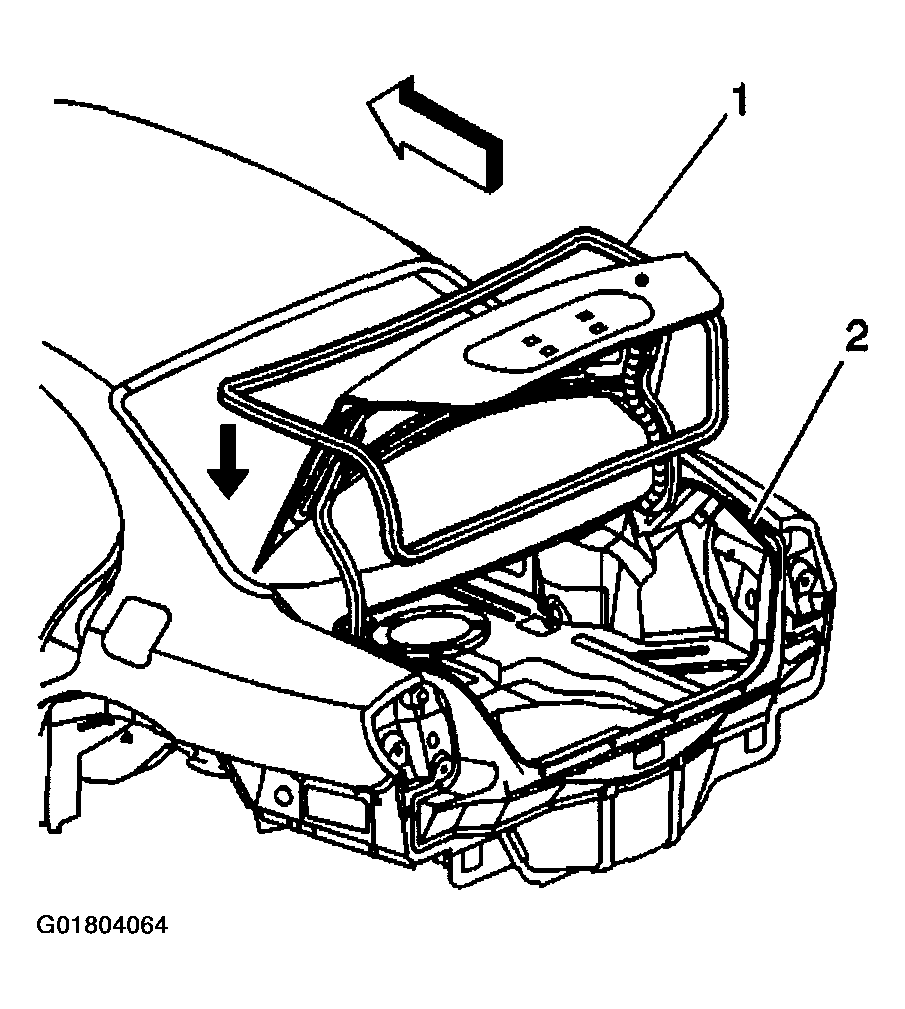

    Fig 1: Removing Compartment Opening Weatherstrip
    G01804064Courtesy of GENERAL MOTORS CORP.
