Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the weatherstrip (1) over the top of the rear compartment lid.
  2. Press the weatherstrip (1) to the rear compartment pinch-weld flange (2).
  3. Insure that the weatherstrip is secured properly to the entire pinch-weld flange.
  4. Close the rear compartment lid.

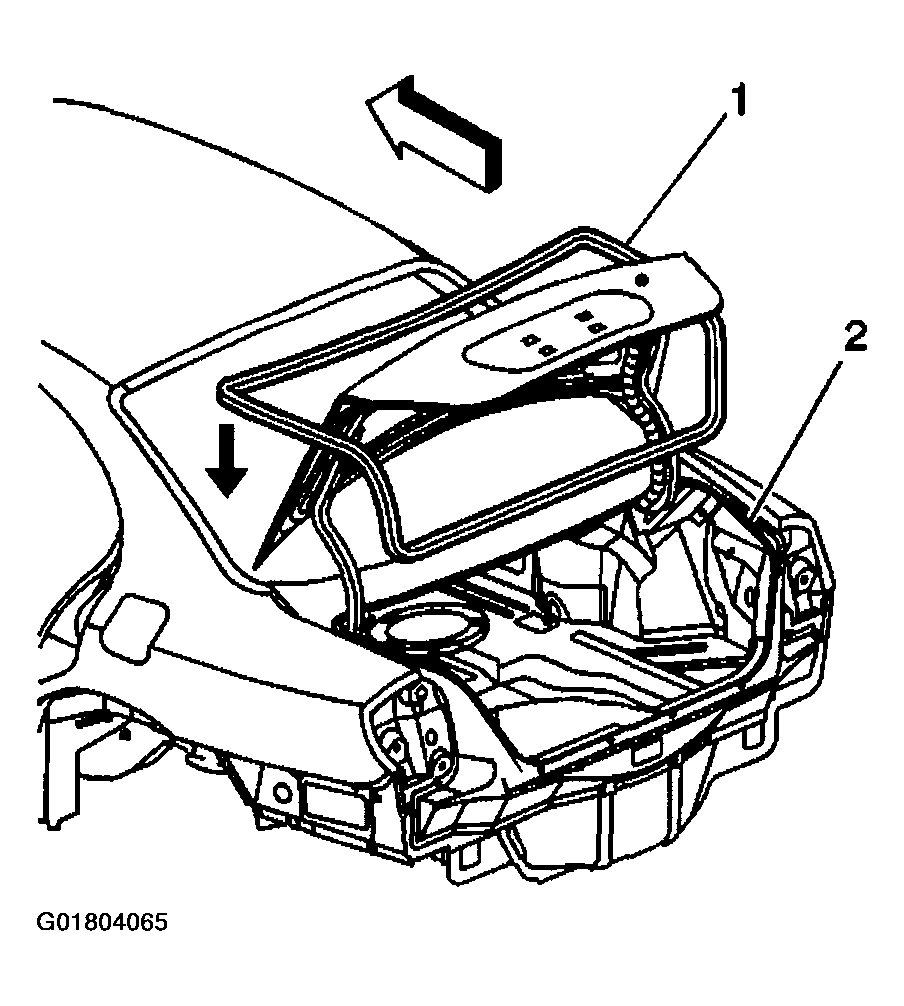

    Fig 1: Installing Compartment Opening Weatherstrip
    G01804065Courtesy of GENERAL MOTORS CORP.
