Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

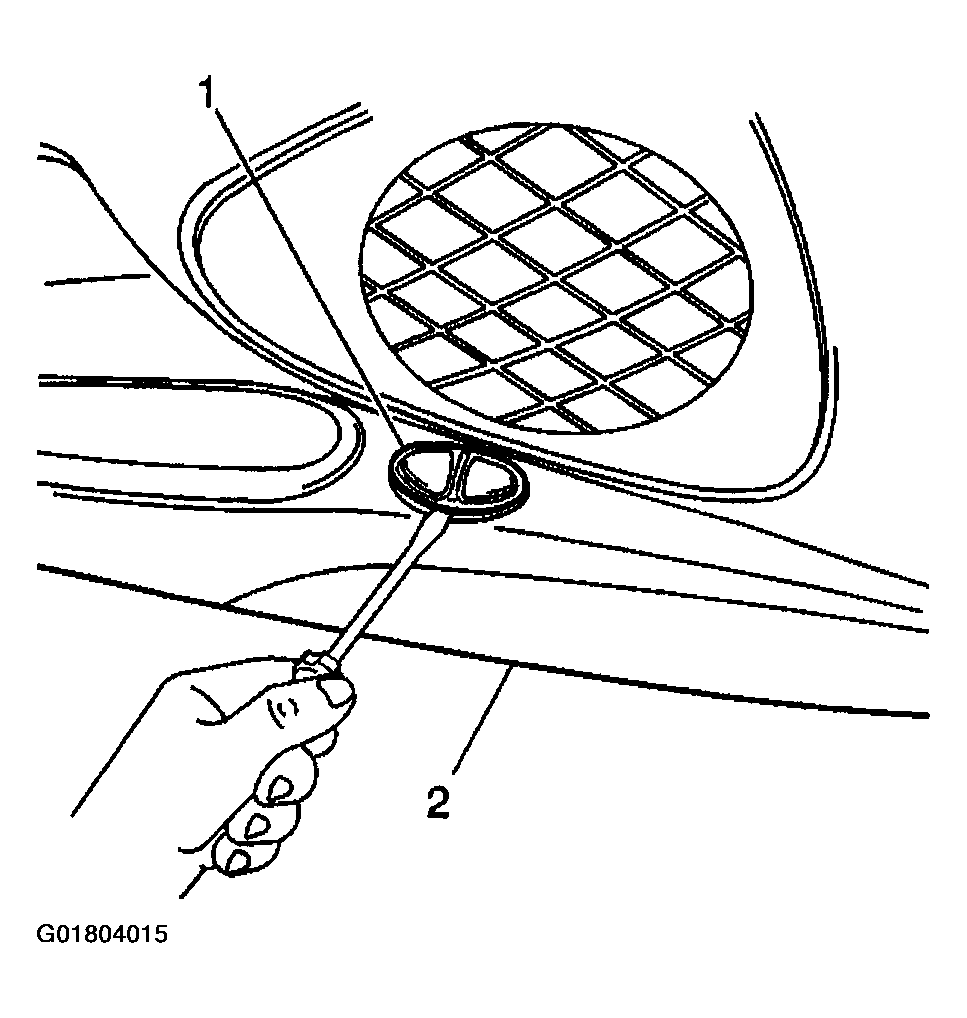

  1. Using a small flat bladed tool, gently pry the rear compartment lid switch (1) from the door trim panel (2).
    Fig 1: Removing Fuel Filler Door Release Switch
    G01804015Courtesy of GENERAL MOTORS CORP.

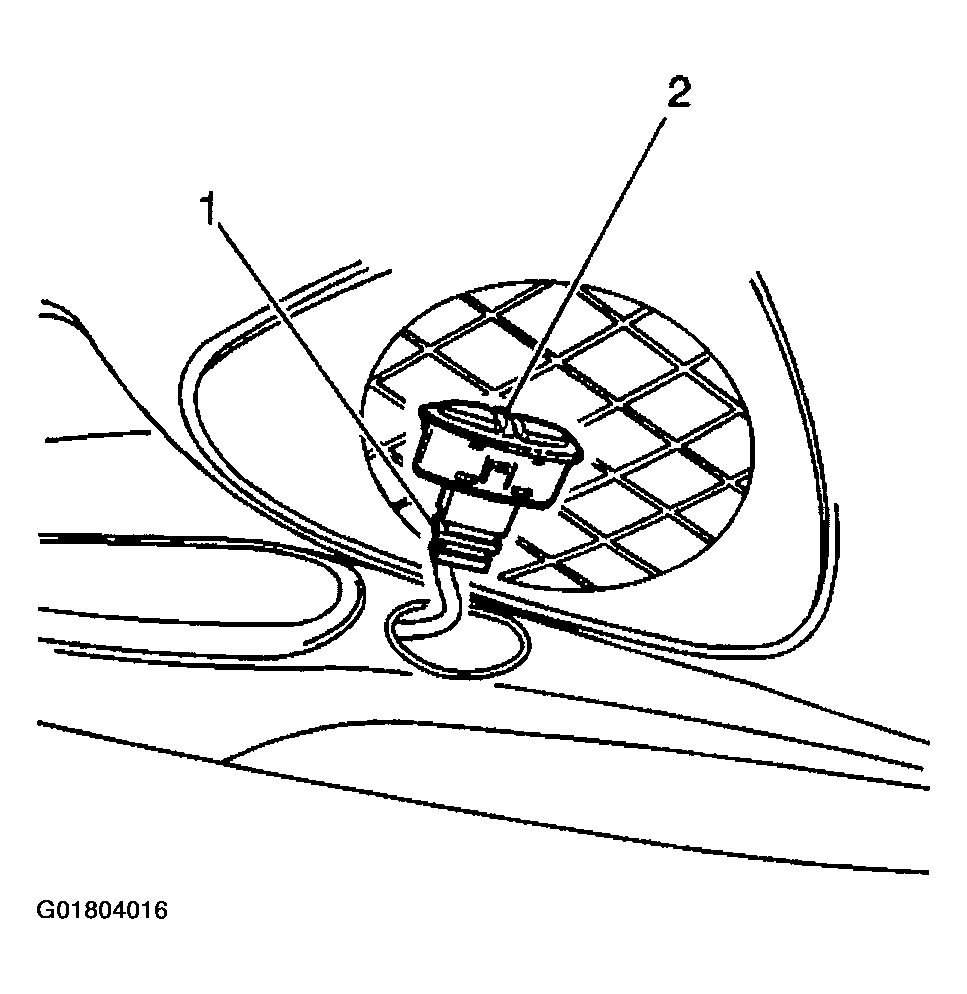

  2. Disconnect the electrical connector (1) from the rear compartment lid switch (2).
    Fig 2: Disconnecting Fuel Filler Door Release Switch Electrical Connector
    G01804016Courtesy of GENERAL MOTORS CORP.
