Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (1) to the rear compartment lid switch (2).
  2. Position the rear compartment lid switch (2) into the opening in the door trim panel.
  3. Push downward on the rear compartment lid switch in order to engage the retainer clips.

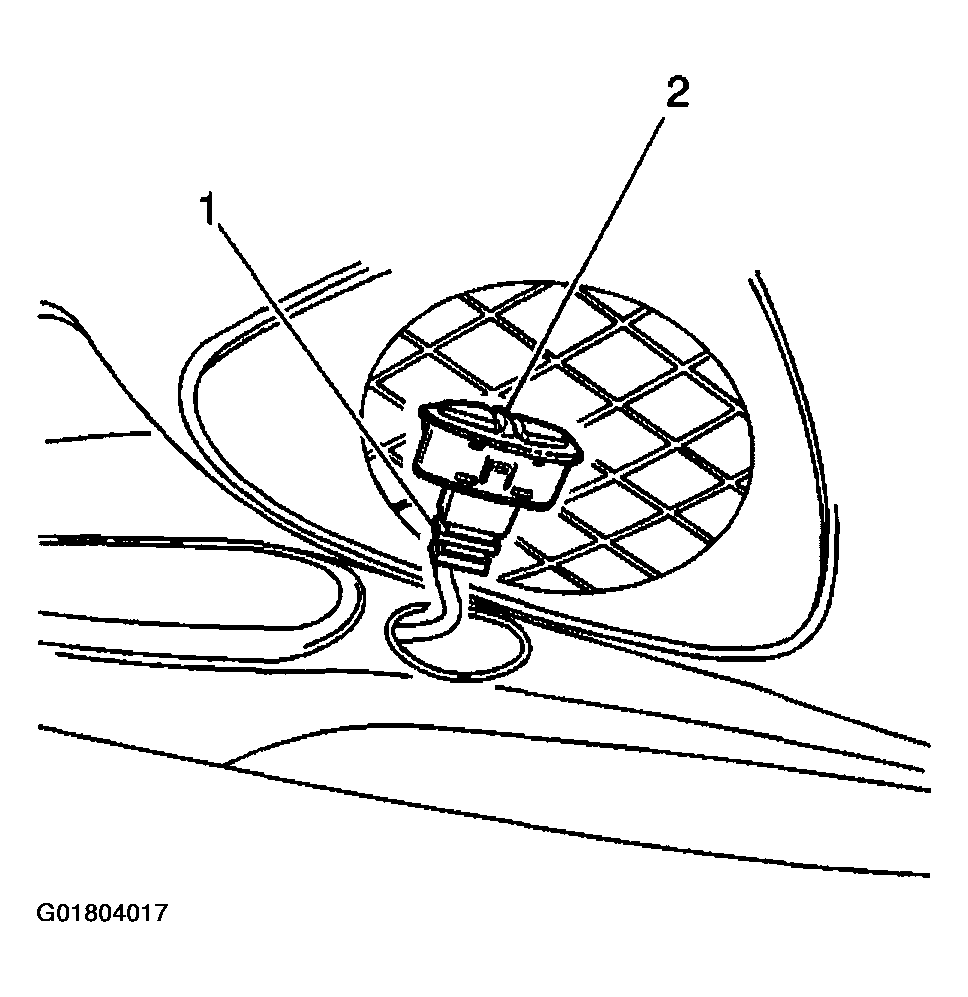

    Fig 1: Connecting Fuel Filler Door Release Switch Electrical Connector
    G01804017Courtesy of GENERAL MOTORS CORP.
