Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear compartment trim panel. Refer to Compartment Trim Panel Replacement - Rear  .
  2. Press the tabs in order to release the pressure relief valve (1) from the quarter panel.

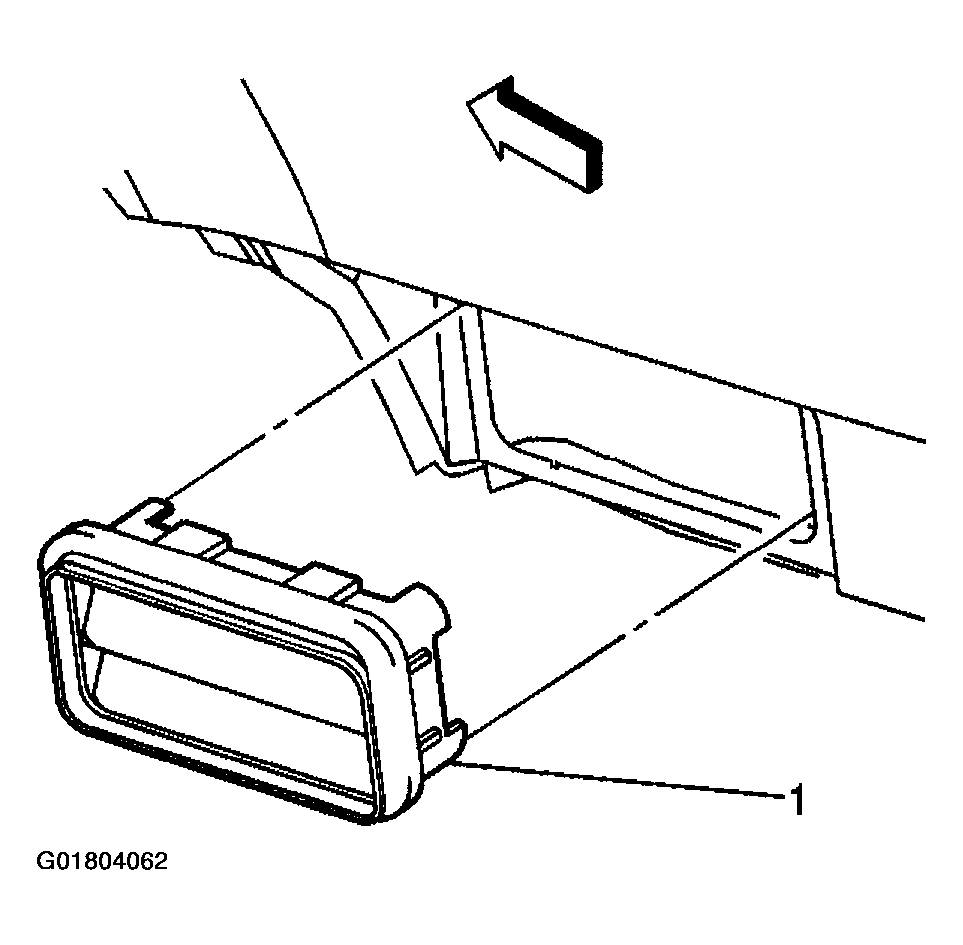

    Fig 1: Removing Pressure Relief Valve
    G01804062Courtesy of GENERAL MOTORS CORP.
