Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock cylinder to the bracket (2).
  2. Install the bracket and cylinder (2) to the rear compartment lid.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the fasteners (1) in order to retain the lock cylinder bracket to the lid.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

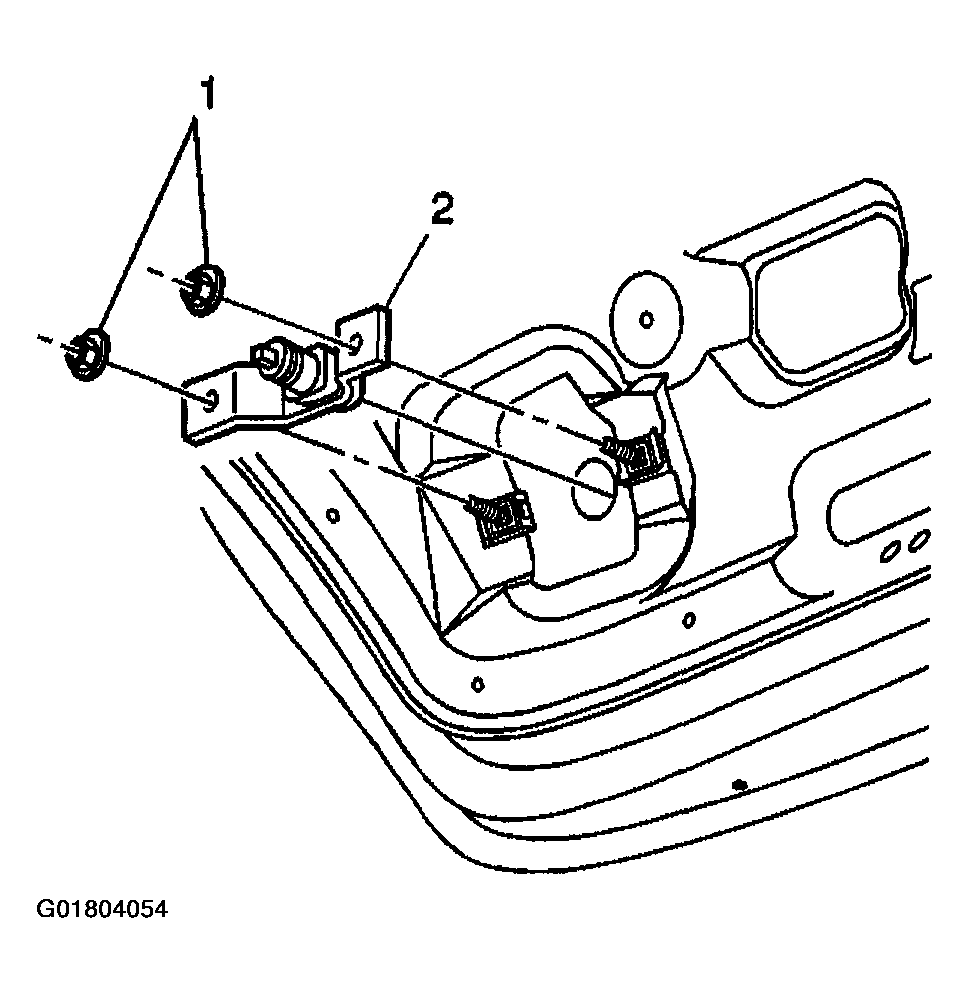

    4. Fig 1: Installing Lock Cylinder Bracket
    G01804054Courtesy of GENERAL MOTORS CORP.
  4. Install the latch cable to the back of the lock cylinder.
  5. Install the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .
  6. Close the lid.
