Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .
  2. Disconnect the electrical connectors from the lid latch assembly.
  3. Remove the latch cable from the back of the lock cylinder.
  4. Remove the fasteners retaining the lid latch assembly to the rear compartment lid.
  5. Remove the lid latch assembly.

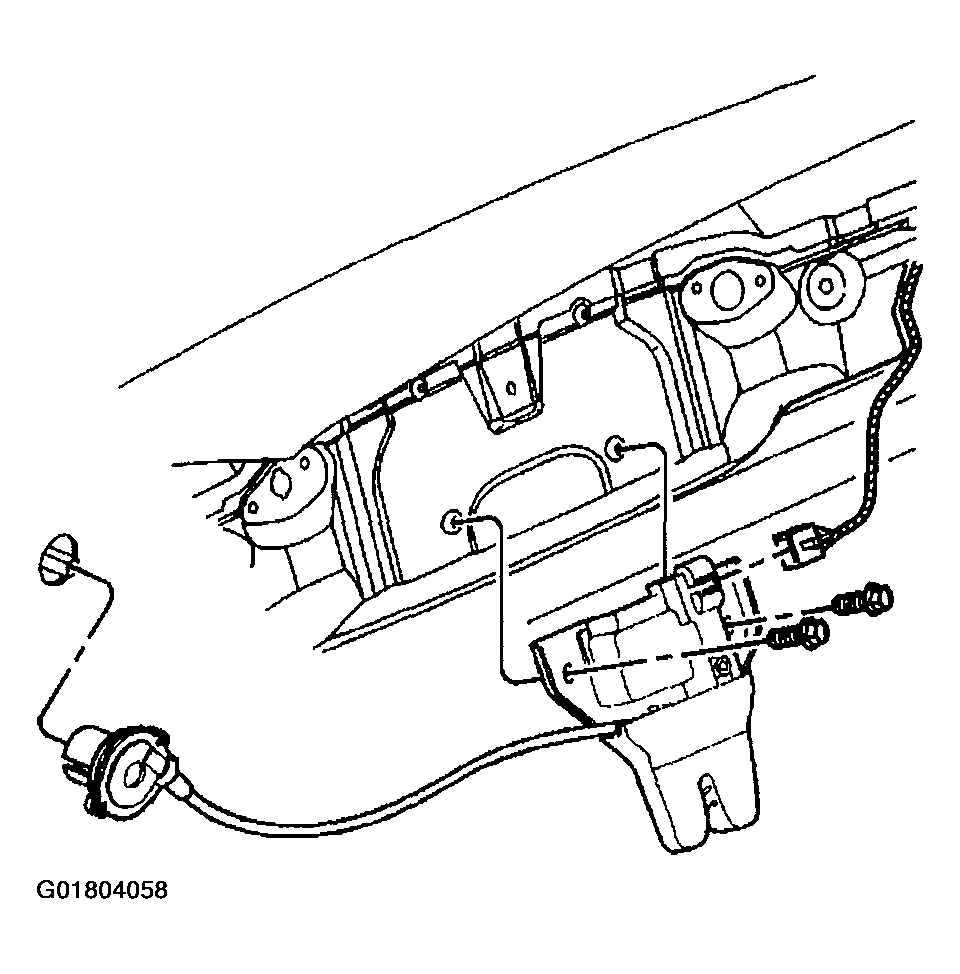

    Fig 1: Removing Lid Latch Assembly
    G01804058Courtesy of GENERAL MOTORS CORP.
