Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid. Refer to Compartment Lid Replacement - Rear  .
  2. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF .
  3. Remove the torque rods (1) from the rear compartment lid hinges (2). Refer to Torque Rod Replacement - Rear Compartment Lid  .
    Fig 1: Locating Rear Compartment Lid Hinges
    G01804045Courtesy of GENERAL MOTORS CORP.
  4. Remove the fasteners securing the rear compartment lid hinges to the vehicle.
  5. Remove the rear compartment lid hinge from the vehicle.

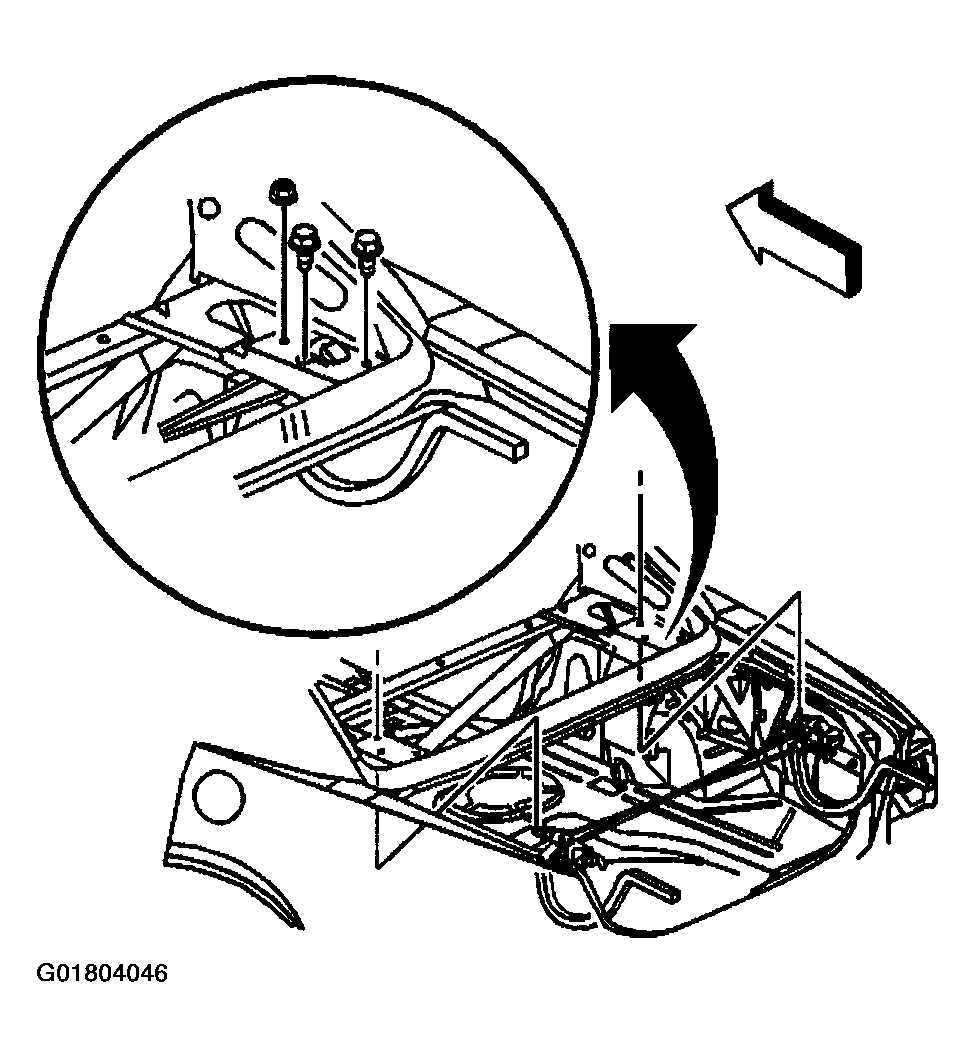

    Fig 2: Removing Rear Compartment Lid Hinge
    G01804046Courtesy of GENERAL MOTORS CORP.
