Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid hinges (2) to the vehicle.
    Fig 1: Locating Rear Compartment Lid Hinges
    G01804047Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fasteners in order to secure the rear compartment lid hinge to the vehicle.

    Tighten

    Tighten the fasteners to 24 N.m (18 lb ft).

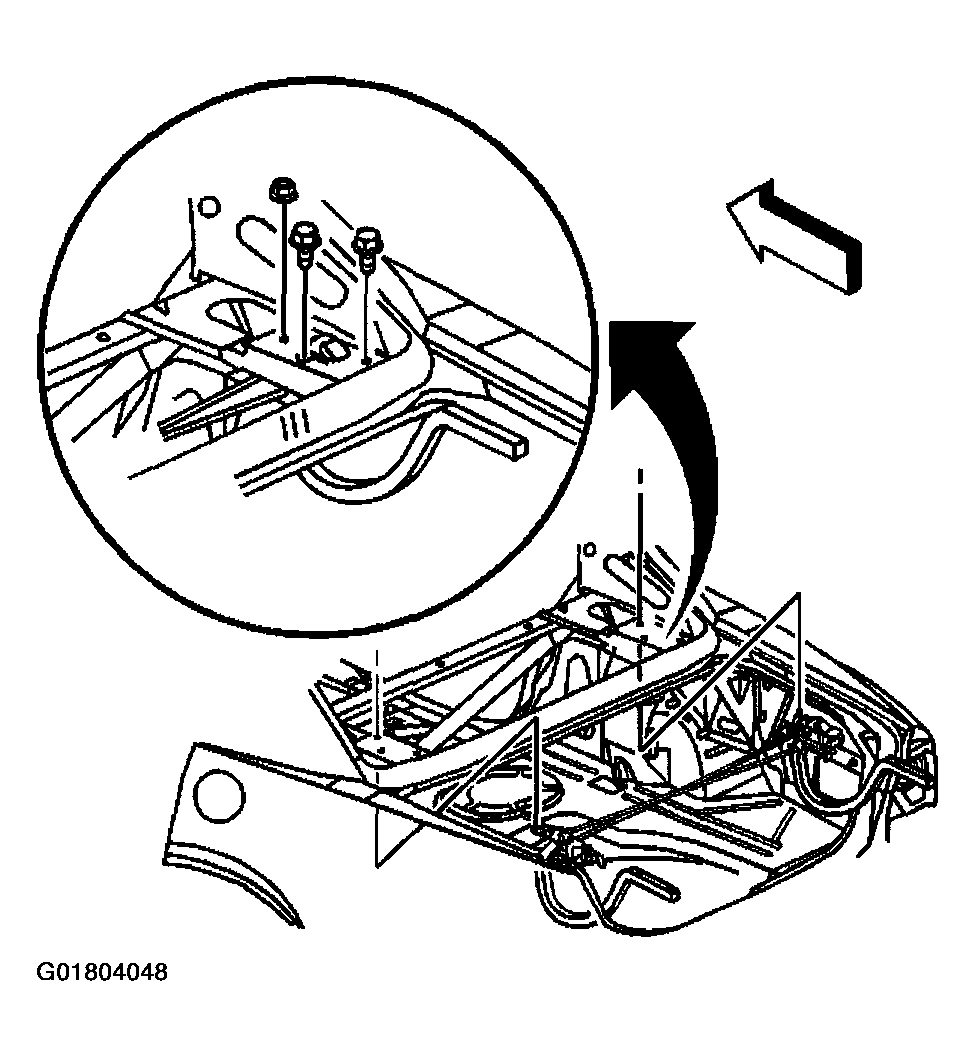

    Fig 2: Installing Rear Compartment Lid Hinge
    G01804048Courtesy of GENERAL MOTORS CORP.
  3. Install the torque rods (1) to the rear compartment lid hinges (2). Refer to Torque Rod Replacement - Rear Compartment Lid  .
  4. Install the rear compartment lid. Refer to Compartment Lid Replacement - Rear  .
  5. Adjust the rear compartment lid as necessary. Refer to Compartment Lid Adjustment - Rear  .
  6. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF .
    Fig 3: Locating Rear Compartment Lid Hinges
    G01804049Courtesy of GENERAL MOTORS CORP.
