Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the fuel filler door bumpers (2) are removed, install new fuel filler door bumpers (2).

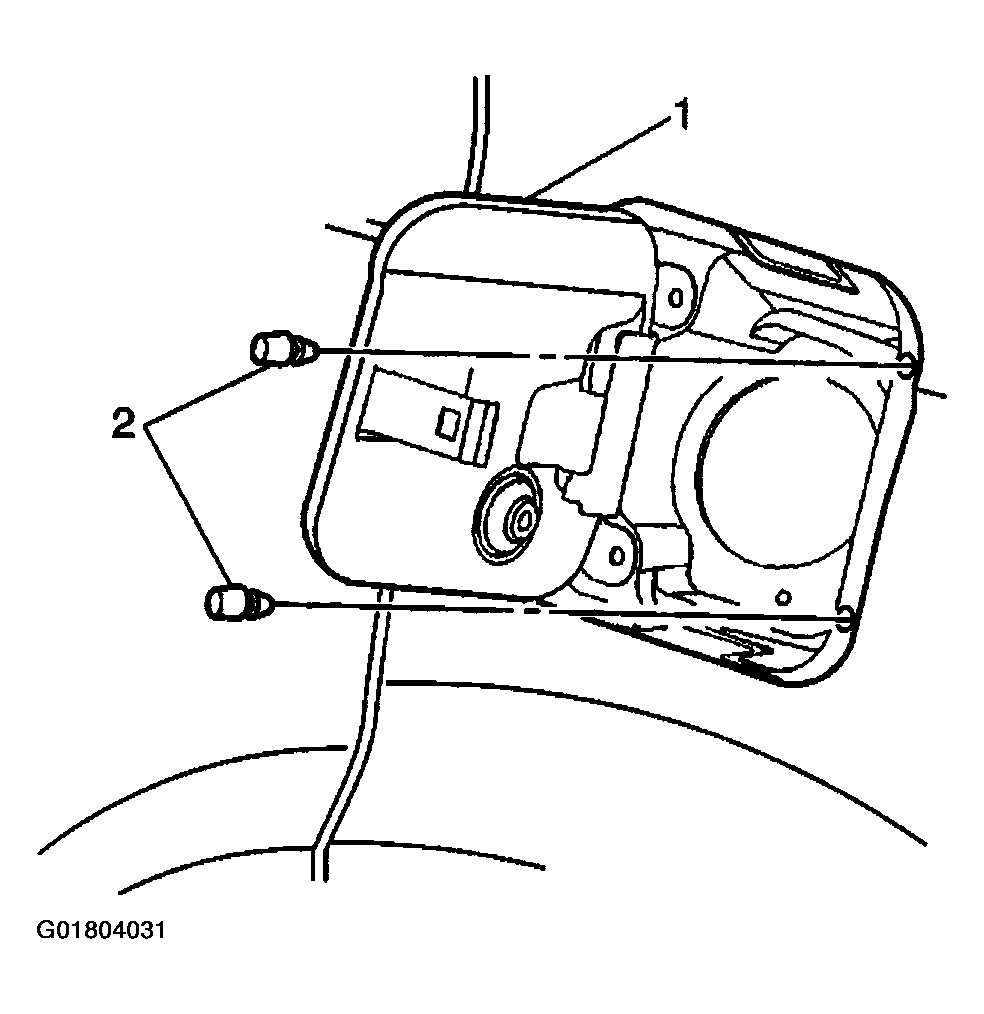

    Fig 1: Locating Fuel Filler Door Bumpers
    G01804031Courtesy of GENERAL MOTORS CORP.
  2. Install the fuel filler door (2) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the fasteners (1) to retain the fuel filler door (2) to the vehicle.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

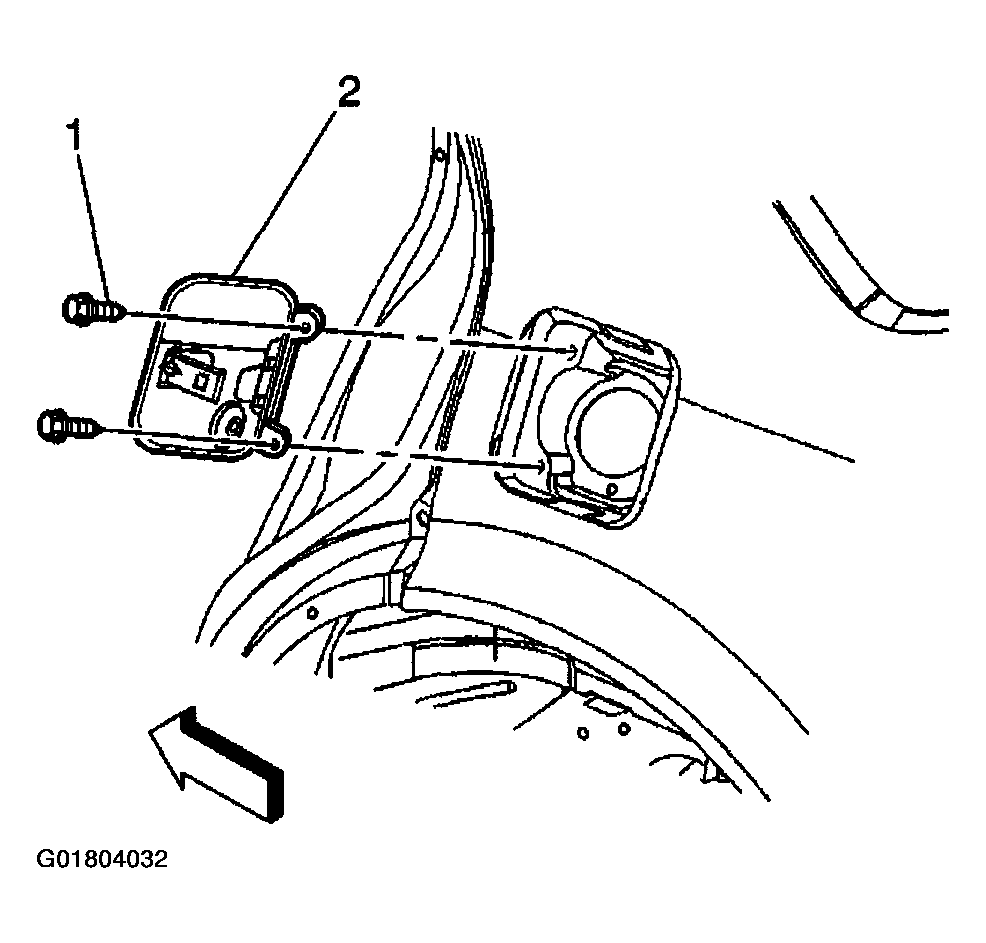

    Fig 2: Installing Fuel filler Door
    G01804032Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel filler cap tether (3) to the fuel filler door (1).
  5. Install the fuel filler cap (2).
  6. Close the fuel filler door.

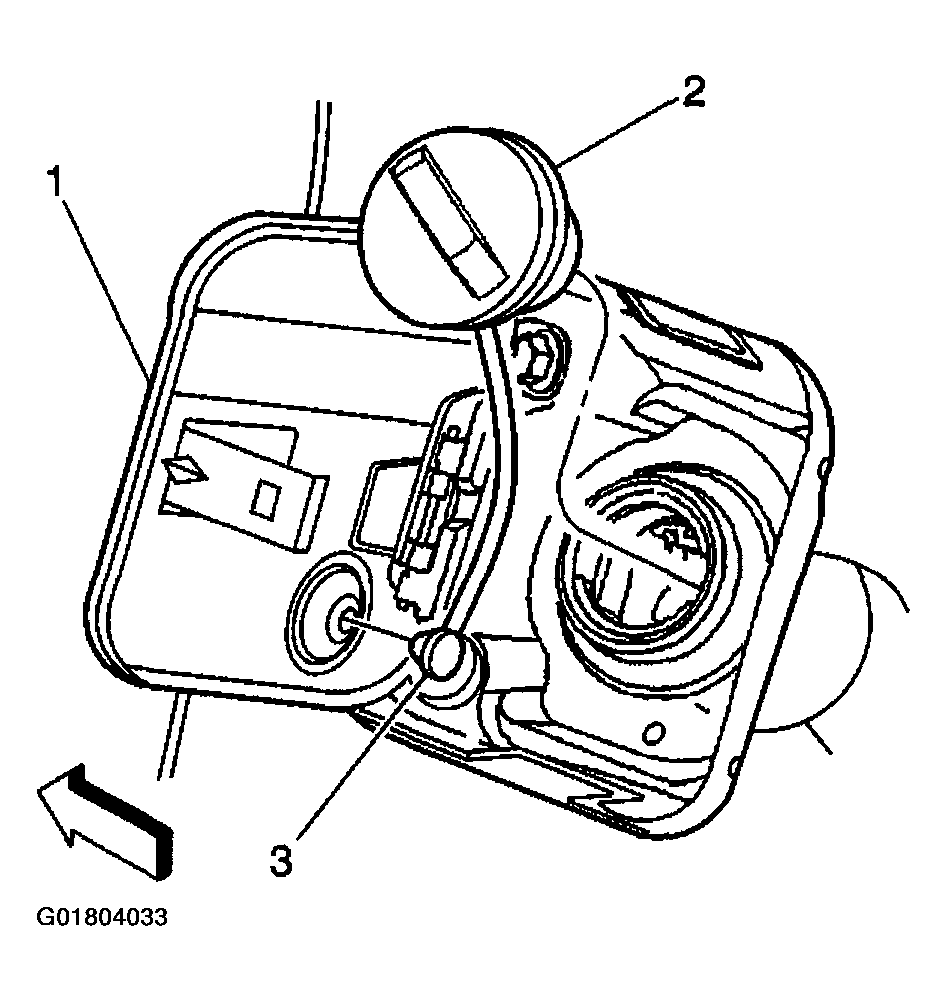

    Fig 3: Installing Fuel Filler Cap & Tether
    G01804033Courtesy of GENERAL MOTORS CORP.
