Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a small flat bladed tool, gently pry the fuel filler door release switch (1) from the door trim panel (2).

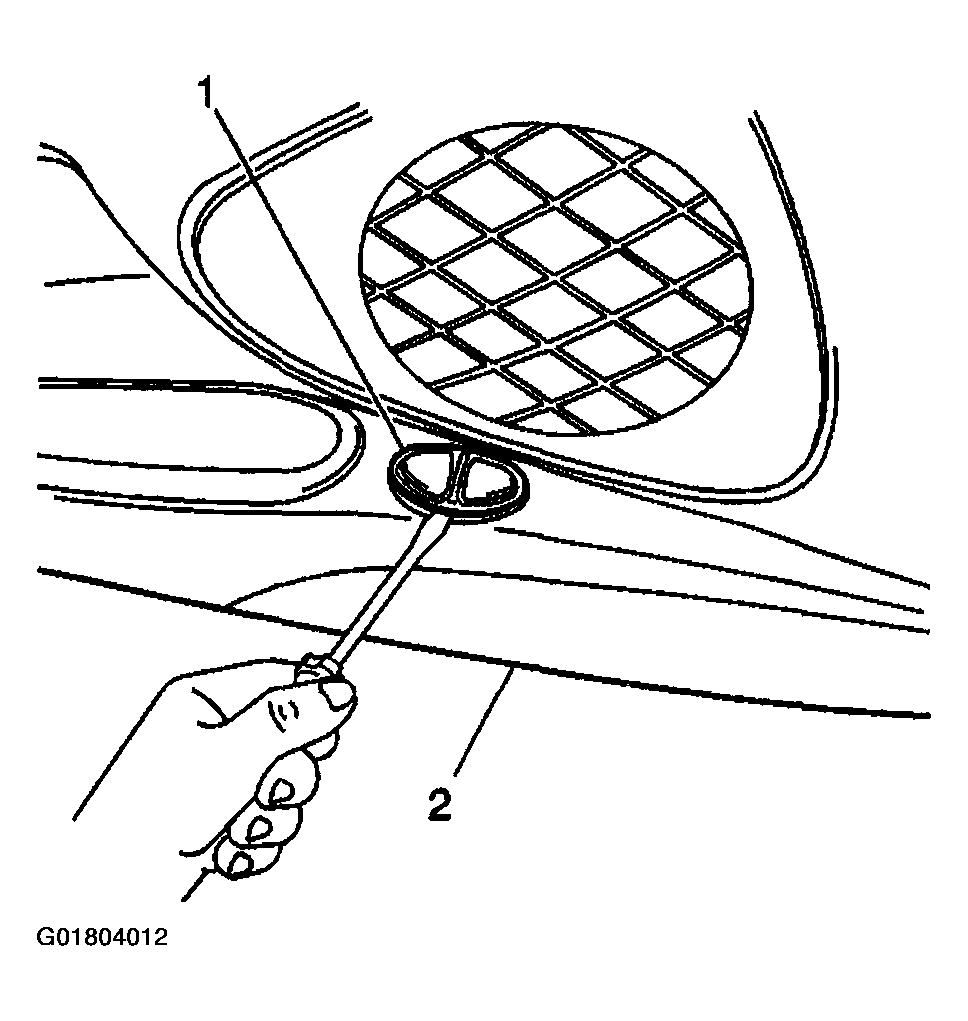

    Fig 1: Removing Fuel Filler Door Release Switch
    G01804012Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector (1) from the fuel filler door release switch (2).

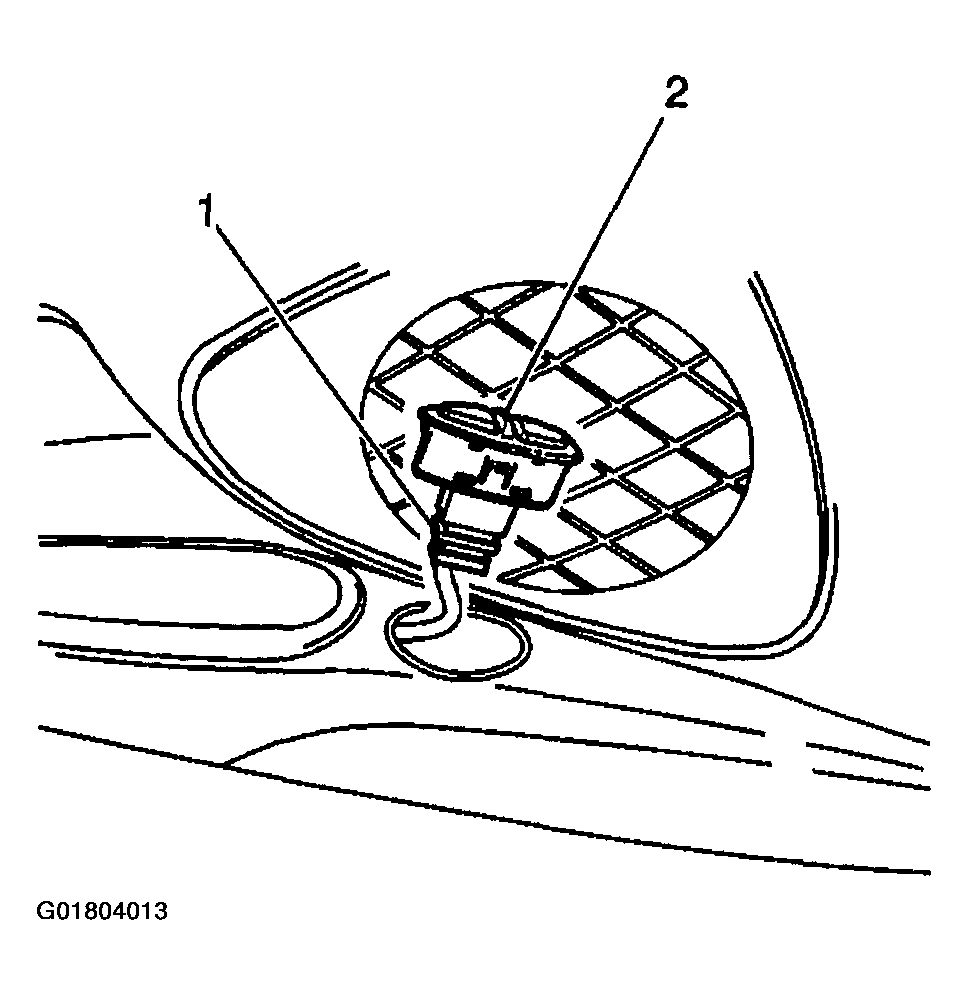

    Fig 2: Disconnecting Fuel Filler Door Release Switch Electrical Connector
    G01804013Courtesy of GENERAL MOTORS CORP.
