Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (1) to the fuel filler door release switch (2).
  2. Position the fuel filler door release switch (2) into the opening in the door trim panel.
  3. Push downward on the fuel filler door release switch (2) in order to engage the retainer clips.

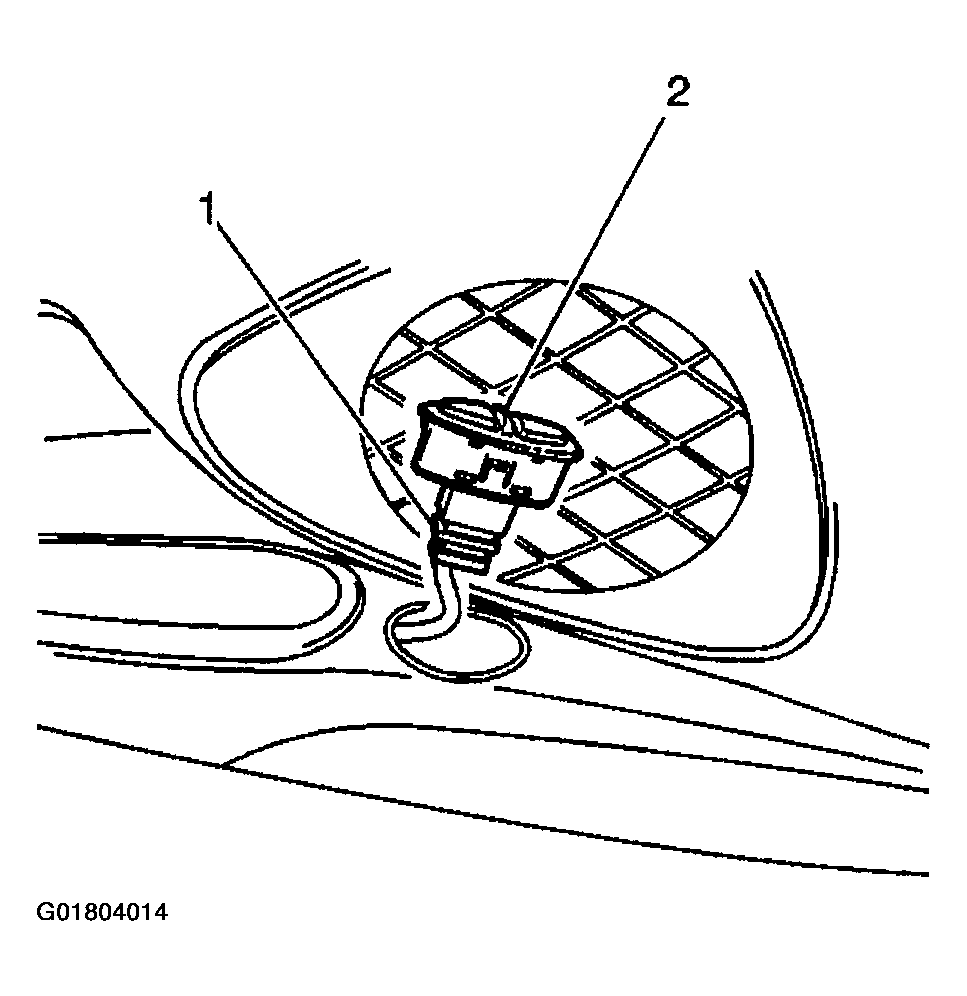

    Fig 1: Connecting Fuel Filler Door Release Switch Electrical Connector
    G01804014Courtesy of GENERAL MOTORS CORP.
