Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment sill plate. Refer to Compartment Sill Plate Replacement-Rear  .
  2. Remove the rear compartment floor trim panel retainers.
  3. Remove the rear compartment floor trim panel (2).
  4. Remove the rear compartment side trim panel retainers.
  5. Remove the rear compartment side trim panels (1, 3).

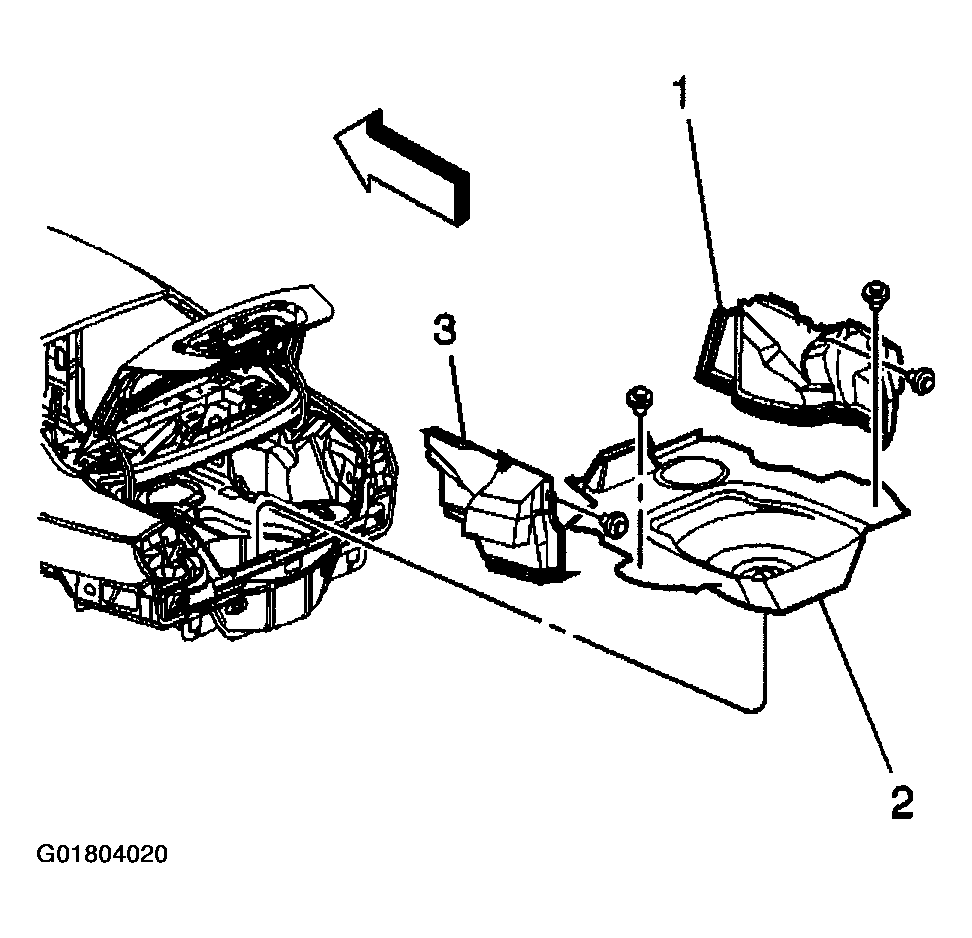

    Fig 1: Removing Rear Compartment Side Trim Panels
    G01804020Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear compartment front trim panel retainers.
  7. Remove the rear compartment front trim panel.

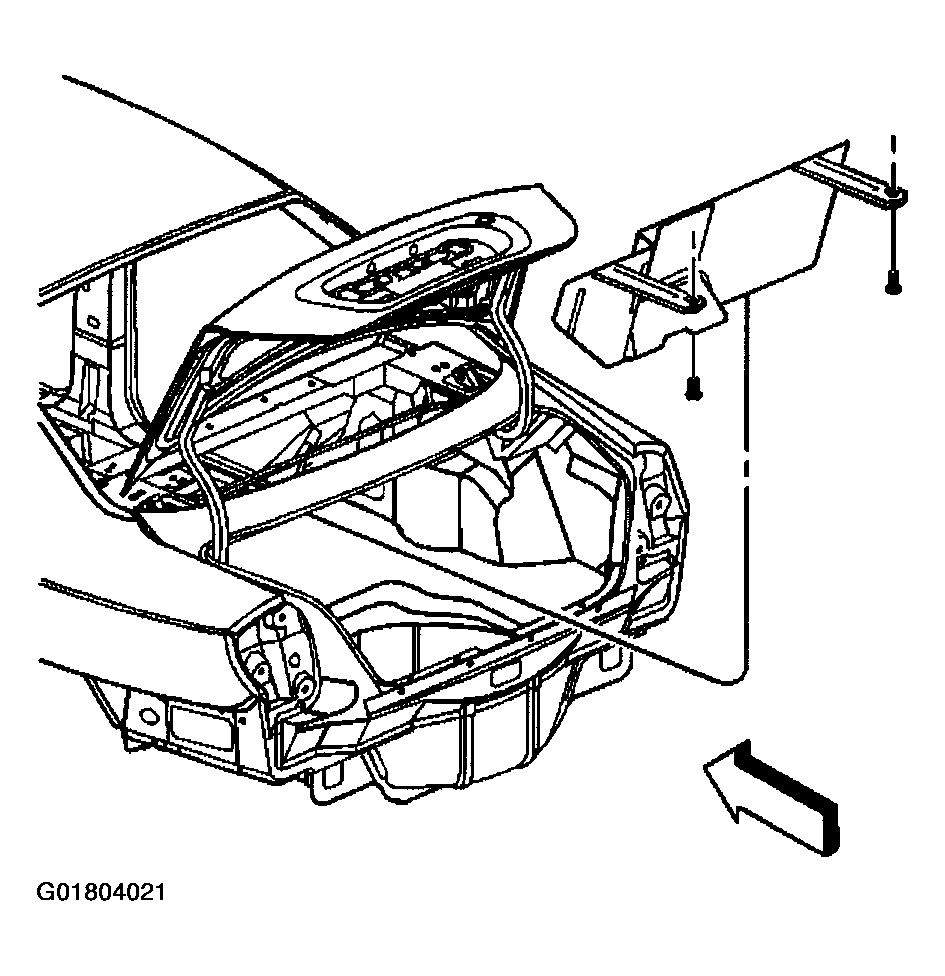

    Fig 2: Removing Rear Compartment Front Trim Panel
    G01804021Courtesy of GENERAL MOTORS CORP.
