Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment front trim panel.
  2. Install the rear compartment front trim panel retainers.

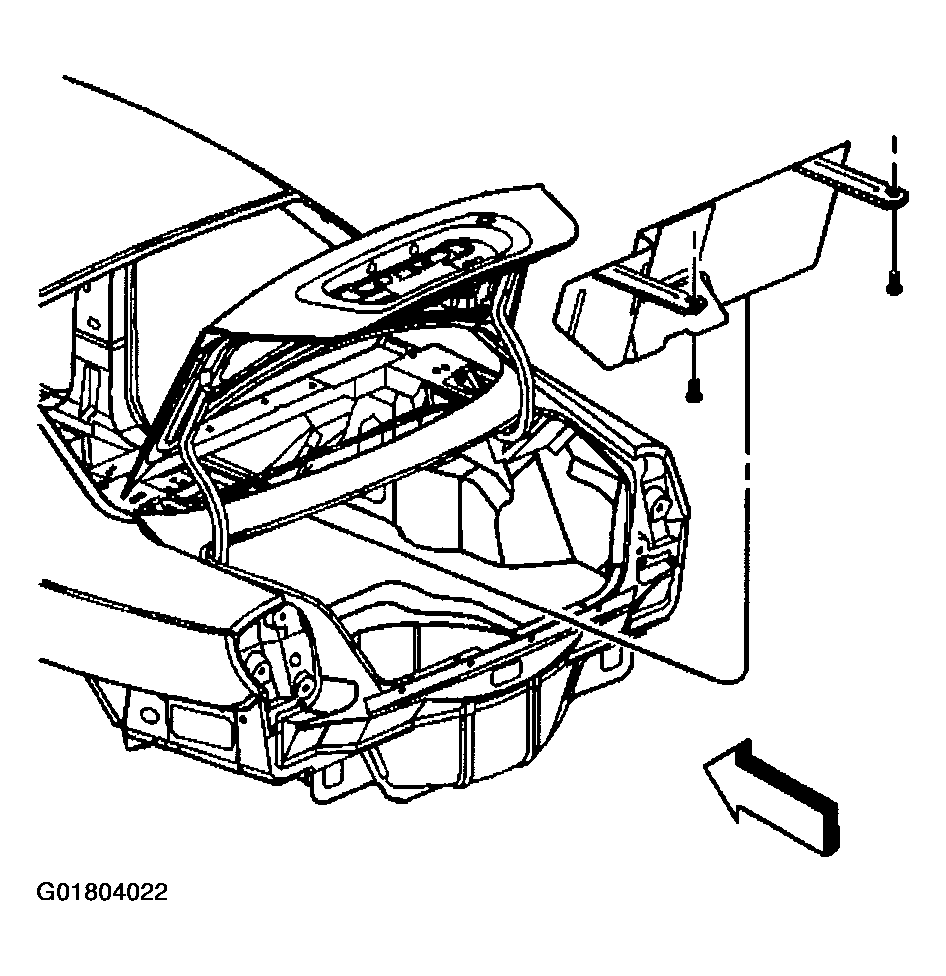

    Fig 1: Installing Rear Compartment Front Trim Panel
    G01804022Courtesy of GENERAL MOTORS CORP.
  3. Install the rear compartment side trim panels (1, 3).
  4. Install the rear compartment side trim panel retainers.
  5. Install the rear compartment floor trim panel (2).
  6. Install the rear compartment floor trim panel retainers.
  7. Install the rear compartment sill plate. Refer to Compartment Sill Plate Replacement-Rear  .

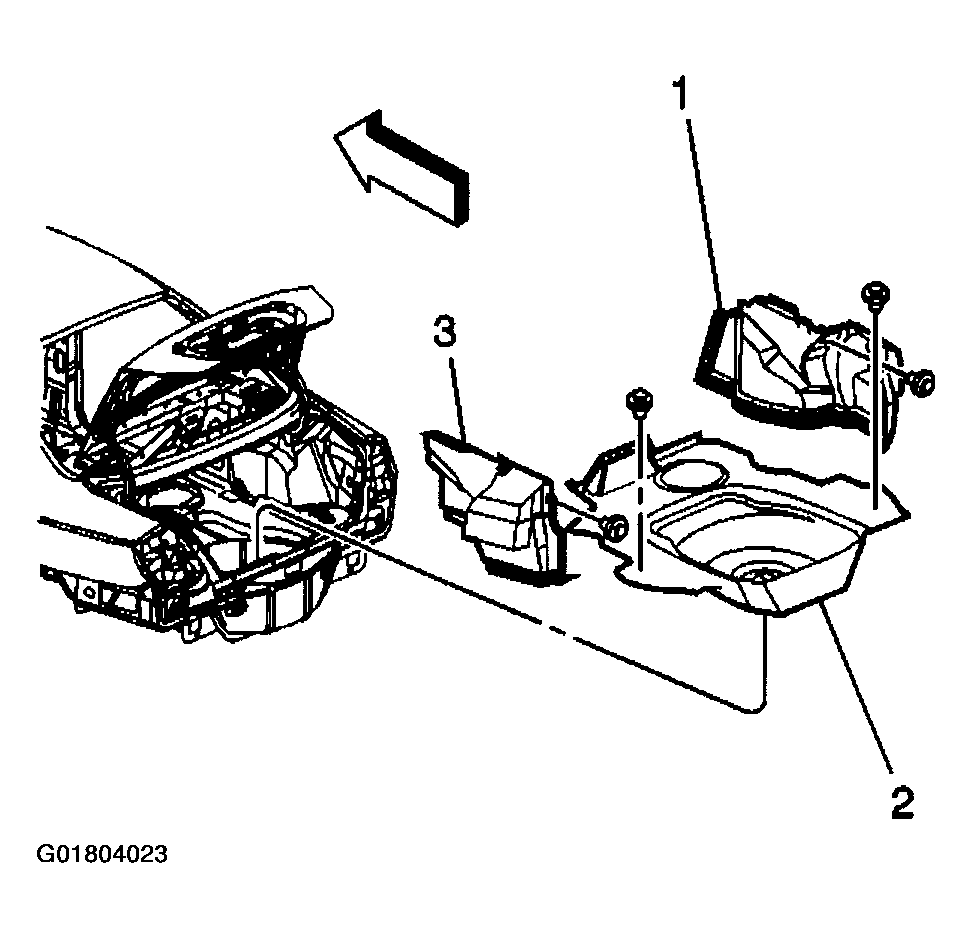

    Fig 2: Installing Rear Compartment Side Trim Panels
    G01804023Courtesy of GENERAL MOTORS CORP.
