Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sill plate retainers (1,2).
  2. Pull upward on the sill plate (3) to release the spring clips and remove the sill plate from the vehicle.

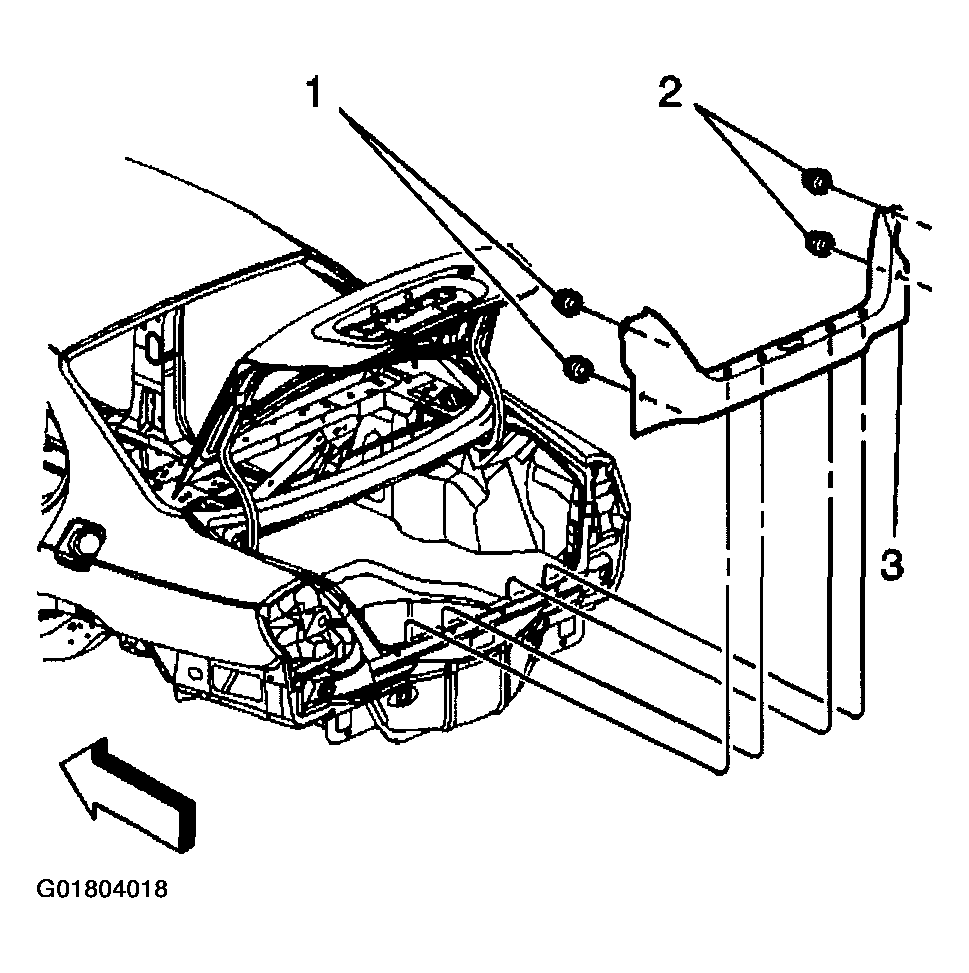

    Fig 1: Removing Compartment Sill Plate
    G01804018Courtesy of GENERAL MOTORS CORP.
