Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment sill plate (3) to the vehicle.
    1. 1.1. Align the sill plate spring clips with their slots.
    2. 1.2. Push downward and snap the sill plate into place.
  2. Install the sill plate retainers (1, 2).

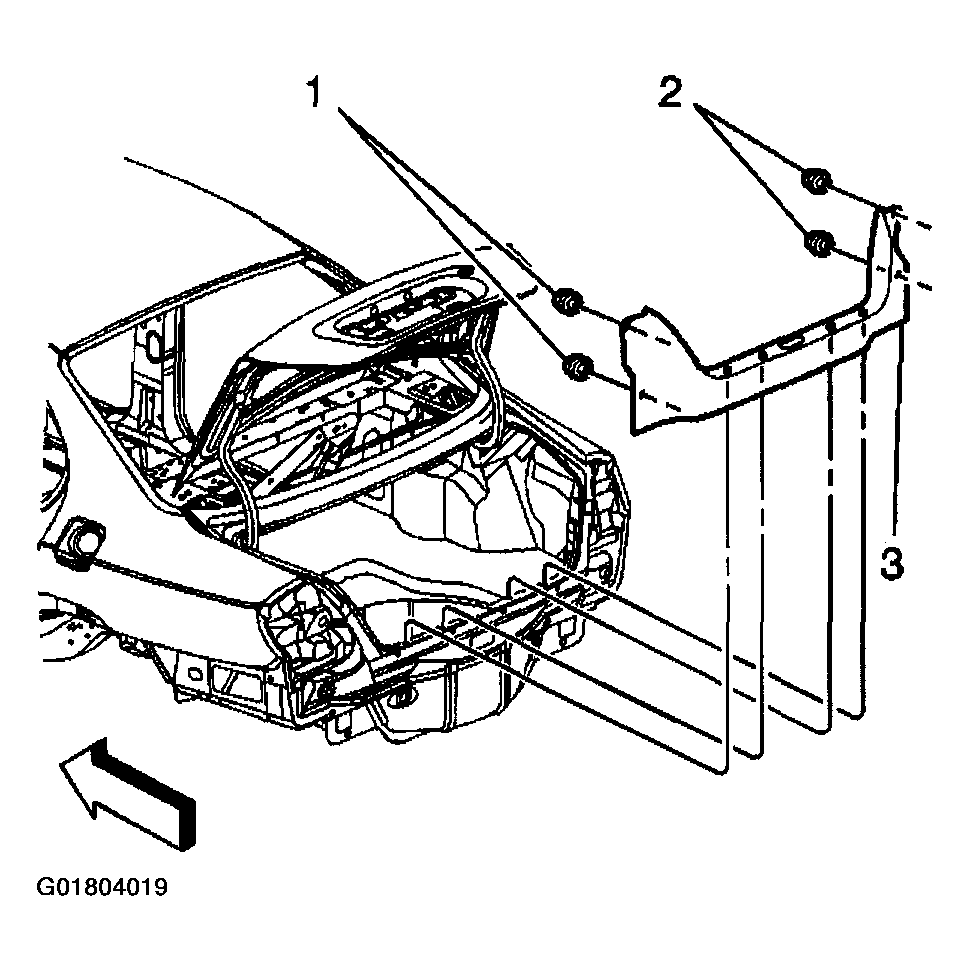

    Fig 1: Installing Compartment Sill Plate
    G01804019Courtesy of GENERAL MOTORS CORP.
