Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid trim assembly (1) to the rear compartment inner lid.
  2. Install the top 2 push-in retainers (2) first.
  3. Install the remaining push-in retainers in order to secure the trim assembly (1) to the inner lid.
  4. Check and assure proper fit to the compartment lid.
  5. Check and correct any visible gaps around the perimeter of the rear compartment trim.

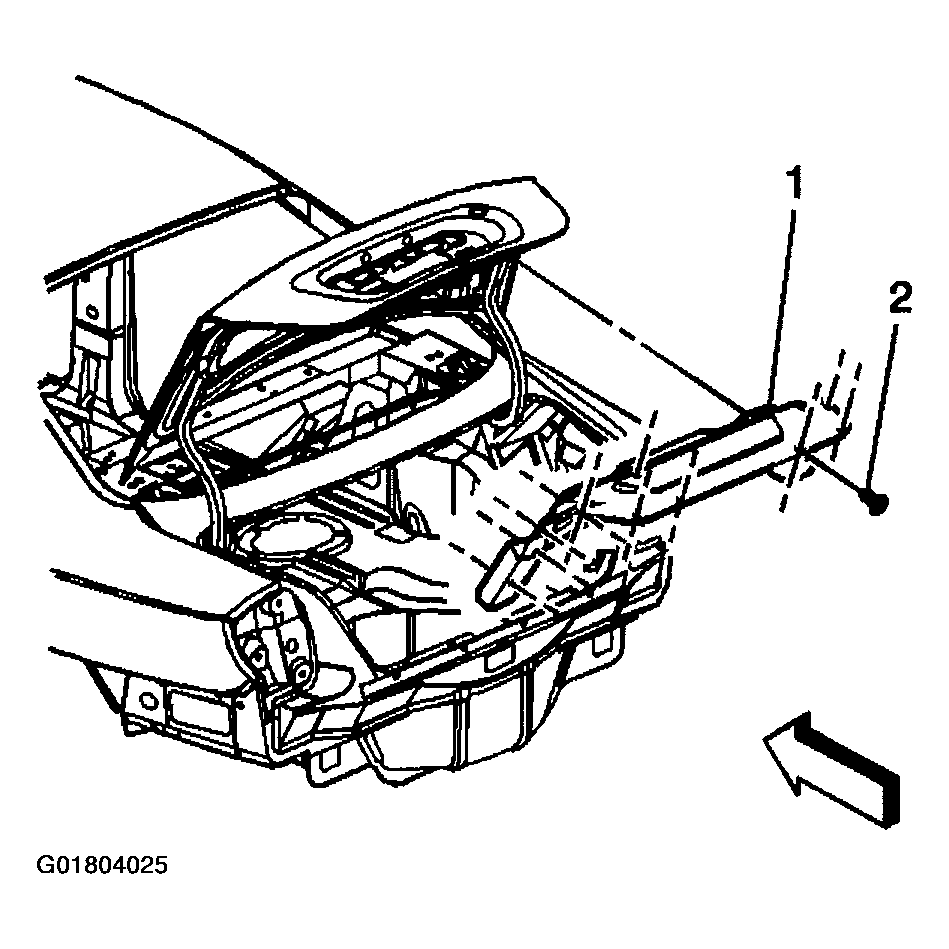

    Fig 1: Installing Rear Compartment Lid Trim
    G01804025Courtesy of GENERAL MOTORS CORP.
