Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .
  2. Remove the rear compartment lid latch assembly. Refer to Latch Replacement - Rear Compartment Lid (w/o Inside Release Handle)  .
  3. Disconnect the electrical connectors from the rear compartment lid latch assembly.
  4. Disconnect the wiring harness from the rear compartment lid (1).
  5. Remove the bolts (2, 4) retaining the lid (1) to the hinges (3).
  6. Remove the rear compartment lid (1) from the vehicle, with the aid of an assistant.

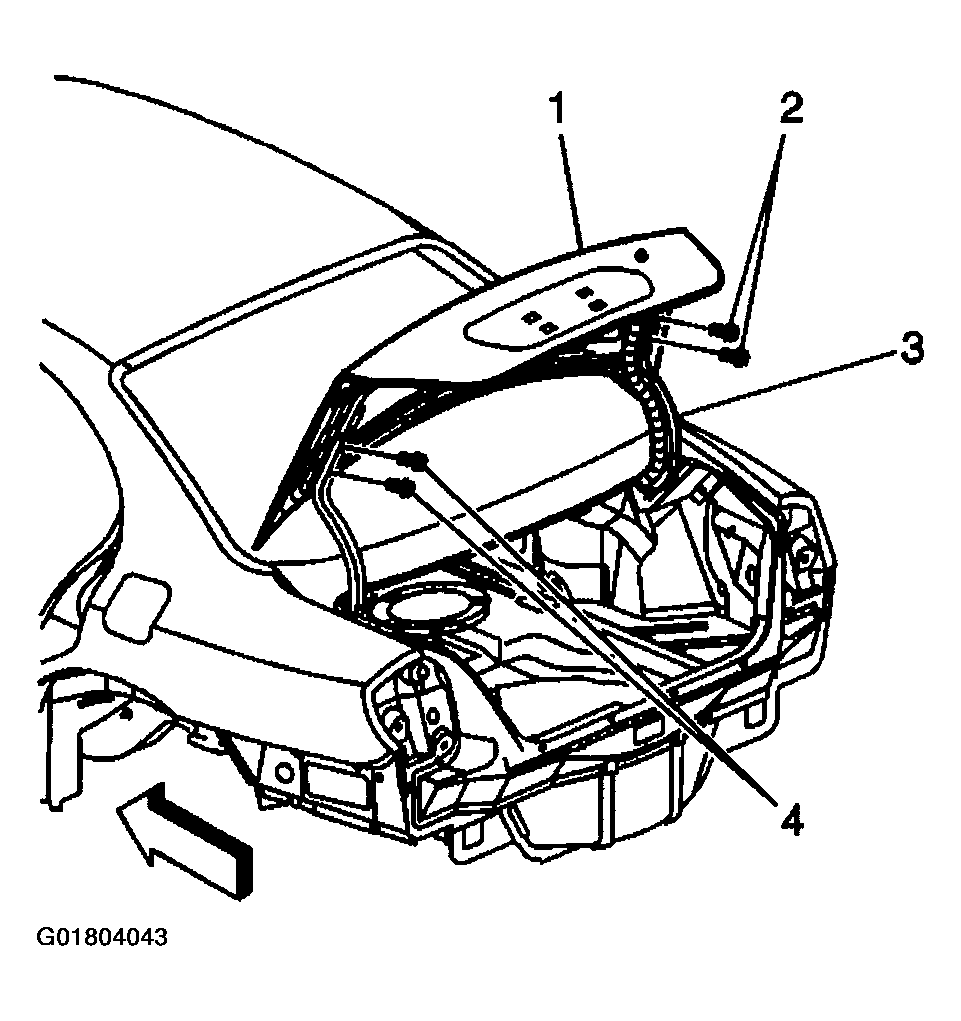

    Fig 1: Removing Rear Compartment Lid
    G01804043Courtesy of GENERAL MOTORS CORP.
