Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment lid (1) to the vehicle, with the aid of an assistant.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (2, 4) in order to retain the lid (1) to the hinges (3).

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

  3. Connect the wiring harness to the rear compartment lid (1).
  4. Connect the electrical connectors to the rear compartment lid latch assembly.
  5. Install the rear compartment lid latch assembly. Refer to Latch Replacement - Rear Compartment Lid (w/o Inside Release Handle)  .
  6. Install the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .

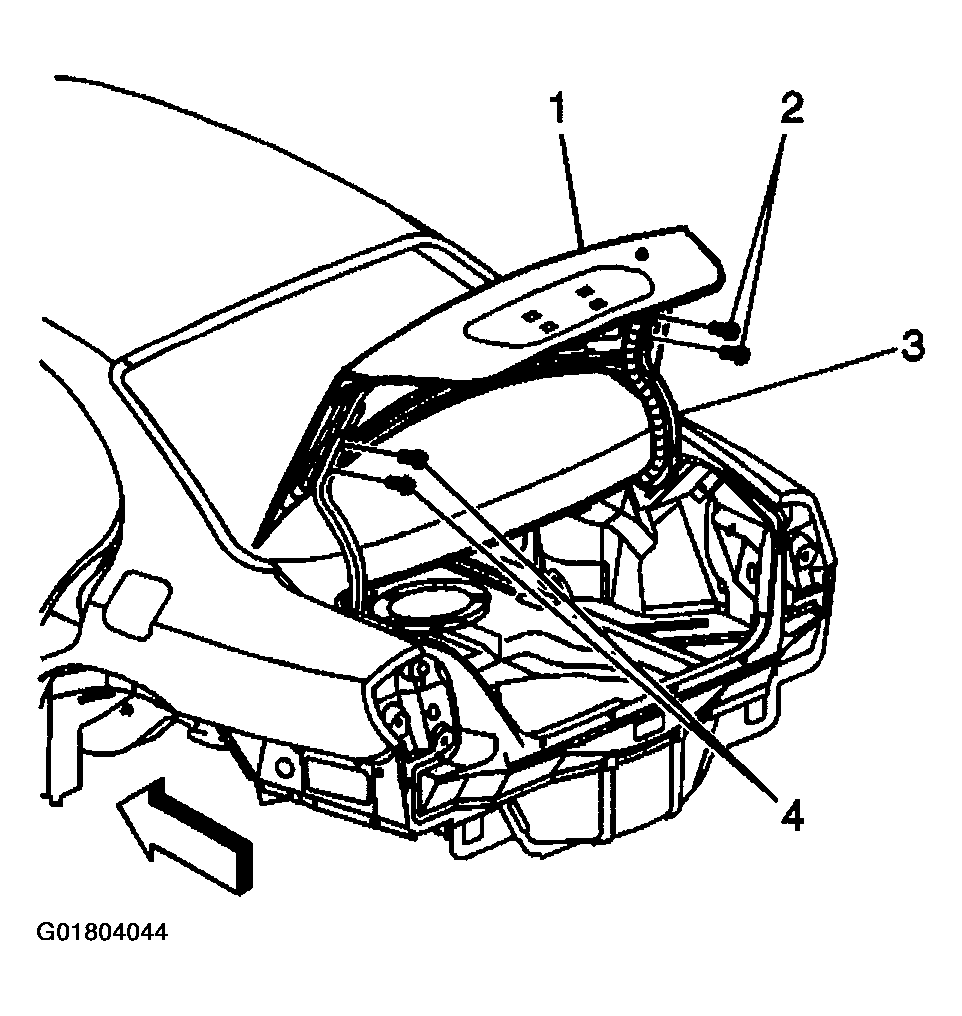

    Fig 1: Installing Rear Compartment Lid
    G01804044Courtesy of GENERAL MOTORS CORP.
