Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .
  2. Remove the 5 fasteners that retain the applique to the rear compartment lid.
  3. Remove the applique from the vehicle.

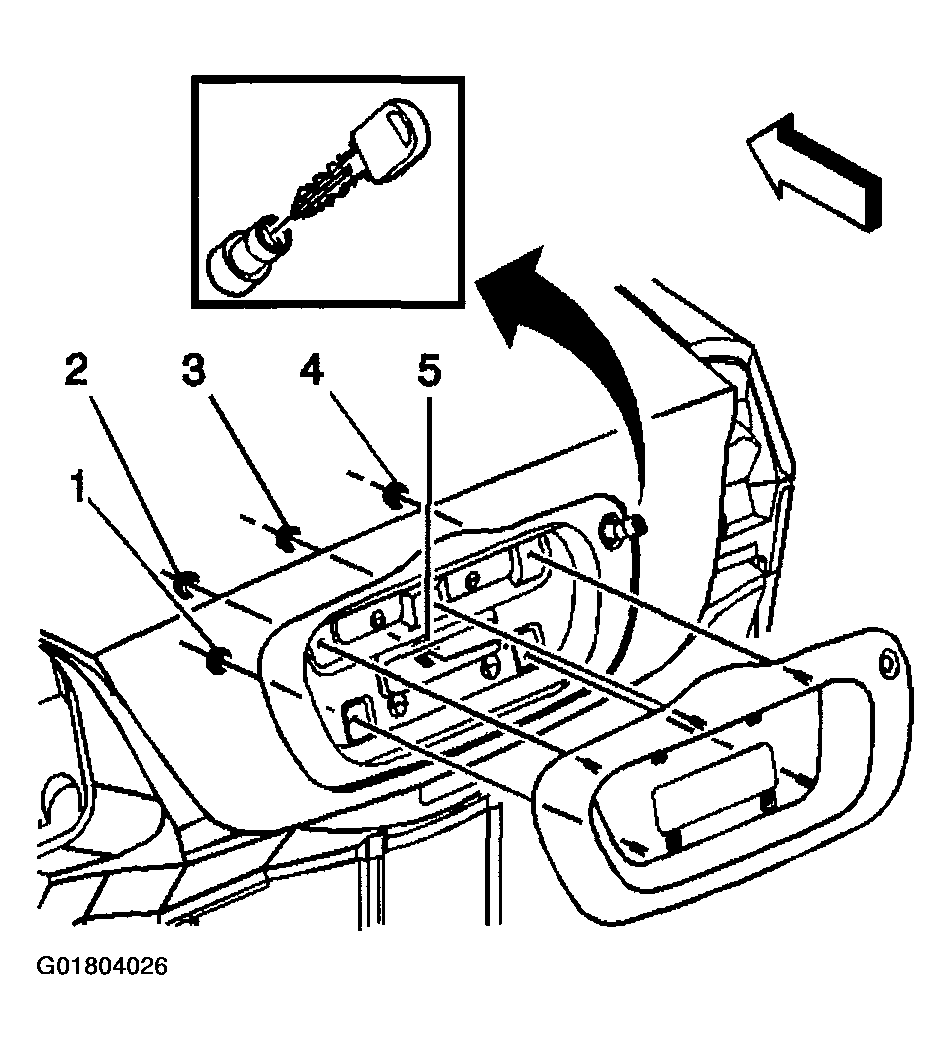

    Fig 1: Removing Compartment Lid Applique
    G01804026Courtesy of GENERAL MOTORS CORP.
