Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the applique to the rear compartment lid.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fasteners (1-5) in order to secure the applique to the rear compartment lid.

    Tighten the fasteners in the following order (3, 2, 4, 1, 5).

    Tighten

    Tighten the fasteners to 5 N.m (44 lb in).

  3. Install the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .

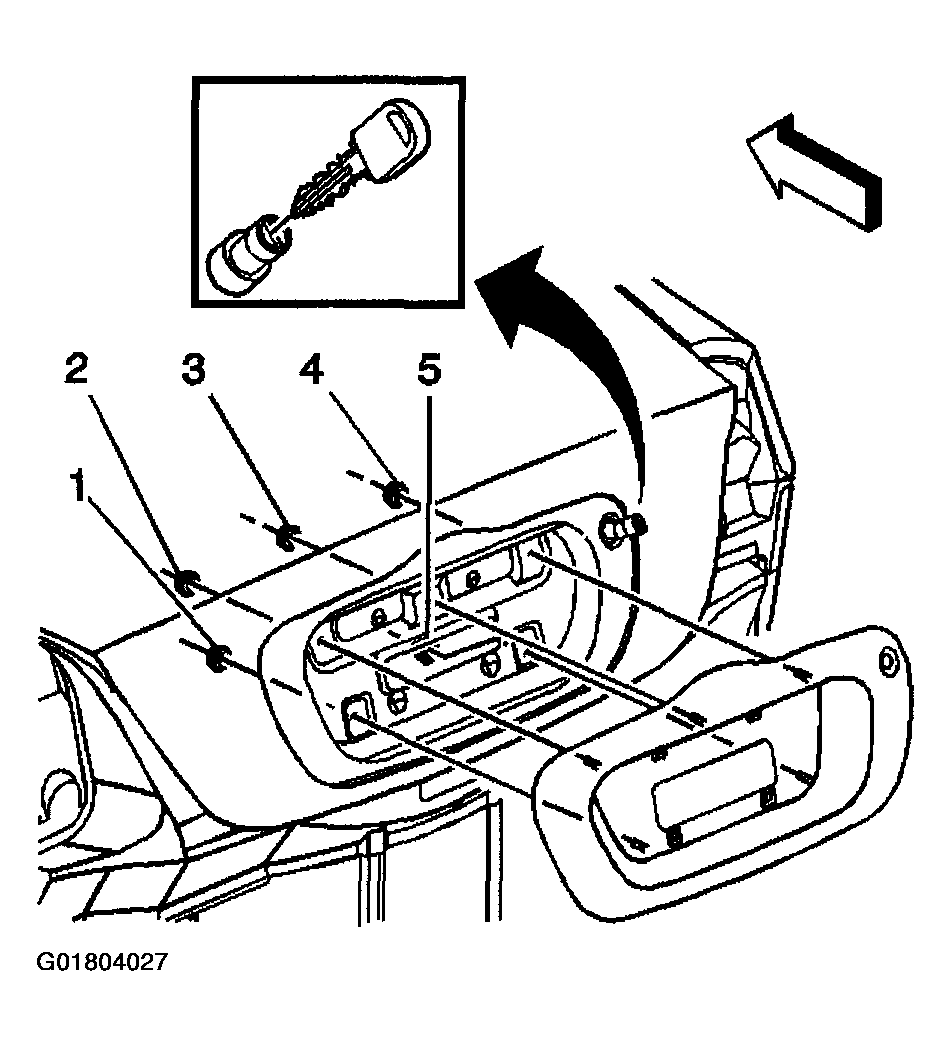

    Fig 1: Installing Compartment Lid Applique
    G01804027Courtesy of GENERAL MOTORS CORP.
