Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly (1). Refer to Headlamp Replacement .
  2. Disconnect the electrical connector from the bulb socket (2).
  3. Remove the bulb and socket (2) from the headlamp assembly (1).
  4. Remove the bulb from the socket.

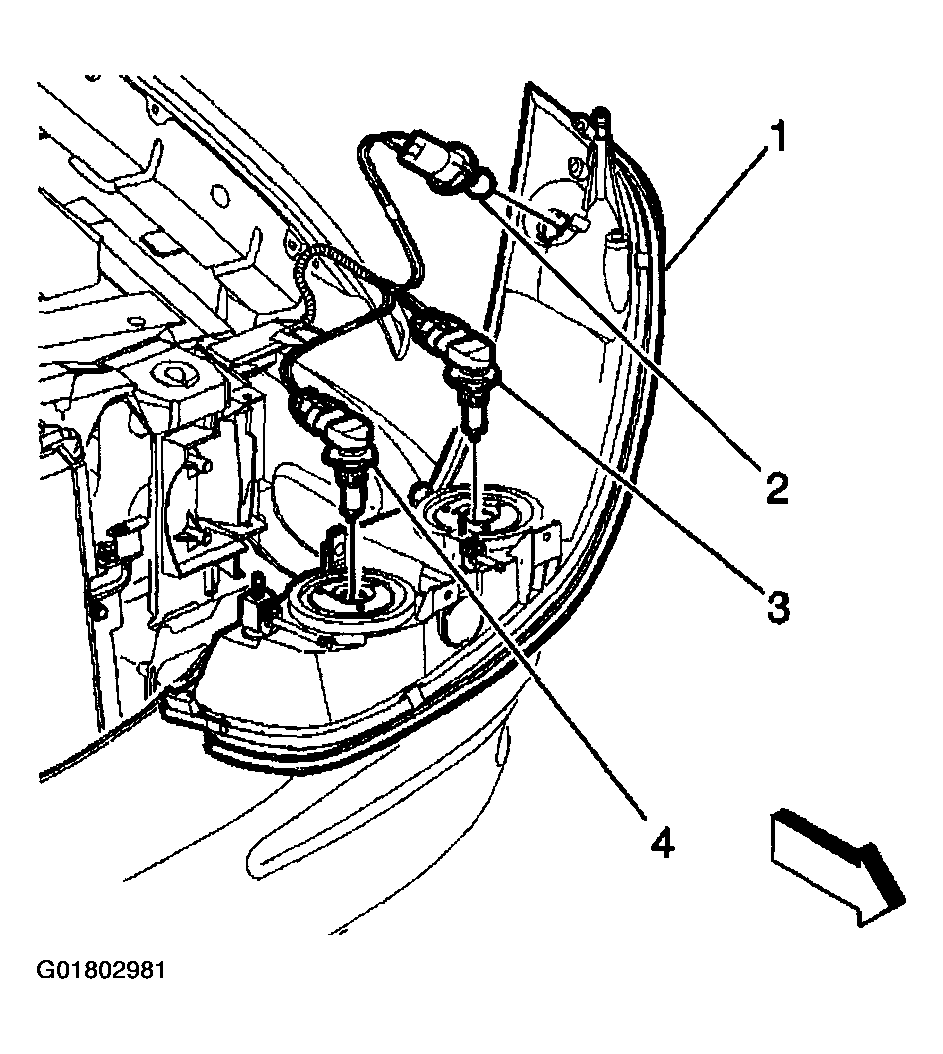

    Fig 1: Removing Park/Turn Signal Lamp Bulb
    G01802981Courtesy of GENERAL MOTORS CORP.
