Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the socket (2).
  2. Install the socket with the bulb (2) to the headlamp assembly (1).
  3. Connect the electrical connector to the bulb socket (2).
  4. Install the headlamp assembly to the vehicle. Refer to Headlamp Replacement . .

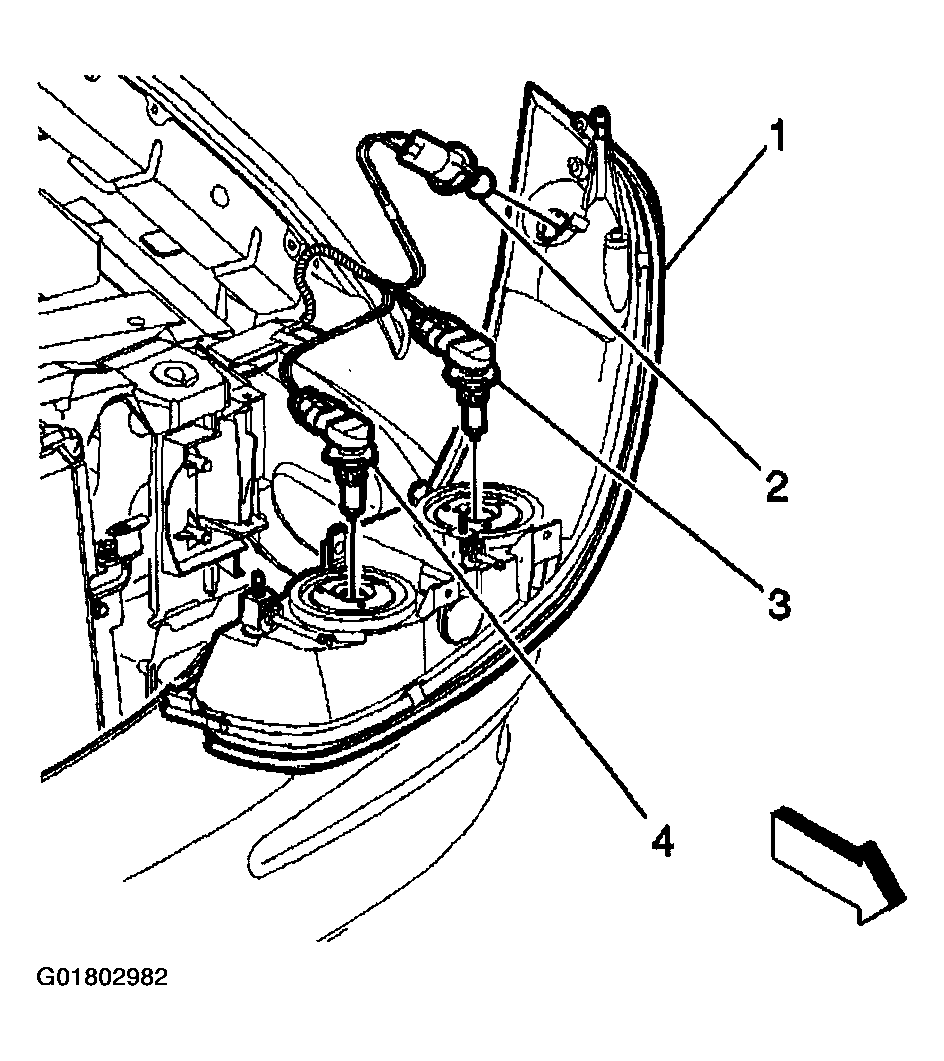

    Fig 1: Installing Park/Turn Signal Lamp Bulb
    G01802982Courtesy of GENERAL MOTORS CORP.
