Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners (3) securing the license lamp housing (1) to the compartment lid.
  2. Remove the license lamp housing (1) from the rear compartment lid.
  3. Remove the license lamp bulb socket (2) from the license lamp housing (1) by turning 1/4 turn counterclockwise.

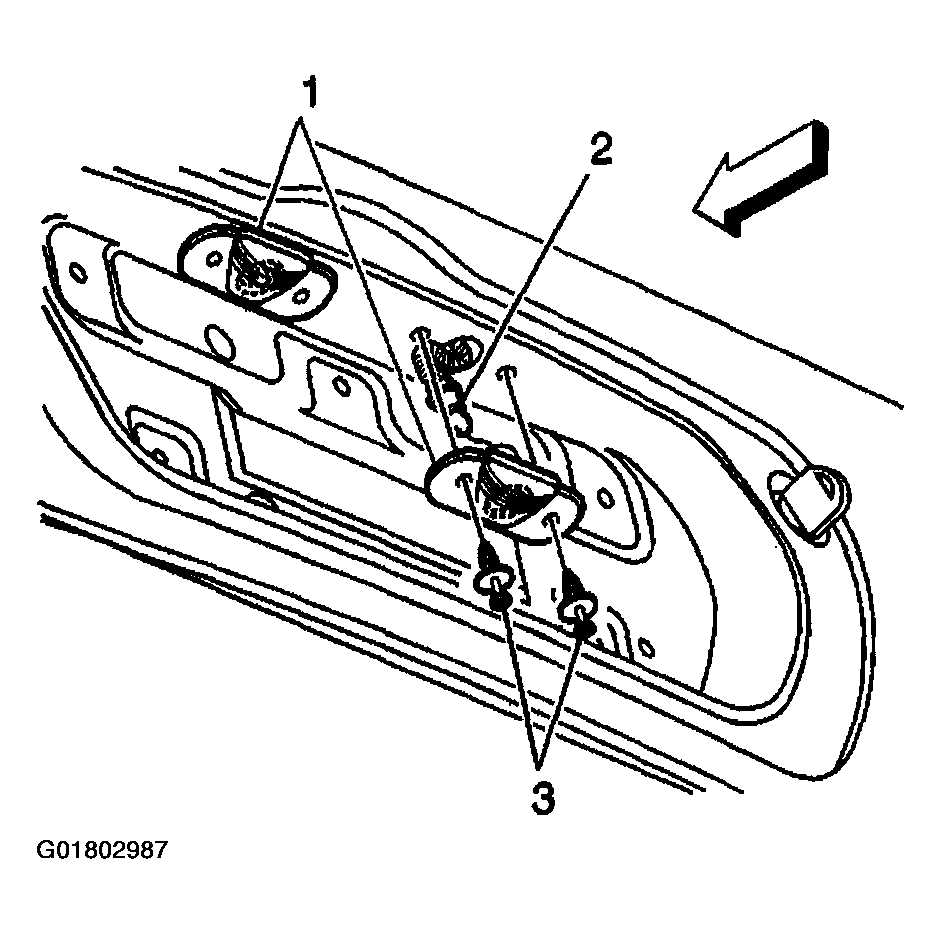

    Fig 1: Removing License Lamp
    G01802987Courtesy of GENERAL MOTORS CORP.
