Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license lamp bulb socket (2) into the license lamp housing (1) by turning 1/4 turn clockwise to secure.
  2. Position the license lamp housing (1) into the rear compartment lid.
  3. Install the license lamp housing fasteners (3) in order to secure the license lamp housing (1) to the rear compartment lid.

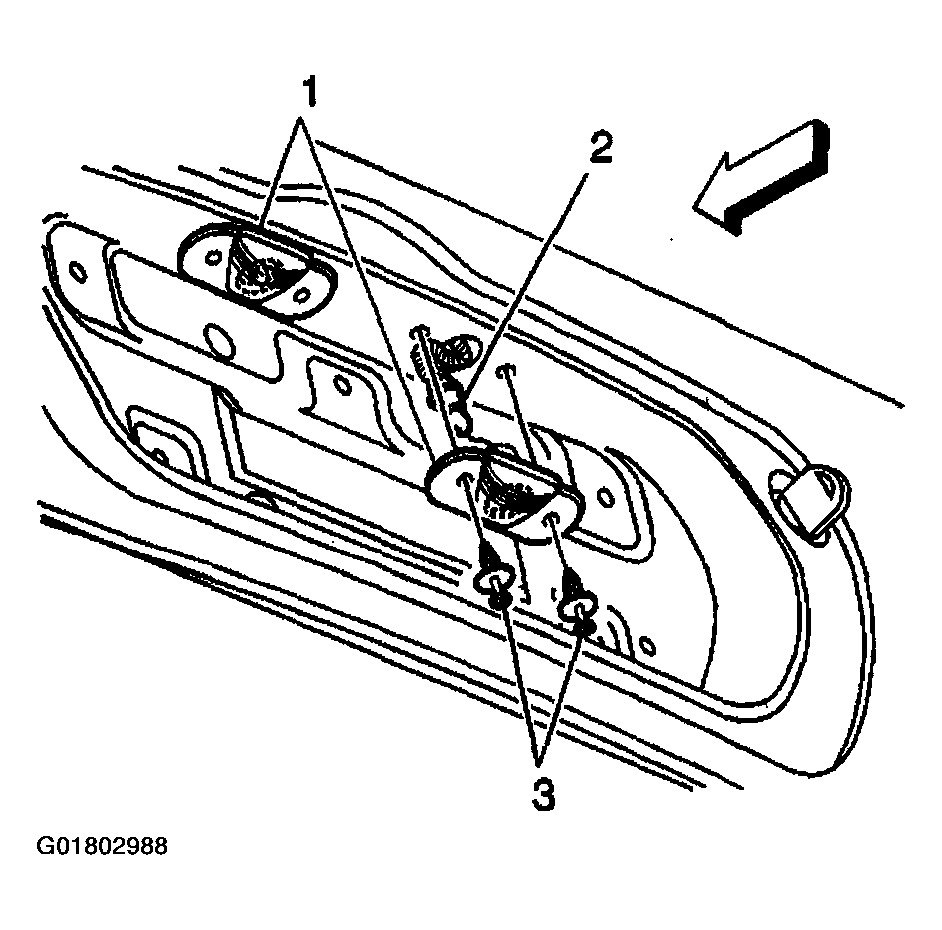

    Fig 1: Installing License Lamp
    G01802988Courtesy of GENERAL MOTORS CORP.
