Removal procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small, flat-bladed tool between the rear edge of the door lamp and the door trim panel and gently pry the lamp out of the door trim panel.
  2. Disconnect the electrical connector.
  3. Remove the bulb from the door lamp housing.

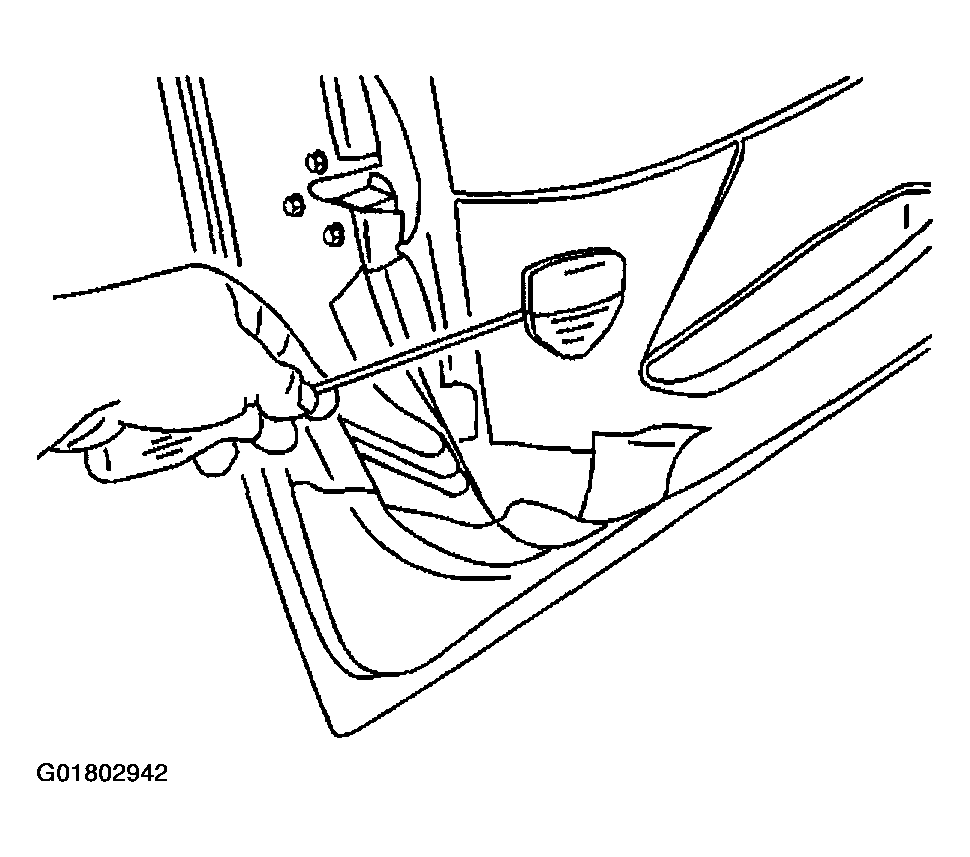

    Fig 1: Removing Door Lamp
    G01802942Courtesy of GENERAL MOTORS CORP.
