Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners (1) securing the right closeout insulator panel (3) to the instrument panel retainer.

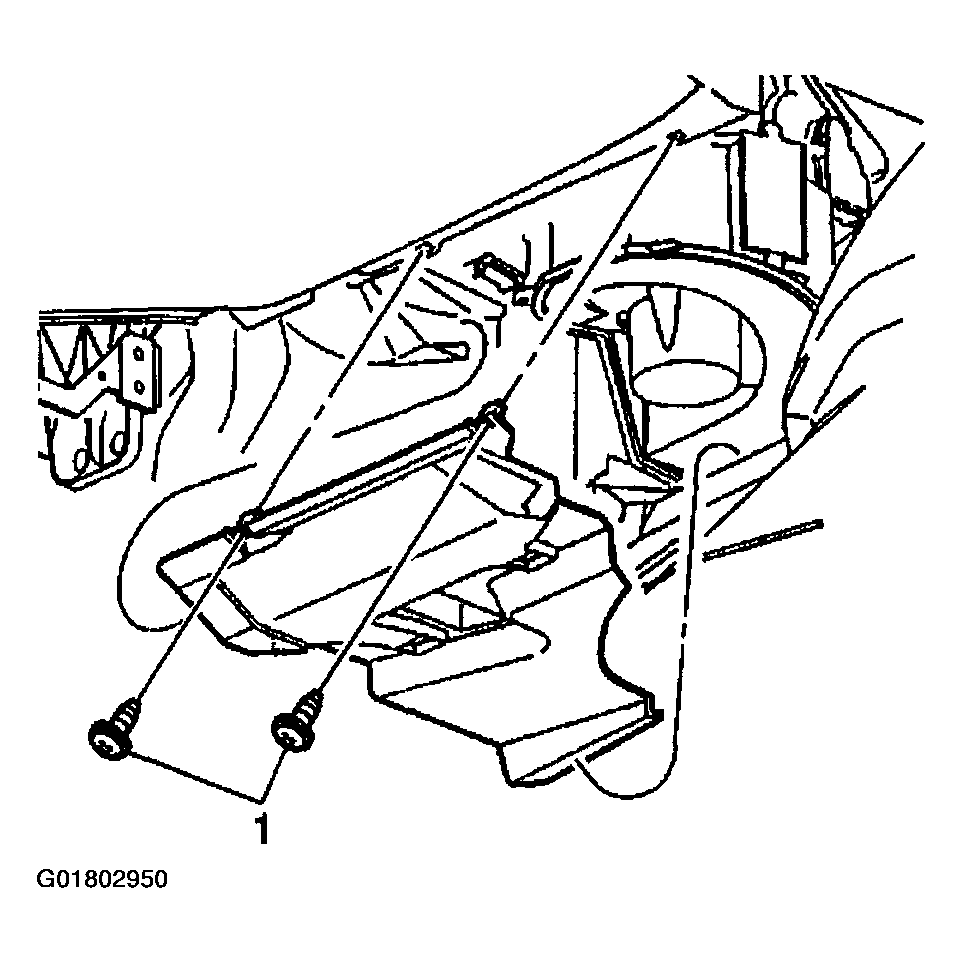

    Fig 1: Removing Right Closeout Insulator Panel Fasteners
    G01802950Courtesy of GENERAL MOTORS CORP.
  2. Lower the closeout insulator panel (3) in order to gain access to the courtesy lamp.
  3. Disconnect the electrical connector (1) from the courtesy lamp.
  4. Unclip the courtesy lamp from the closeout insulator panel (3).

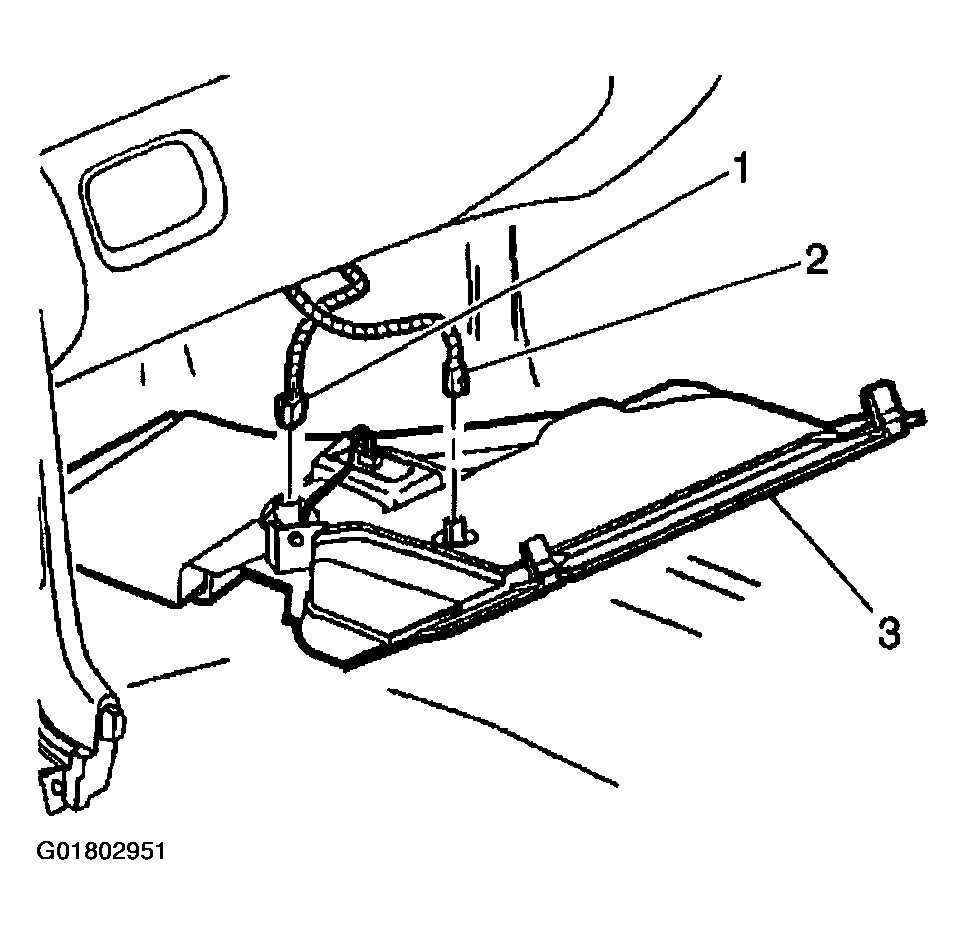

    Fig 2: Removing Right Instrument Panel Courtesy Lamp
    G01802951Courtesy of GENERAL MOTORS CORP.
