Removal procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Ignition Switch. Refer to IGNITION SWITCH REPLACEMENT .
  2. Remove the Ignition lock cylinder lamp bulb socket (1) by turning counterclockwise 1/4 turn.
  3. Remove the bulb from the socket.

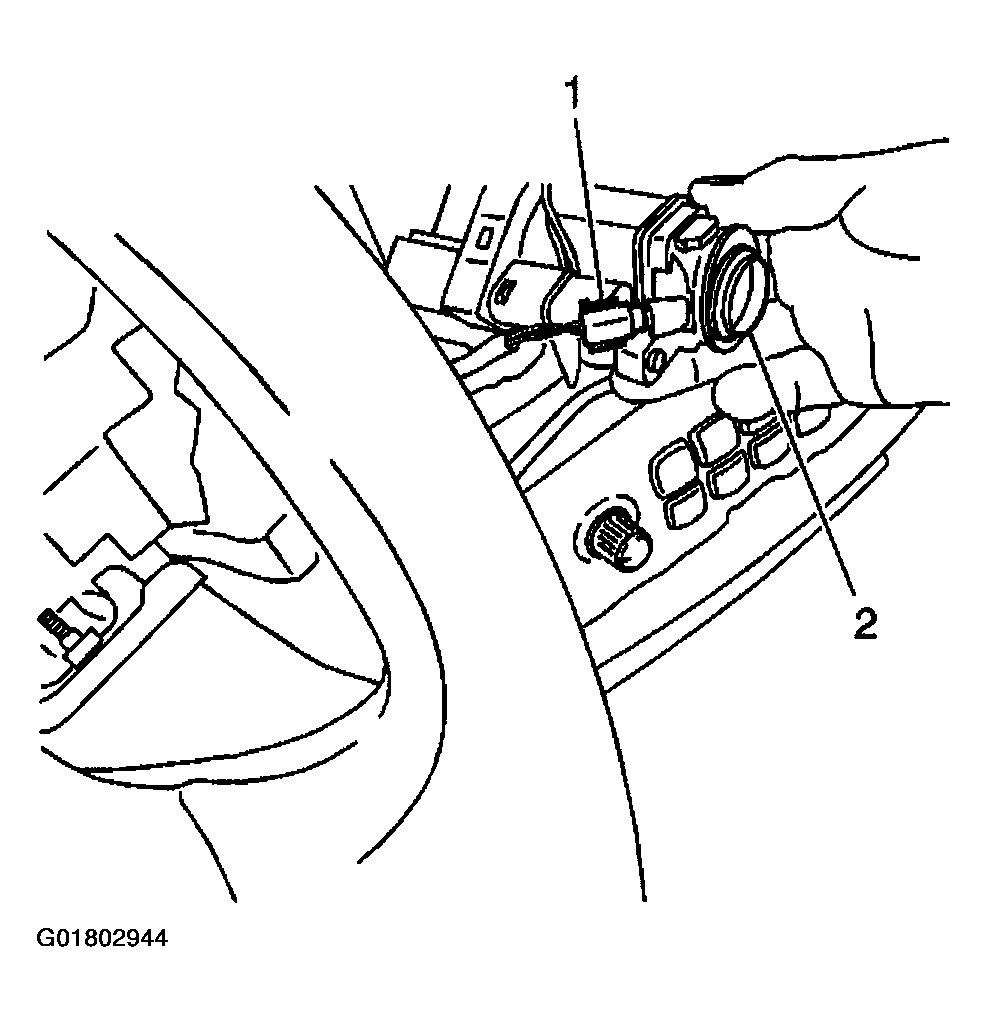

    Fig 1: Removing Ignition Cylinder Lamp Bulb
    G01802944Courtesy of GENERAL MOTORS CORP.
