Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Ignition lock cylinder lamp bulb into the lamp socket (1).
  2. Install the Ignition lock cylinder lamp bulb socket by turning clockwise 1/4 turn.
  3. Install the Ignition Switch. Refer to IGNITION SWITCH REPLACEMENT .

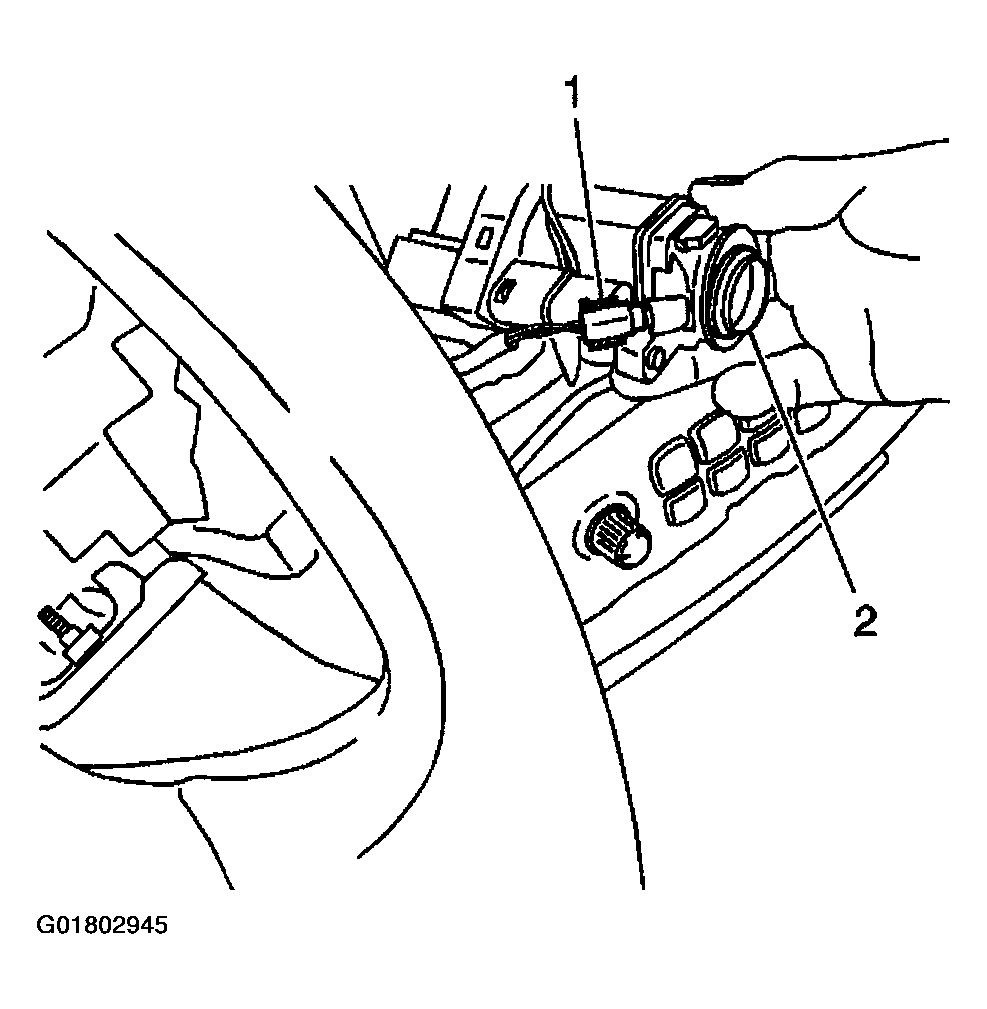

    Fig 1: Installing Ignition Cylinder Lamp Bulb
    G01802945Courtesy of GENERAL MOTORS CORP.
