WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

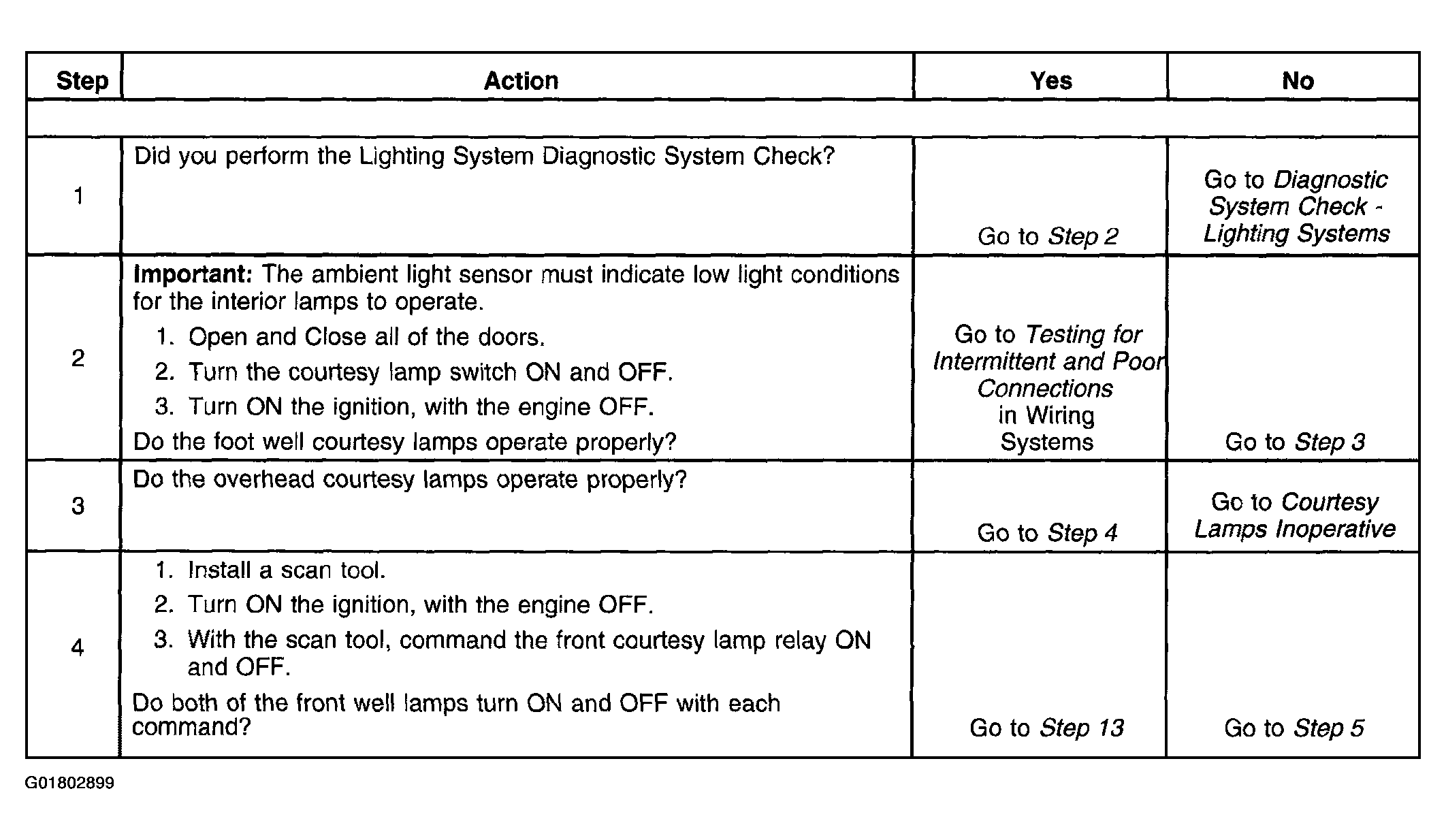

Fig 1: Illuminated Entry Lamps Inoperative (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

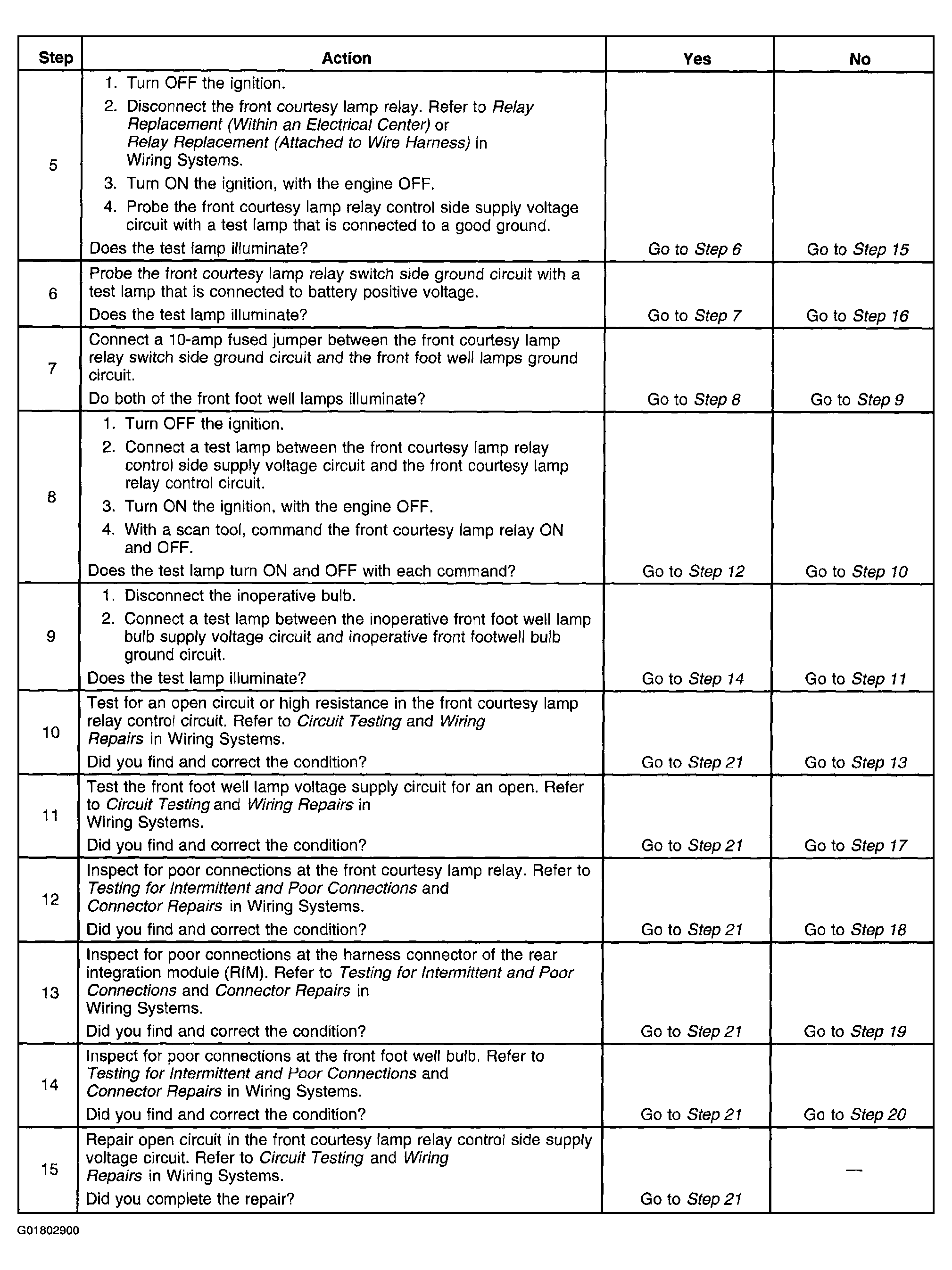

Fig 2: Illuminated Entry Lamps Inoperative (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

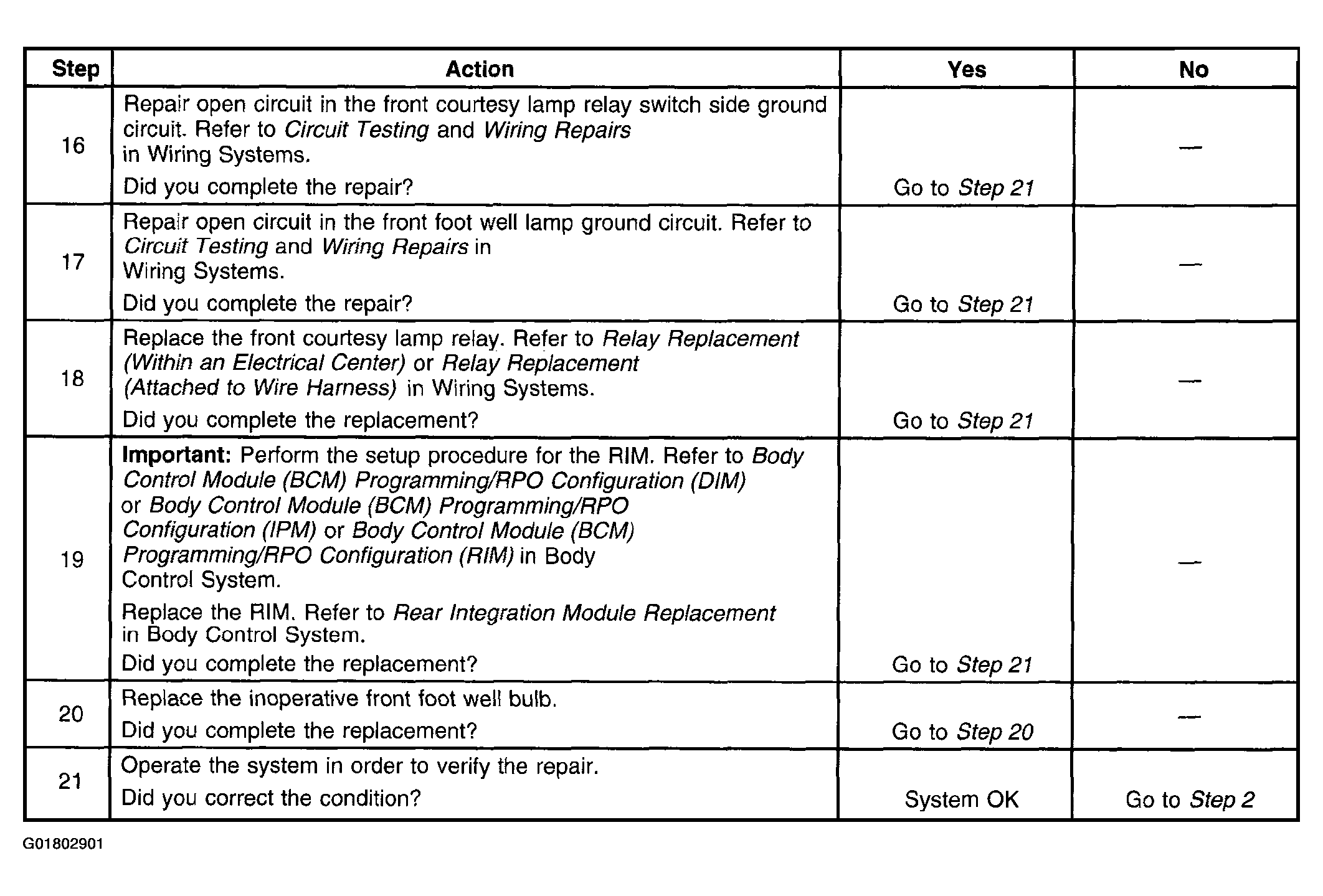

Fig 3: Illuminated Entry Lamps Inoperative (3 Of 3)
