Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

4. Watch for the ignition key cylinder lamp operation. Command both the ON and OFF states. Repeat the commands as necessary.

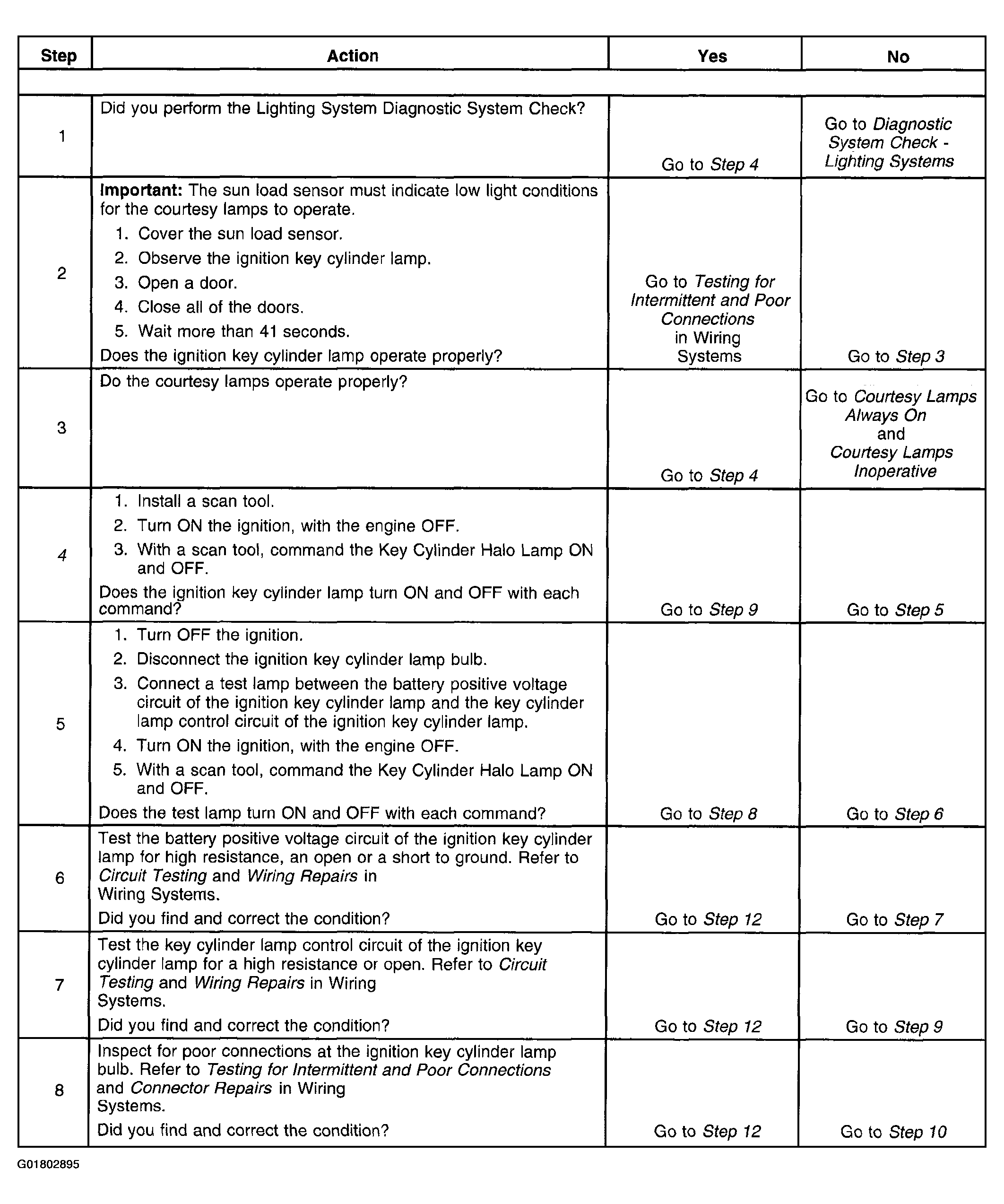

Fig 1: Ignition Lock Cylinder Lamp Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

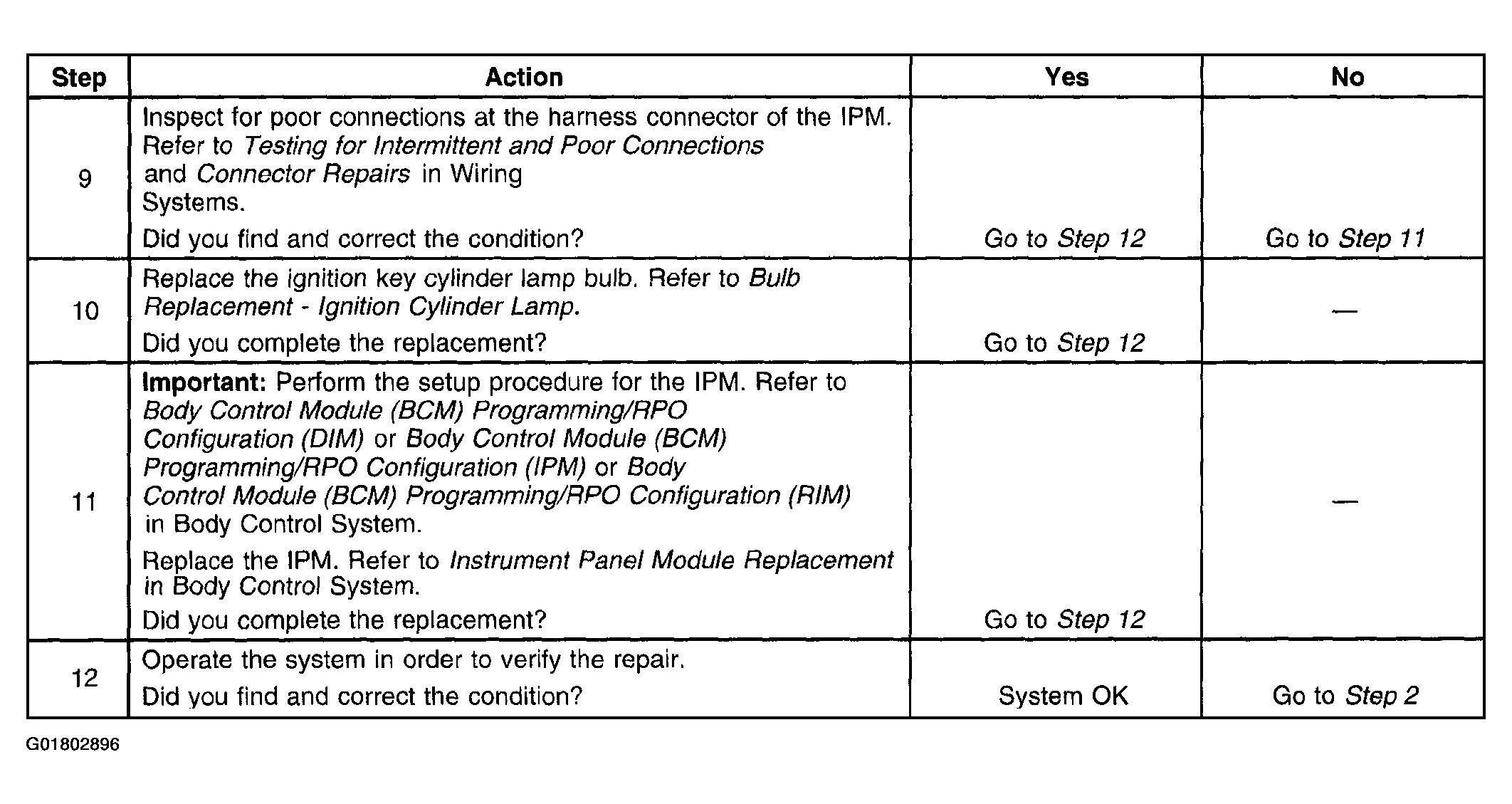

Fig 2: Ignition Lock Cylinder Lamp Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
