High Beam Indicator Inoperative

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

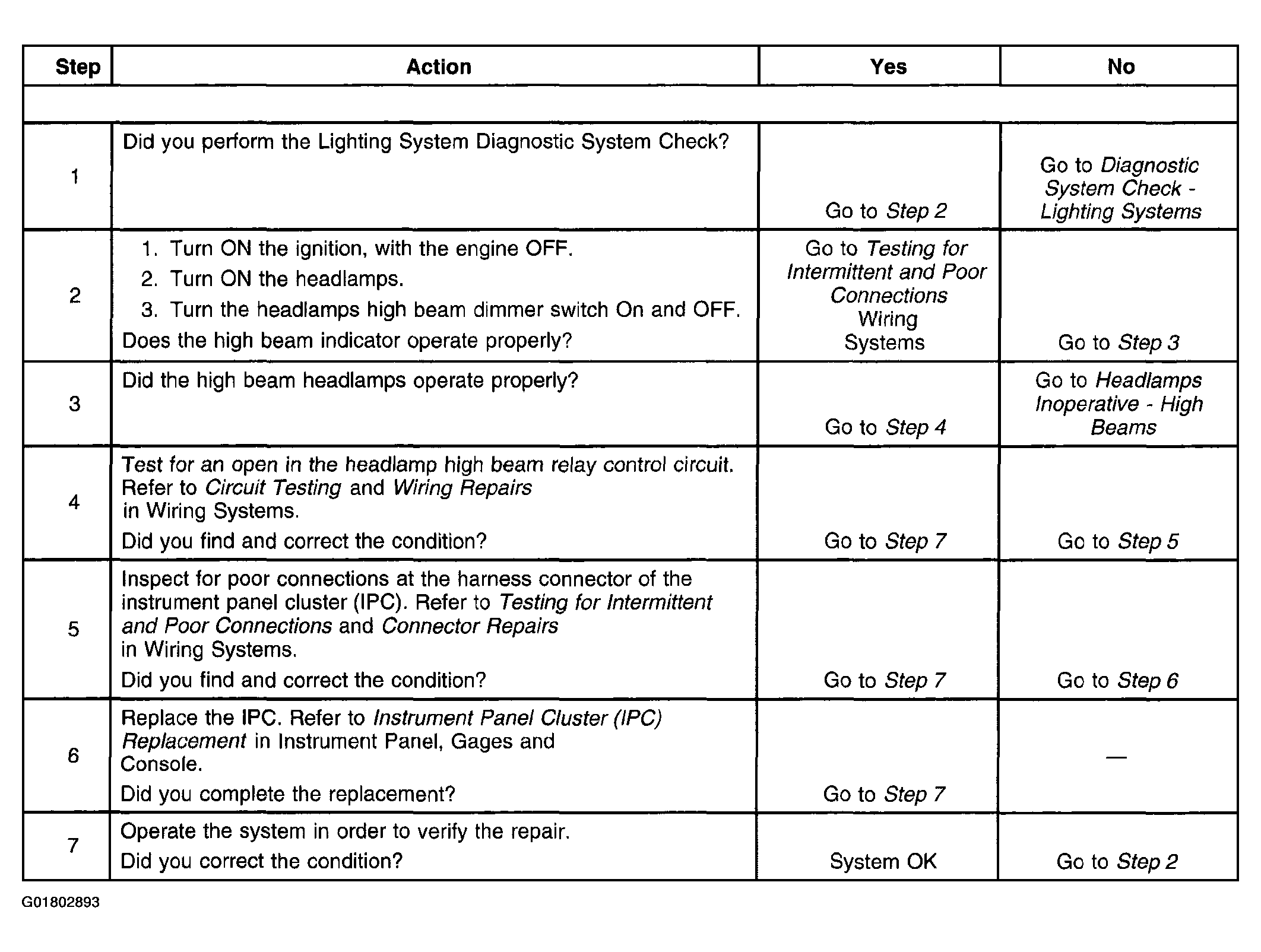

Fig 1: High Beam Indicator Inoperative
G01802893Courtesy of GENERAL MOTORS CORP.
