Fog Lamps Inoperative - Rear

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

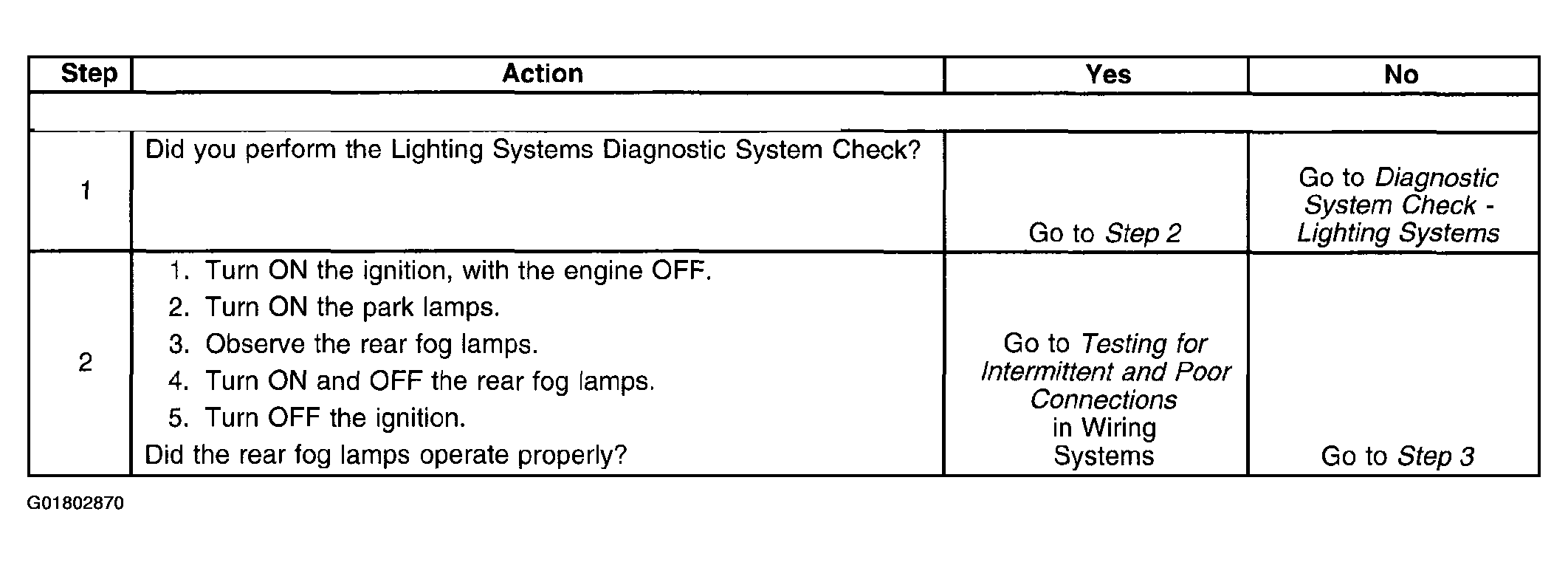

Fig 1: Fog Lamps Inoperative - Rear (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

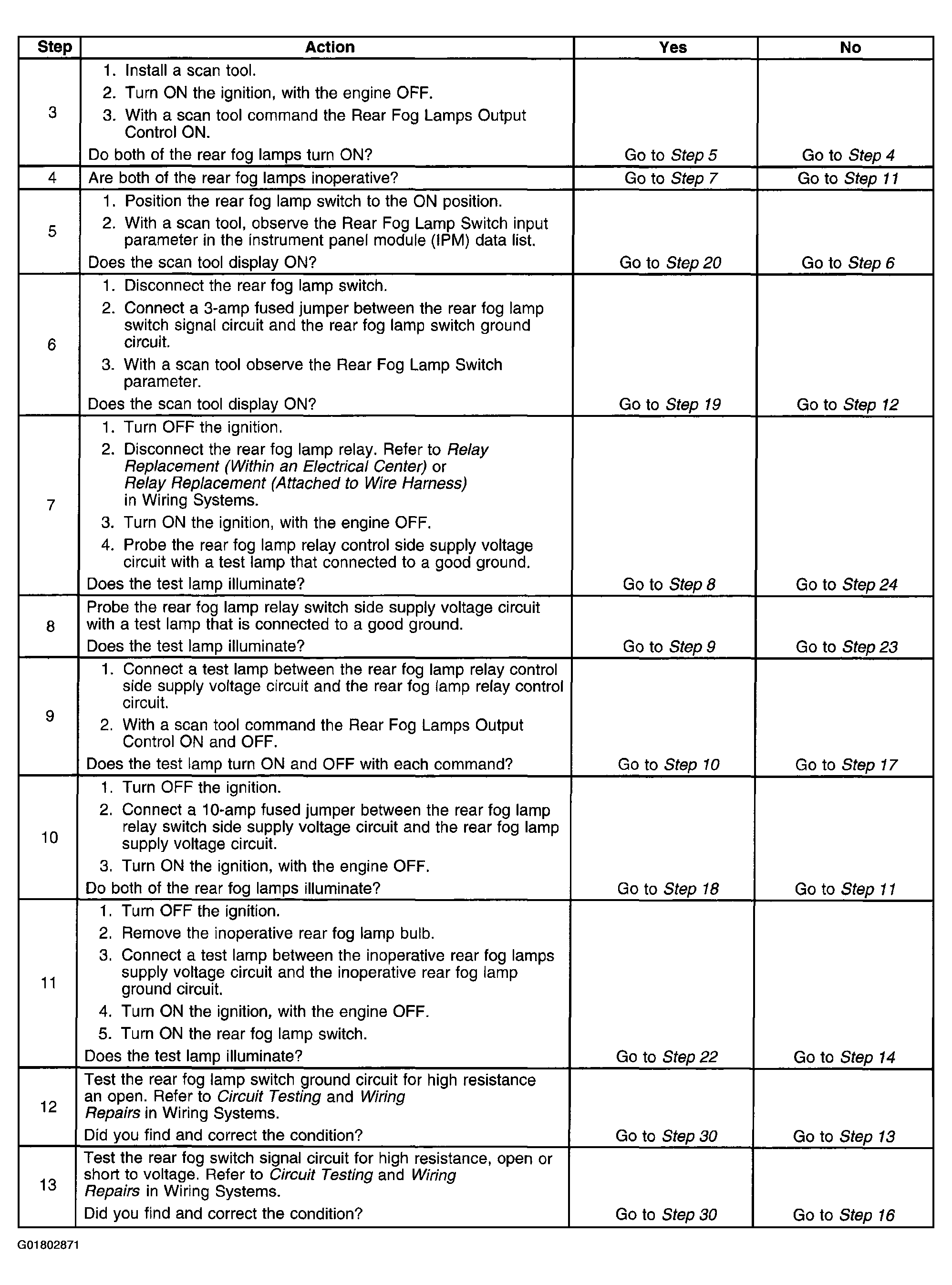

Fig 2: Fog Lamps Inoperative - Rear (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

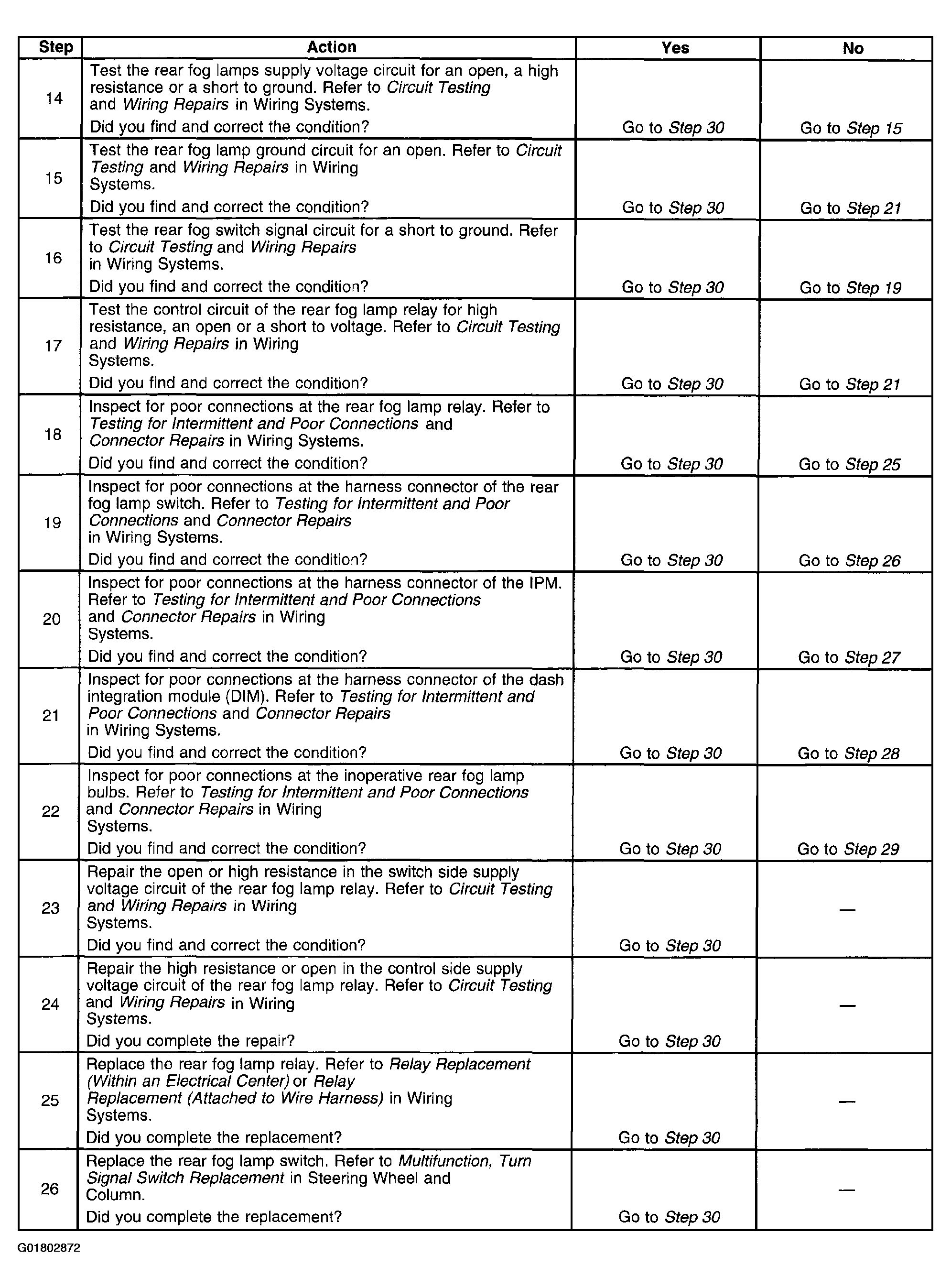

Fig 3: Fog Lamps Inoperative - Rear (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

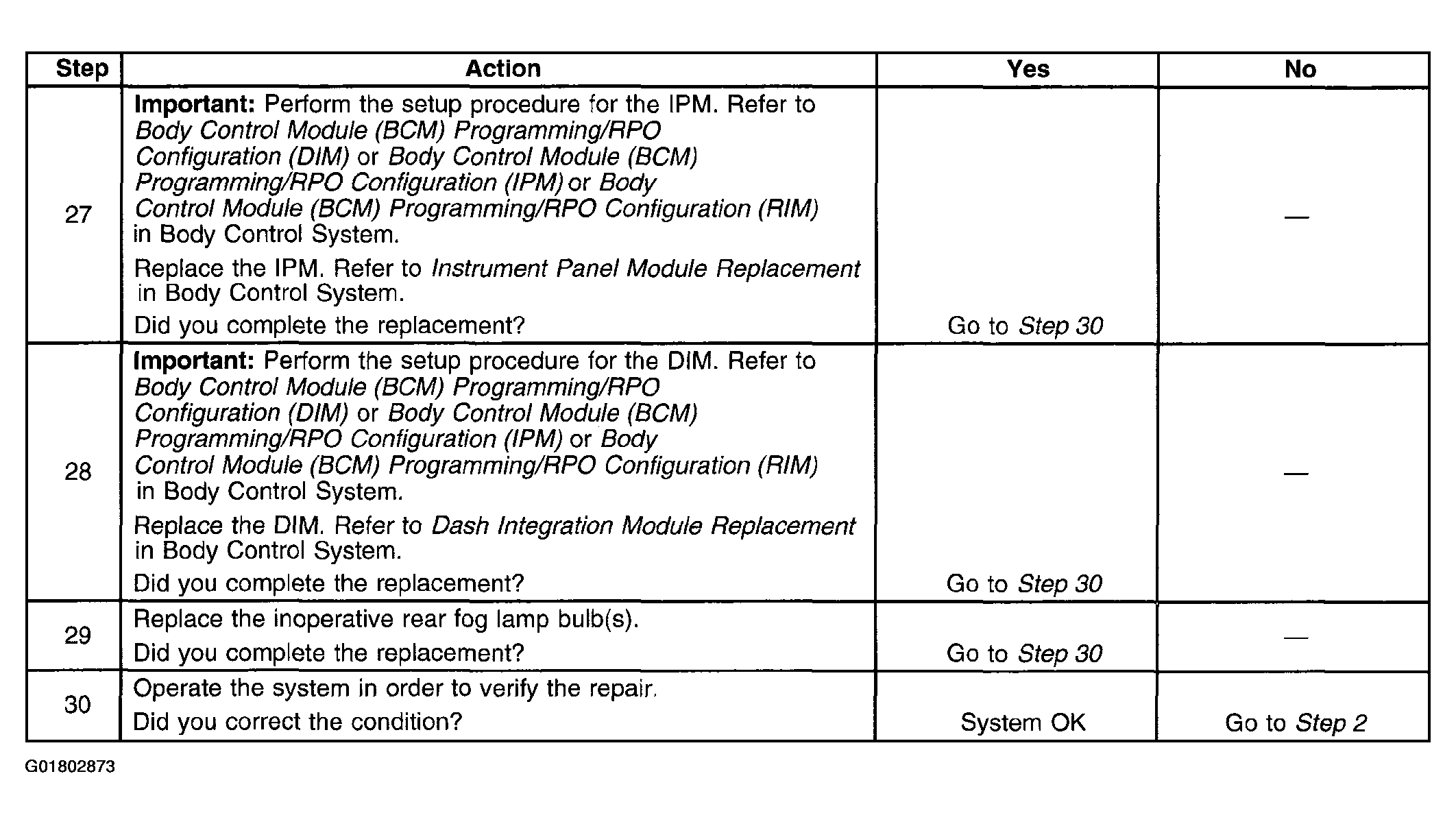

Fig 4: Fog Lamps Inoperative - Rear (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
