Courtesy Lamps Inoperative

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

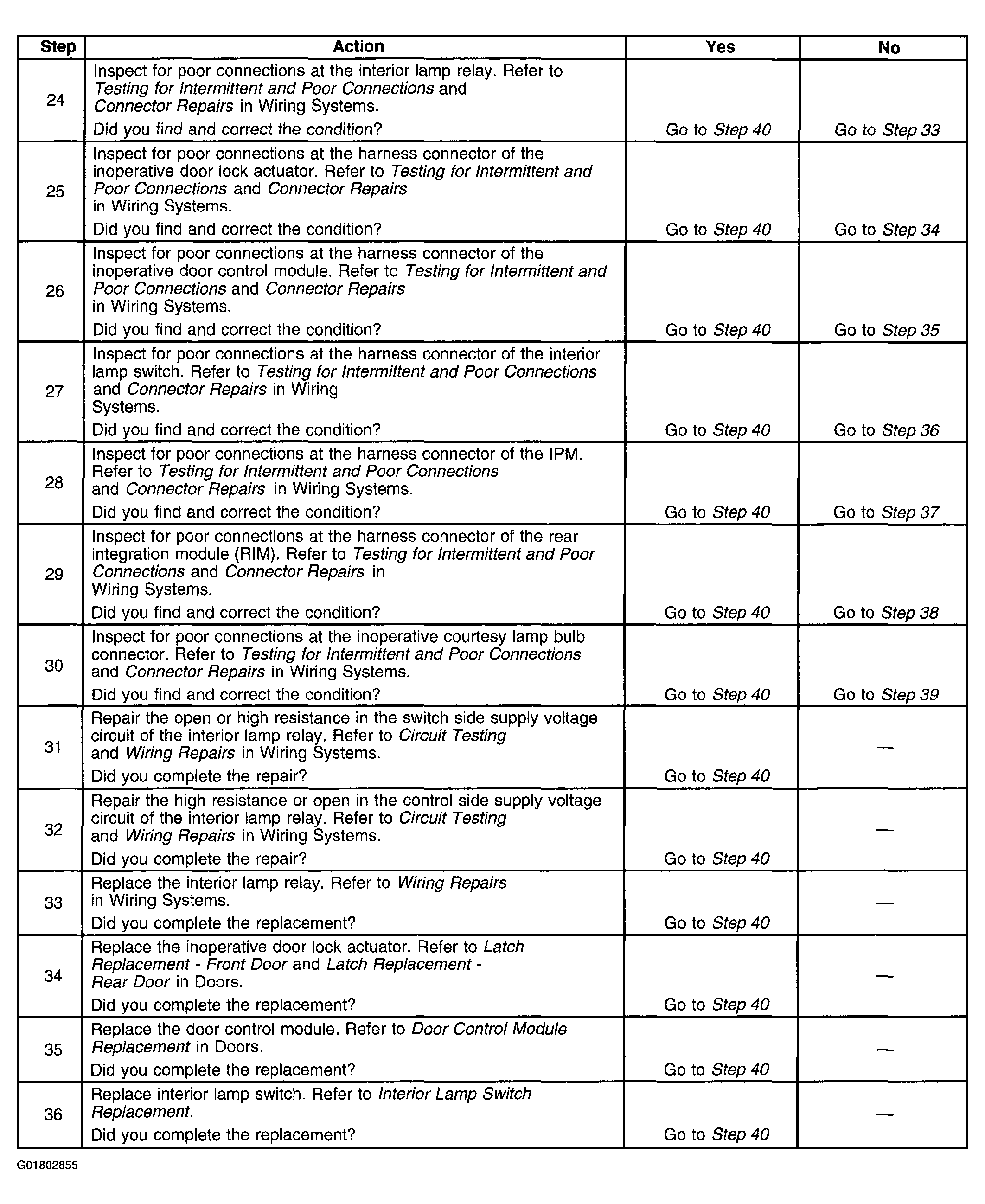

Fig 1: Courtesy Lamps Inoperative (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

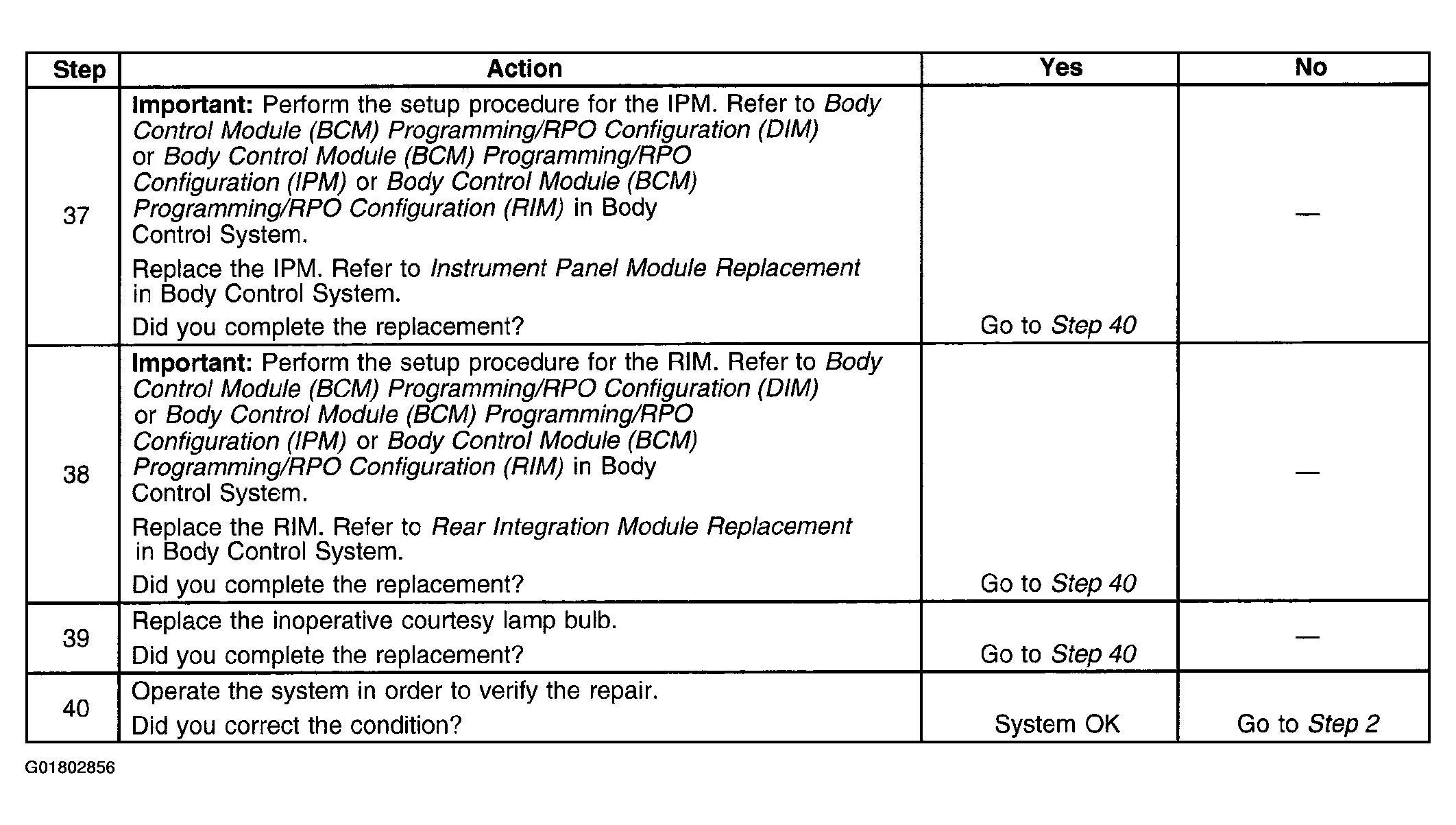

Fig 2: Courtesy Lamps Inoperative (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

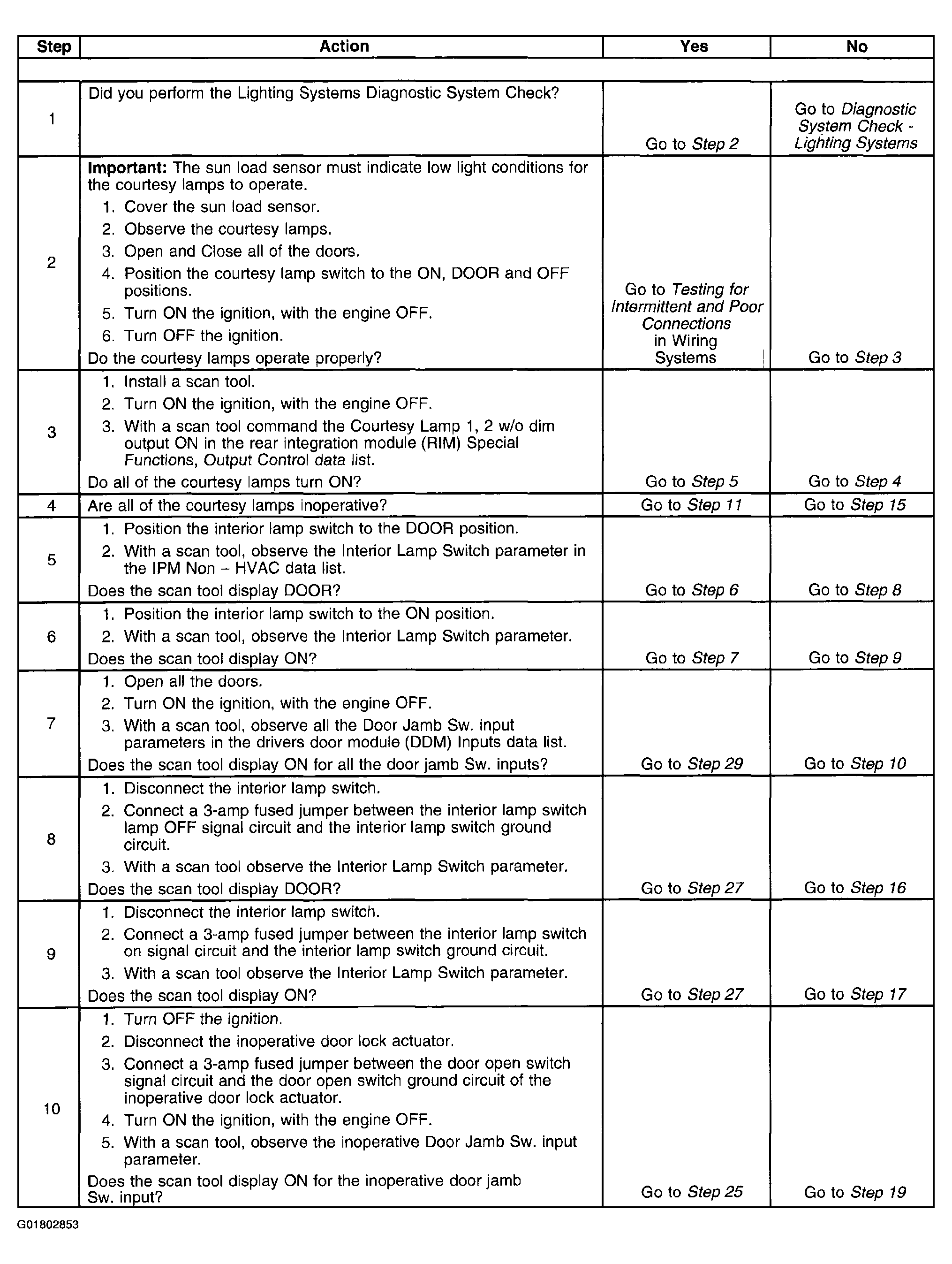

Fig 3: Courtesy Lamps Inoperative (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

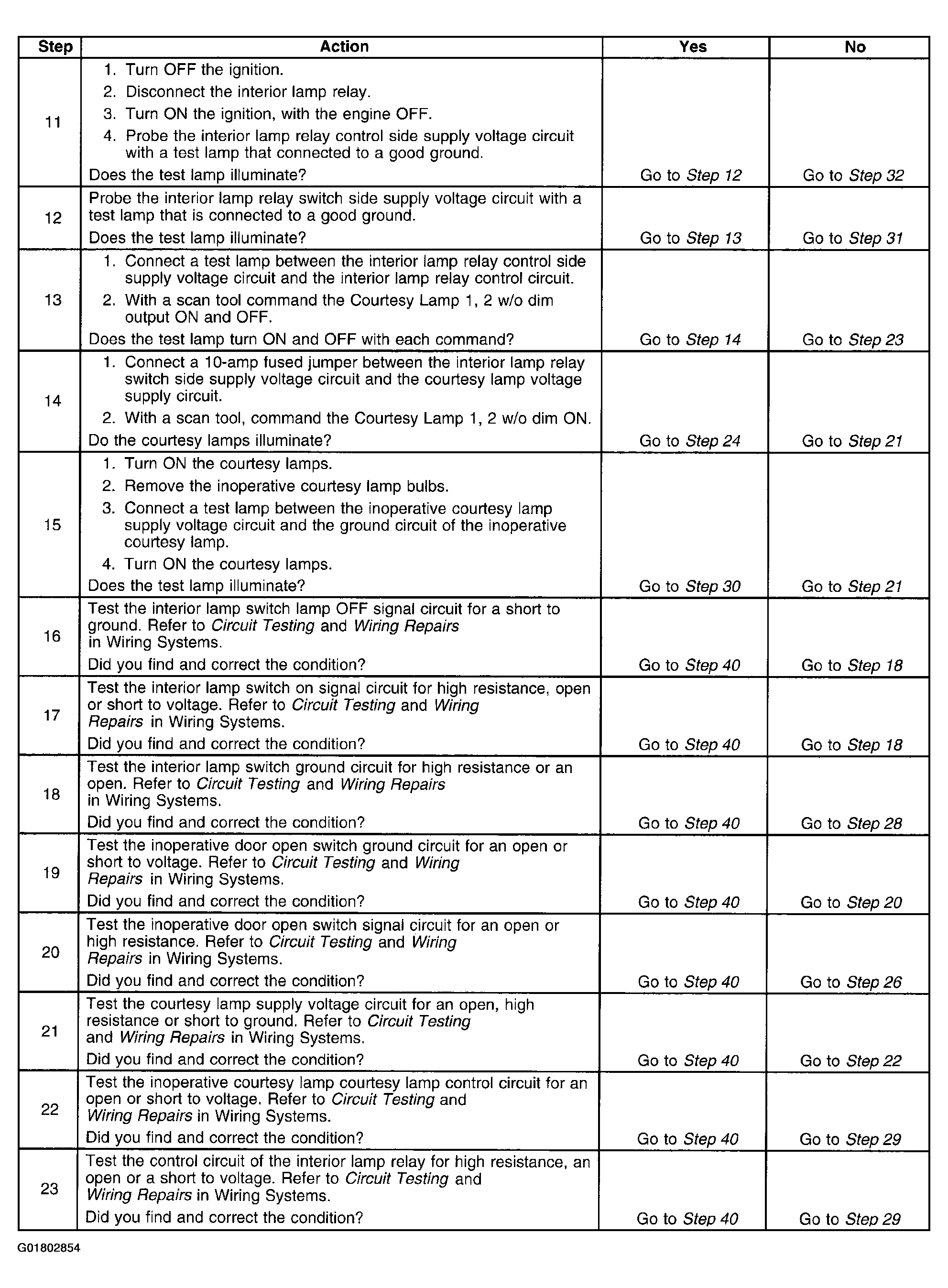

Fig 4: Courtesy Lamps Inoperative (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
