Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the upper trim panel to the center pillar.

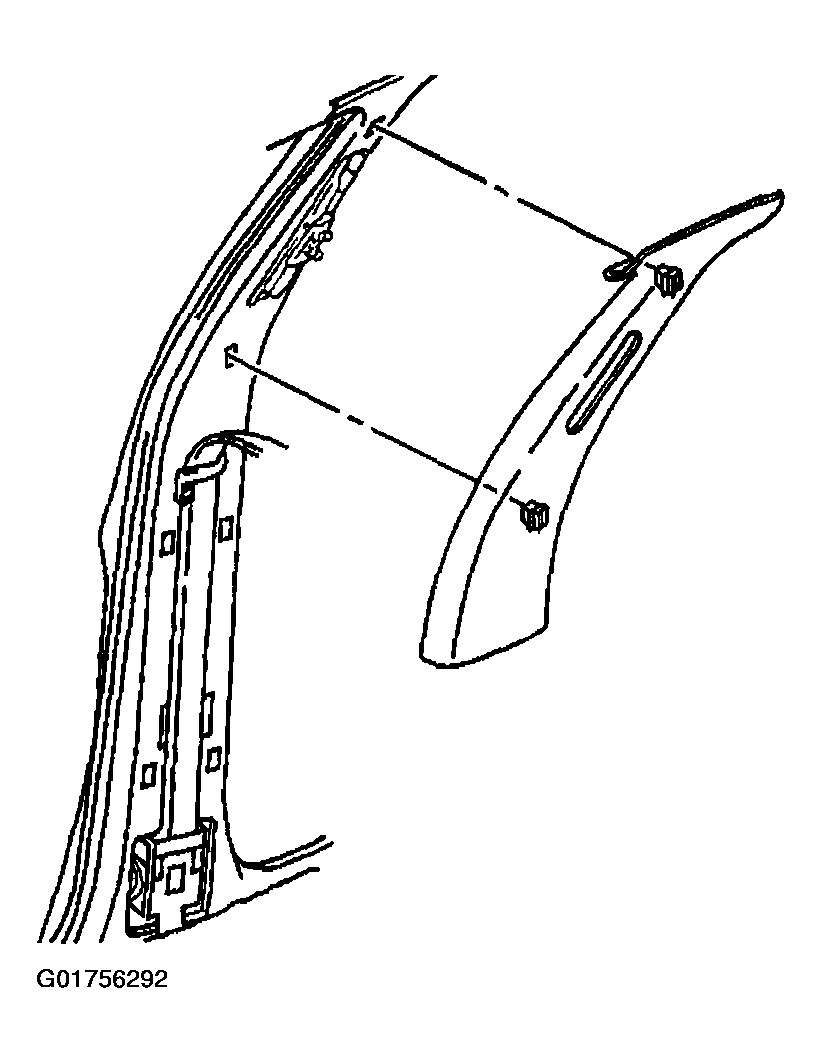

    2. Fig 1: Identifying Upper Center Pillar Trim Panel
    G01756292Courtesy of GENERAL MOTORS CORP.
  2. Push firmly on the trim panel in order to seat the retainers.
  3. Install the guide loop attachment for the upper seat belt to the adjuster bracket.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the attachment nut for the seat belt guide loop. Tighten the nut to 42 N.m (31 lb ft).
  5. Install the door weatherstrip to the center pillar.
