Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical cable connector for the chmsl lamp.
  2. Slide the panel rearward to engage the integral hook in the retaining hole.

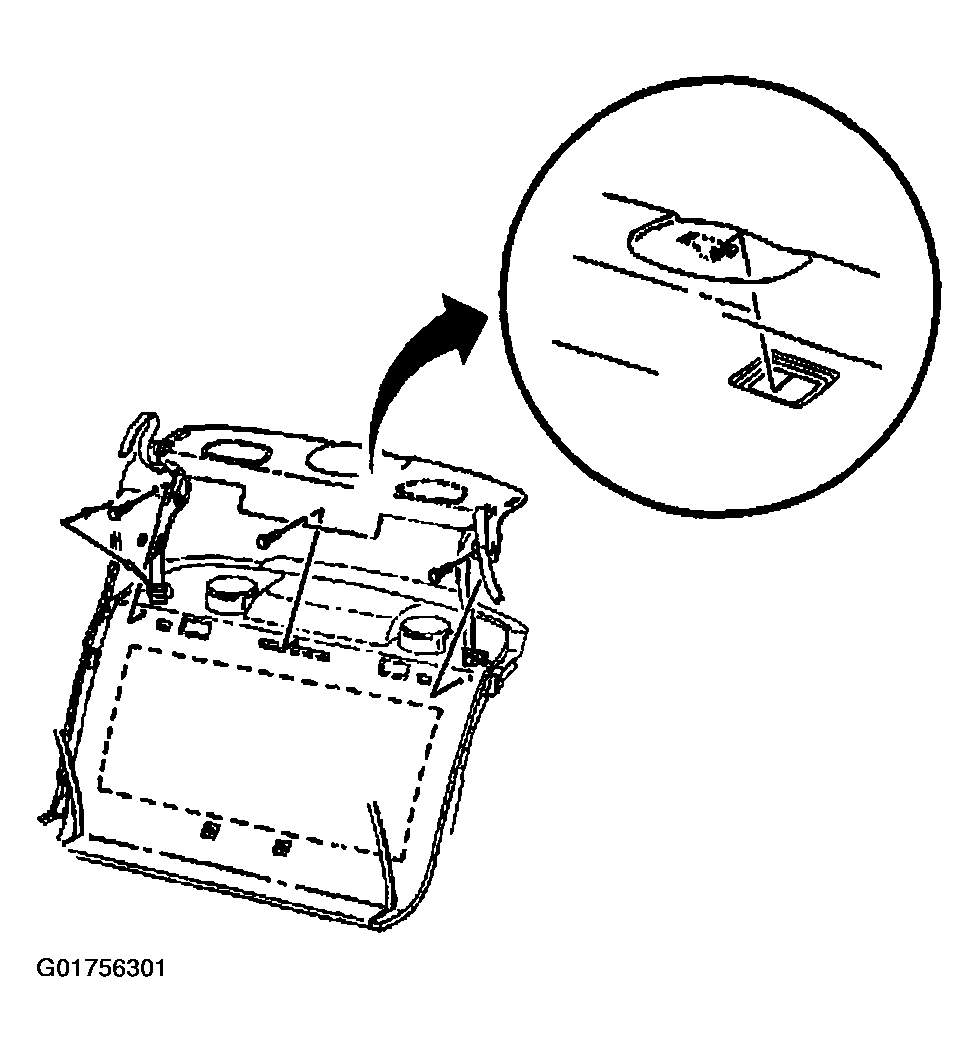

    3. Fig 1: Identifying Rear Window Shelf Trim Panel
    G01756301Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical cable connector for the high mount stoplamp, located on the passenger end of panel.
  4. Lift the panel and route the seat belts through the slots in the trim panel.
  5. Install the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper .
  6. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) .
  7. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  8. From inside the rear compartment, install the bulb in the high mount stoplamp.
    Fig 2: Identifying High Mount Stoplamp Bulb
    G01756302Courtesy of GENERAL MOTORS CORP.
