Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) .
  2. Remove the door weatherstrip from the pinch weld flange to expose the upper quarter trim panel.
  3. Use J 38778  to disengage the push-in retainers and remove the trim panel.

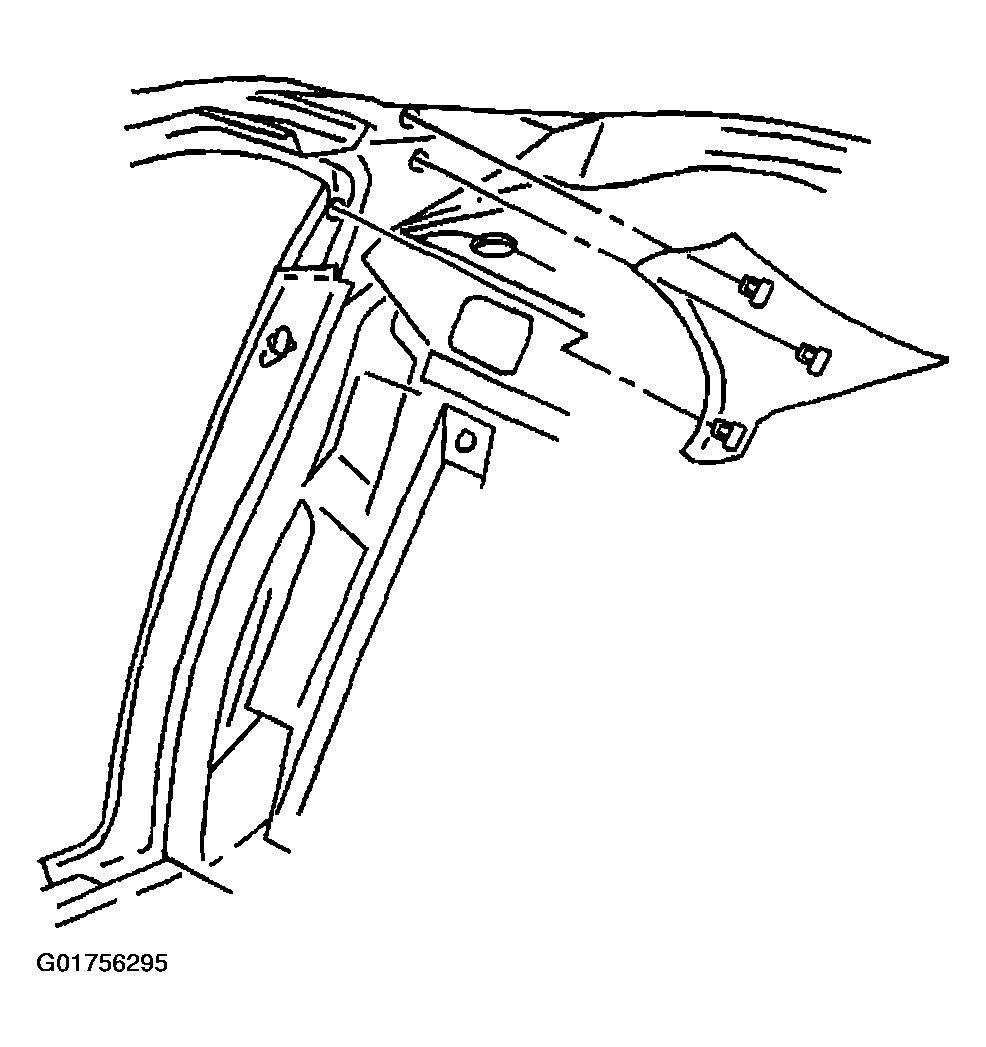

    Fig 1: Identifying Rear Quarter Upper Trim Panel
    G01756295Courtesy of GENERAL MOTORS CORP.
