Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the upper quarter trim panel into place.

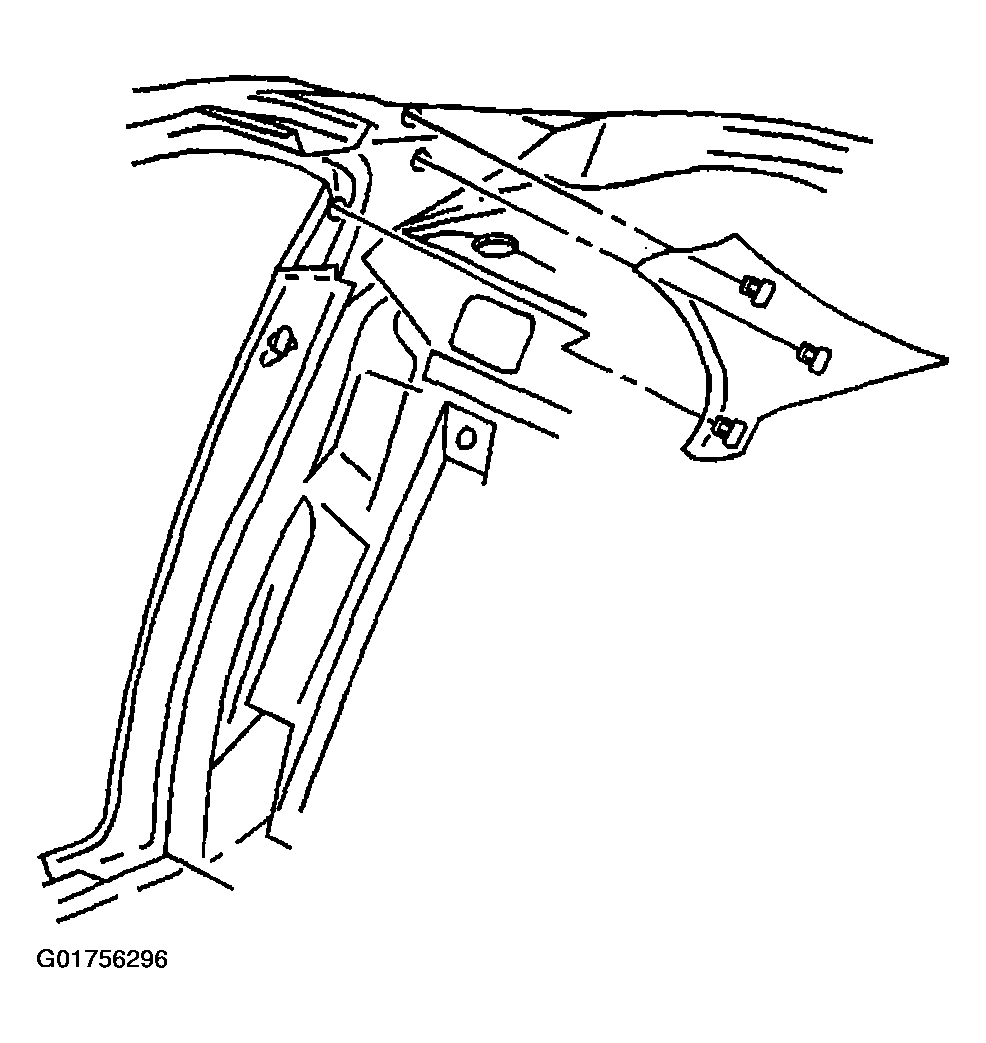

    2. Fig 1: Identifying Rear Quarter Upper Trim Panel
    G01756296Courtesy of GENERAL MOTORS CORP.
  2. Install the push-in retainers to secure the trim panel.
  3. Install the door weatherstrip onto the pinch weld flange.
  4. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) .
