Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the push-in retainers in order to install the quarter lower trim.

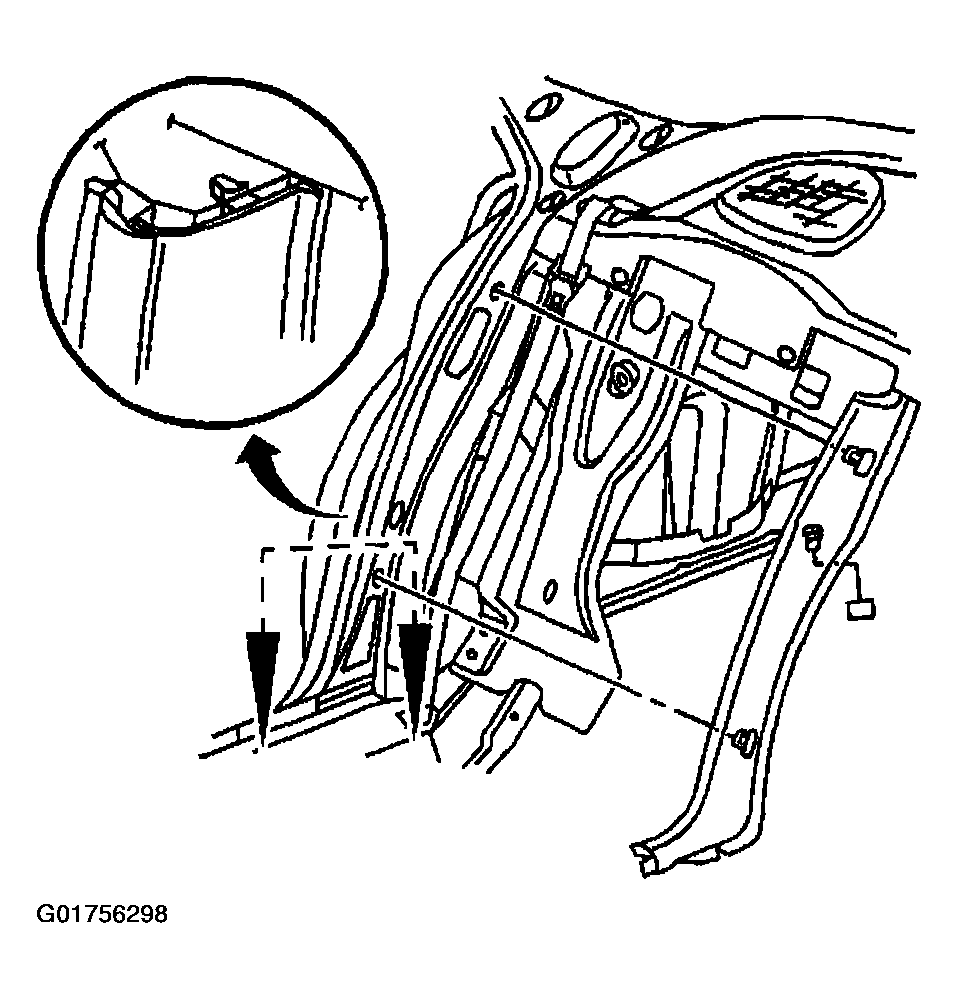

    2. Fig 1: Identifying Rear Quarter Lower Trim Panel
    G01756298Courtesy of GENERAL MOTORS CORP.
  2. Install the door weatherstrip.
  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) .
  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  5. Install the rear carpet retainer. Refer to Carpet Retainer Replacement - Rear .
